Ricoh M0A0 - Paper Feed and Separation; Paper Lift

7.Detailed Descriptions
350
SW 1
SW 2
SW 3
Paper Size
5
L
L
H
Letter SEF
6
L
H
H
-
7
H
L
H
Half Letter SEF
8
H
H
H
Paper cassette is not set.
Paper Feed and Separation

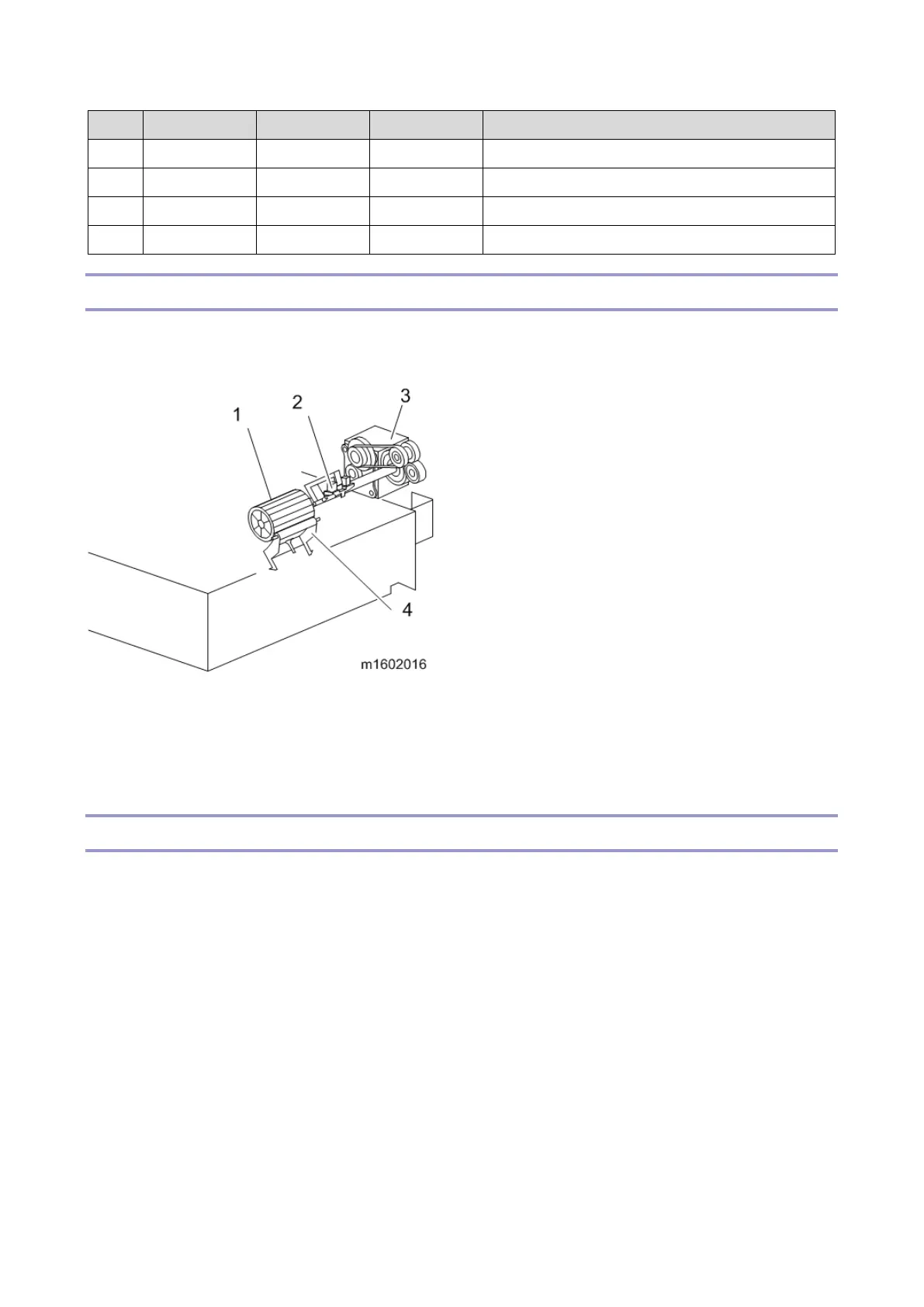

The paper feed unit uses the feed roller and friction pad method to separate paper. The friction pad method makes it
possible to feed only one sheet at a time (the top sheet) by the friction between the friction pad and the paper.
1. Paper feed roller
2. Paper feed sensor
3. Paper feed motor
4. Friction pad
Paper Lift
Pushing in the paper cassette makes the tray arms rise along the grooves in the sloping guide and then the bottom plate
is lifted by the springs.
