4.Replacement and Adjustment
130

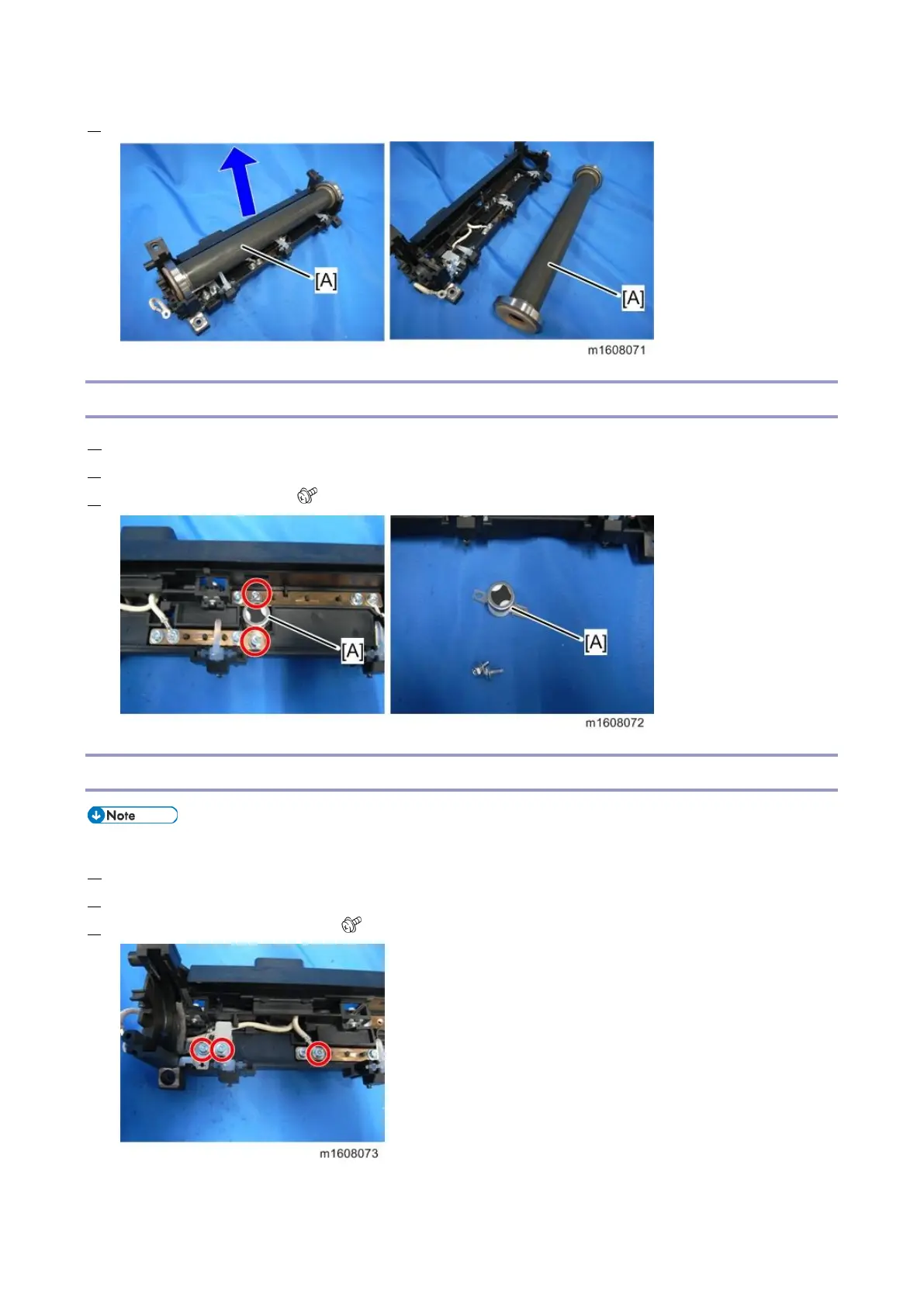

6. Remove the hot roller [A].
Thermostat
1. Separate the fusing unit into the upper and lower fusing units. (Upper Fusing Unit, Lower Fusing Unit)
2. Remove the hot roller (Fusing Lamp, Hot Roller)
3. Remove the thermostat [A]. ( x2)
Thermistor
The thermistor is integrated with the drawer connector.
1. Separate the fusing unit into the upper and lower fusing units. (Upper Fusing Unit, Lower Fusing Unit)
2. Remove the hot roller. (Fusing Lamp, Hot Roller)
3. Remove the screws of the harness. ( x3)
To Next Page
