Ricoh M0A0 - Bypass Feed Roller

4.Replacement and Adjustment
135

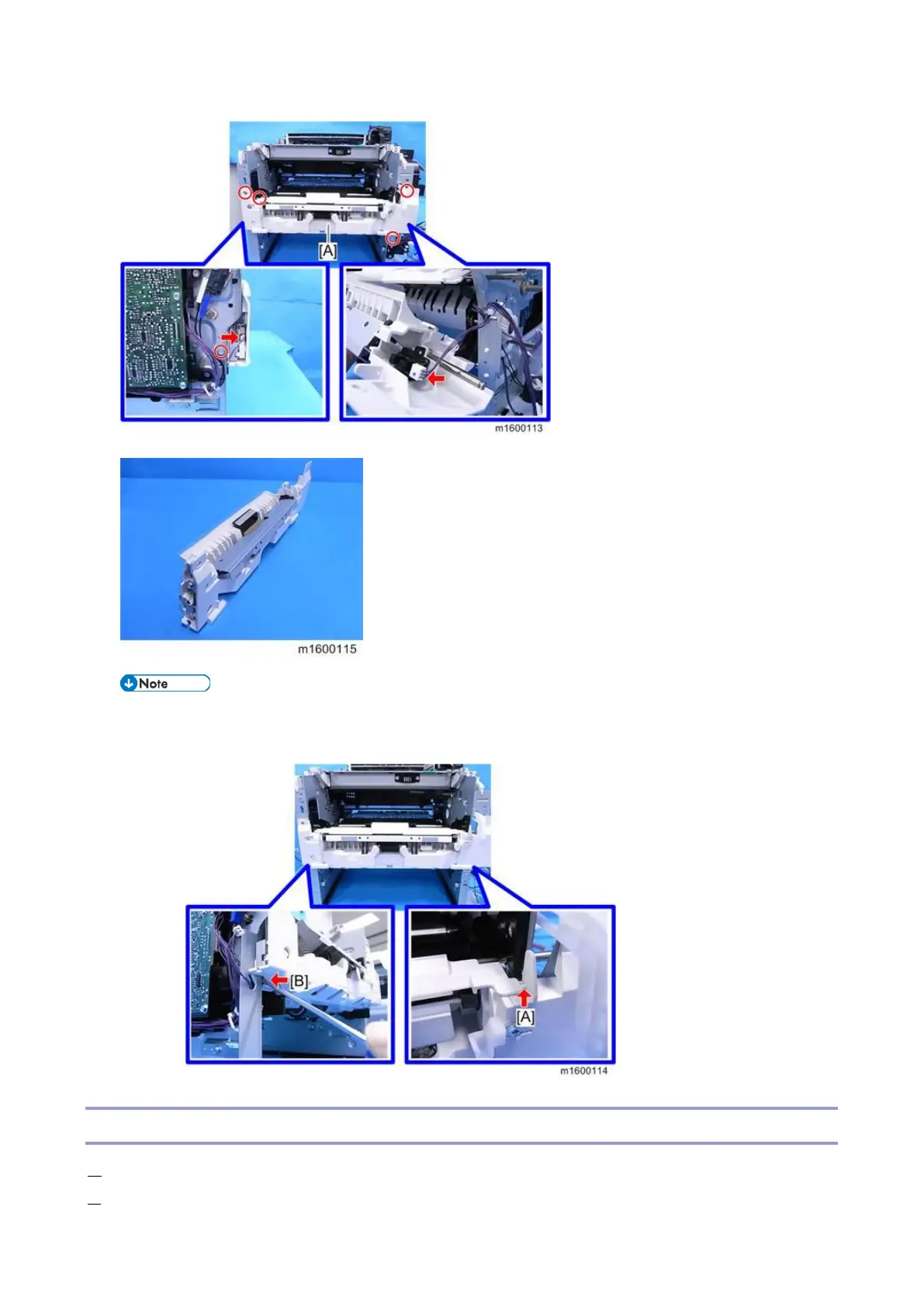

 Release the hook [A] and then insert a flat-blade screwdriver into the space [B] to detach the bypass
feed unit from the machine.
Bypass Feed Roller
1. Remove the bypass feed unit. (Bypass Feed Unit)
2. Remove the gear unit. (Gear Unit)
