4.Replacement and Adjustment
133

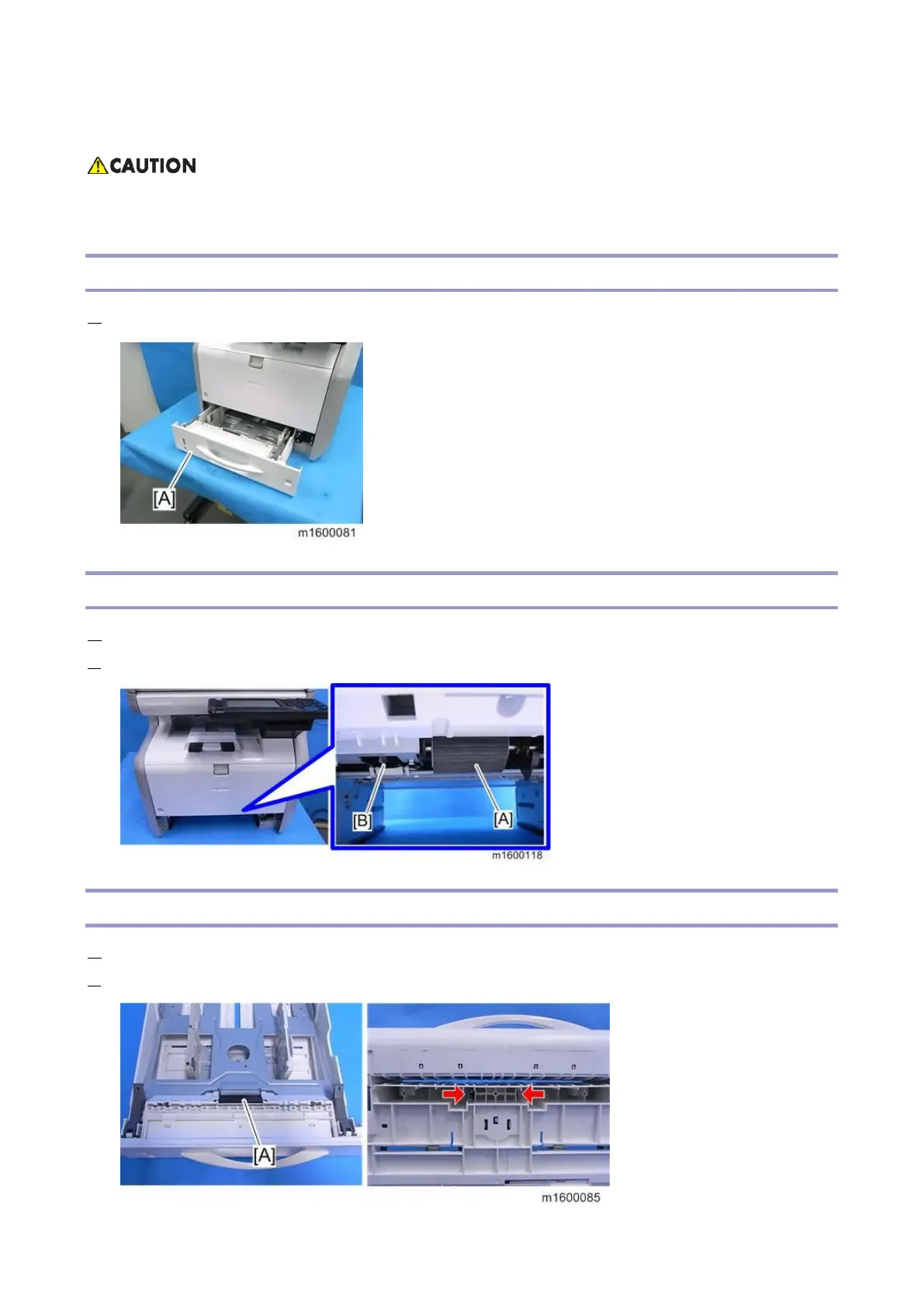

Paper Feed
ï‚· Turn OFF the main power and disconnect the power cord before you start any of the procedures in this
section.
Paper Feed Tray
1. Remove the paper feed tray [A].
Paper Feed Roller
1. Remove the paper feed tray. (Paper Feed Tray)
2. Slide the lever [B] to the left to detach the paper feed roller [A].
Friction Pad
1. Remove the paper feed tray. (Paper Feed Tray)
2. Release the hooks on the bottom of the paper feed tray to detach the friction pad [A].
To Next Page
