4.Replacement and Adjustment
132

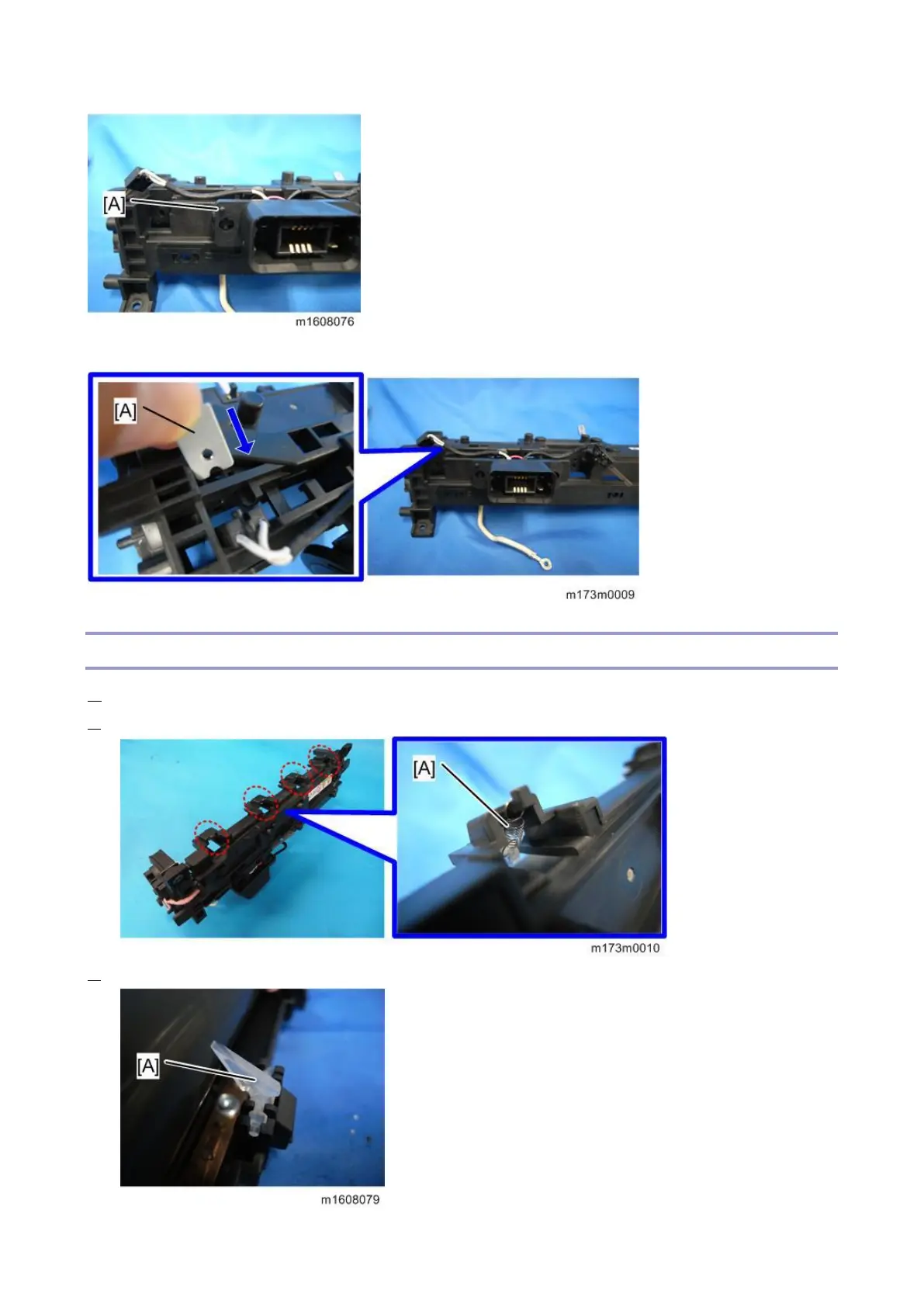

Insert the flat nut [A]. Be sure not to drop them inside the fusing unit during disassembly.
Hot Roller Stripper
1. Separate the fusing unit into the upper and lower fusing units. (Upper Fusing Unit, Lower Fusing Unit)
2. Remove the spring [A].
3. Remove the hot roller stripper [A].
