4.Replacement and Adjustment
143
x 1)

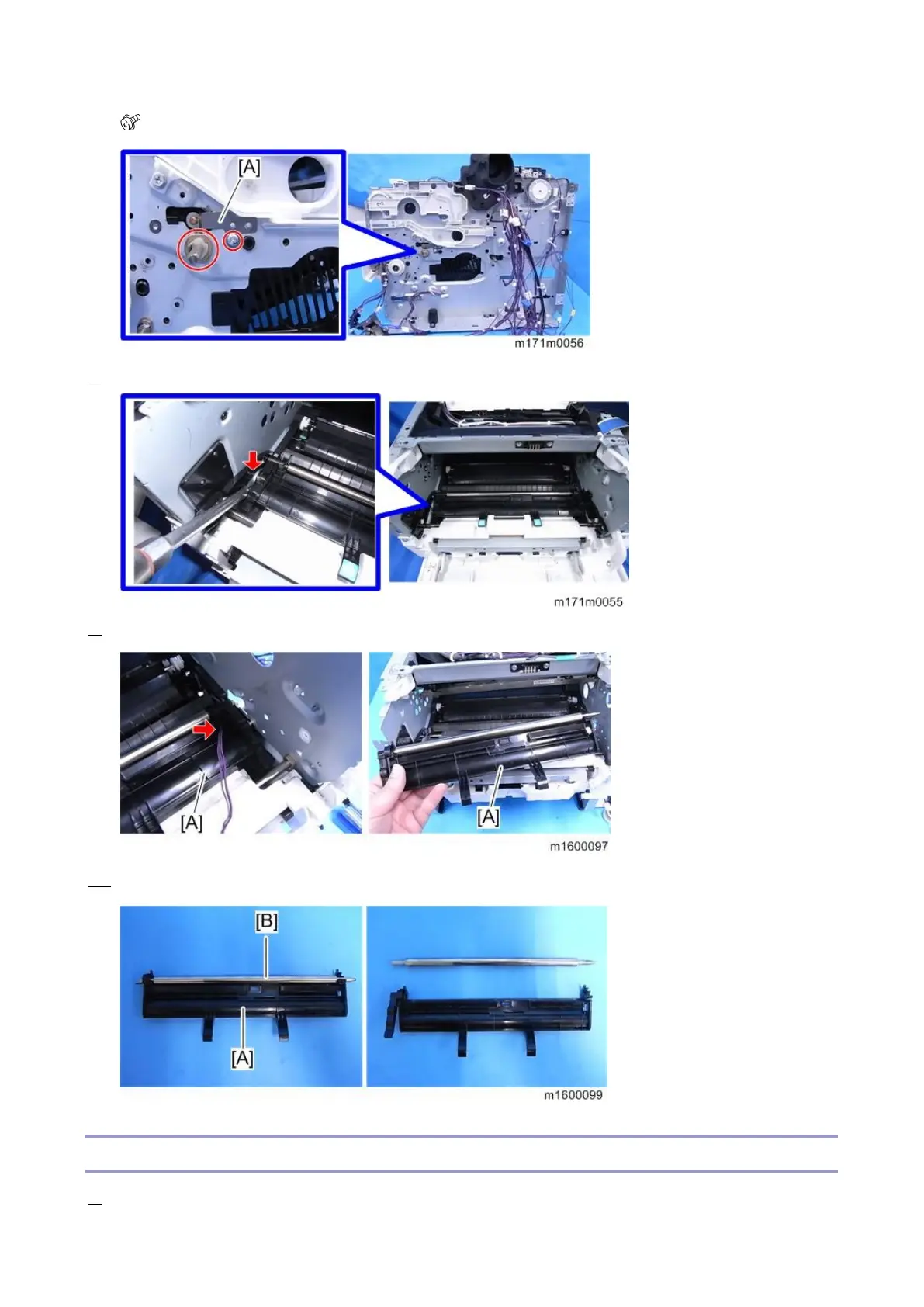

8. Insert a flathead screwdriver into the gap on the left of the registration roller guide to release the protruding part.
9. Release the harness from the guide [A] to detach the guide [A] with the registration roller (driven).
10. Detach the registration roller (driven) [B] from the guide [A].
Registration Roller (Drive)
1. Remove the registration roller (Driven). (Registration Roller (Driven))
