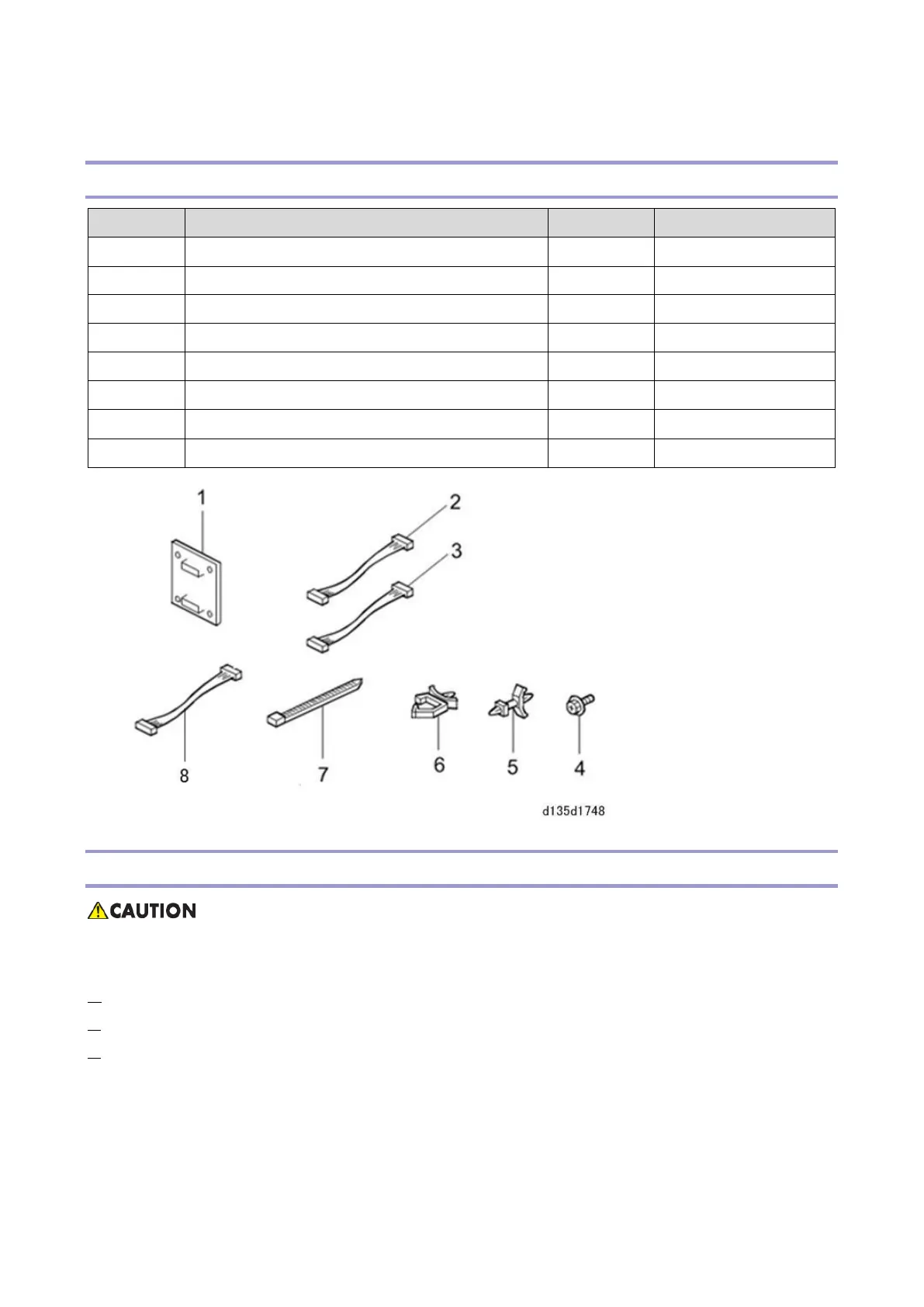

Optional Counter Interface Unit Type M12 (B870-21)
Accessory Check
No.
Description
Q’ty
Remarks
1
PCB: MKB
1
2
Harness (MB to MKB)
1
Not Used
3
Harness (MB to MKB)
1
Not Used
4
Screws M3x6
4
5
Standoffs
4
6
Clamp
1
7
Lock band
1
8
Relay harness
1
Not Used
Installation procedure
 When installing this option, turn OFF the main power and unplug the power cord from the wall socket. If you
install without turning OFF the main power, an electric shock or a malfunction may occur.
1. Open the front cover.
2. Open the rear cover.
3. Remove the right cover [A].
