7.Detailed Descriptions
316

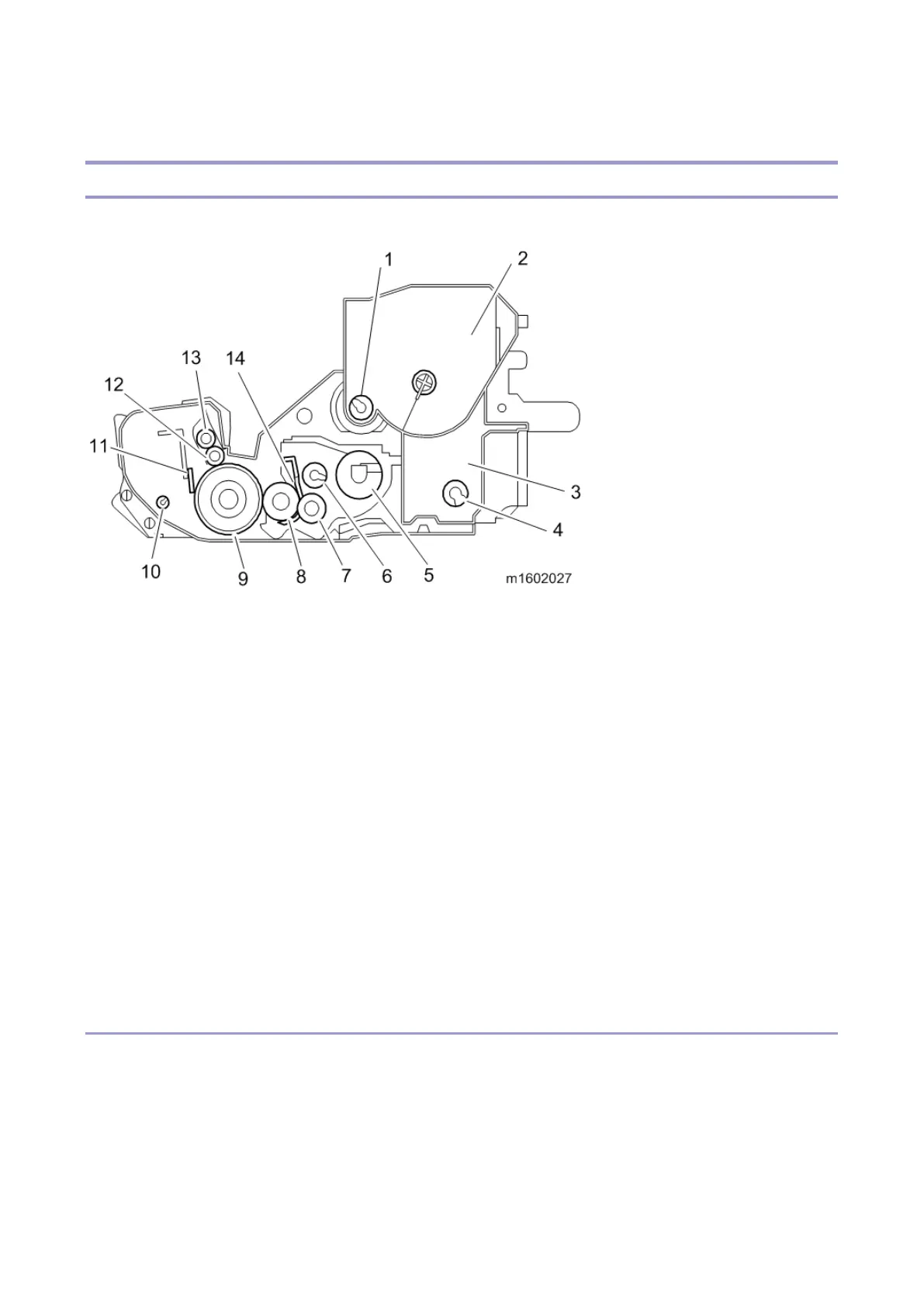

Toner Cartridge, PCDU (Photo Conductor Development Unit)
Mechanism
The toner cartridge is mounted on the PCDU installed in the machine, but can be detached from the machine on its own.
1. Toner Supply coil
2. Toner box
3. Used toner collection box
4. Used toner transport coil
5. 1st Mixing coil
6. 2nd Mixing coil
7. Toner Supply Roller
8. Development Roller
9. OPC
10. Waste Toner Collection coil
11. OPC Cleaning Blade
12. Charge Roller
13. Charge Cleaning Roller
14. Development Blade
Separating the Toner Cartridge and PCDU
ï‚· The toner cartridge can be detached from the machine either on its own or together with the PCDU.
