7.Detailed Descriptions
309
7. Detailed Descriptions
Overview

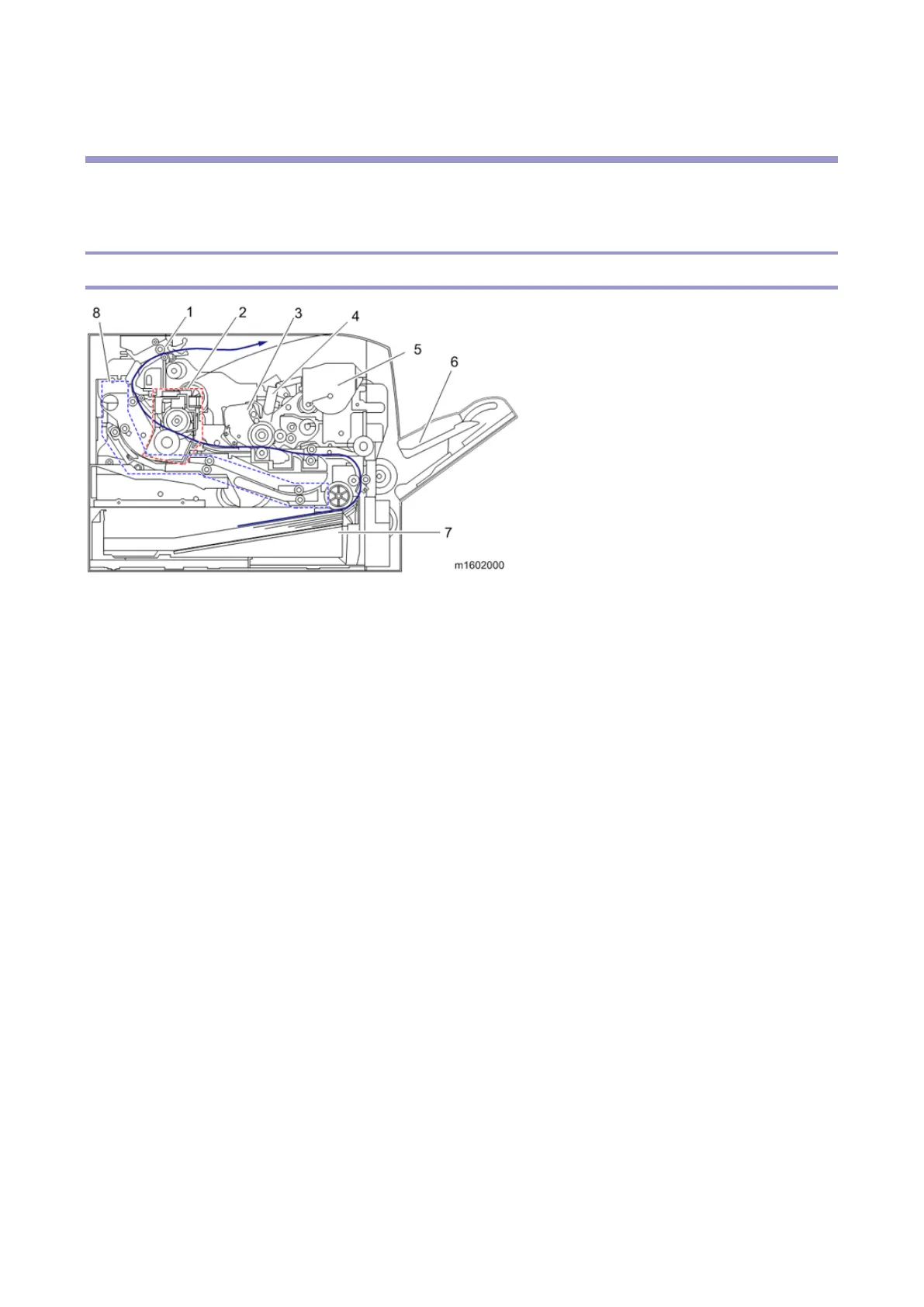

Mechanical Component Layout
1. Exit / Switchback unit
2. Fusing unit
3. PCDU
4. LED head
5. Toner cartridge
6. Bypass feed tray
7. Paper feed unit
8. Duplex paper path
