4.Replacement and Adjustment
172

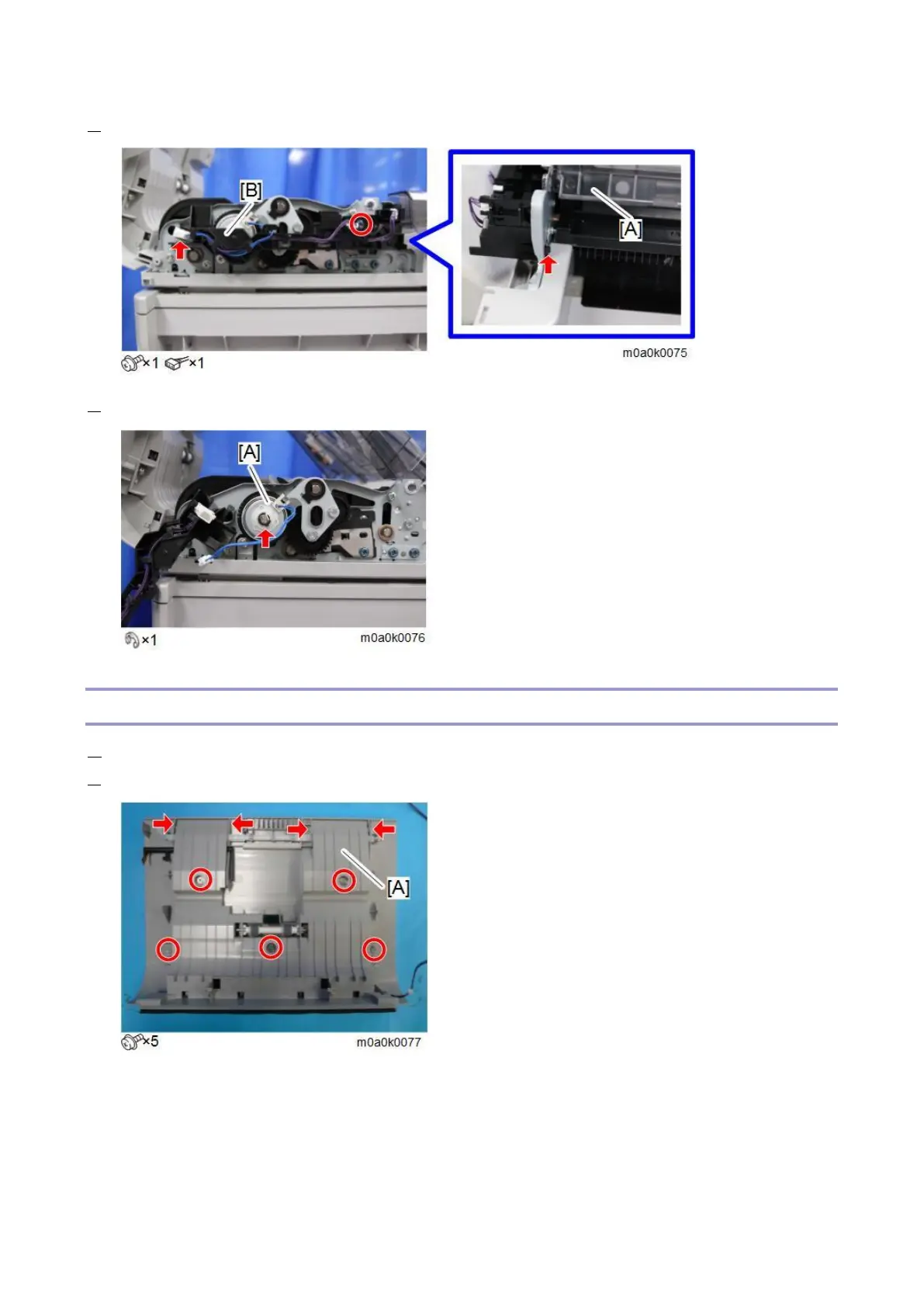

2. Release the hook with the original tray [A] swinging up and remove the harness guide [B].
3. Remove the SPDF feed clutch [A].
SPDF Feed Sensor
1. Remove the SPDF top cover. (SPDF Top Cover)
2. Remove the SPDF feed sensor bracket [A].
