5.System Main
tenance
218
RF
U U
pdat
ing
the F
irmw
ar
e

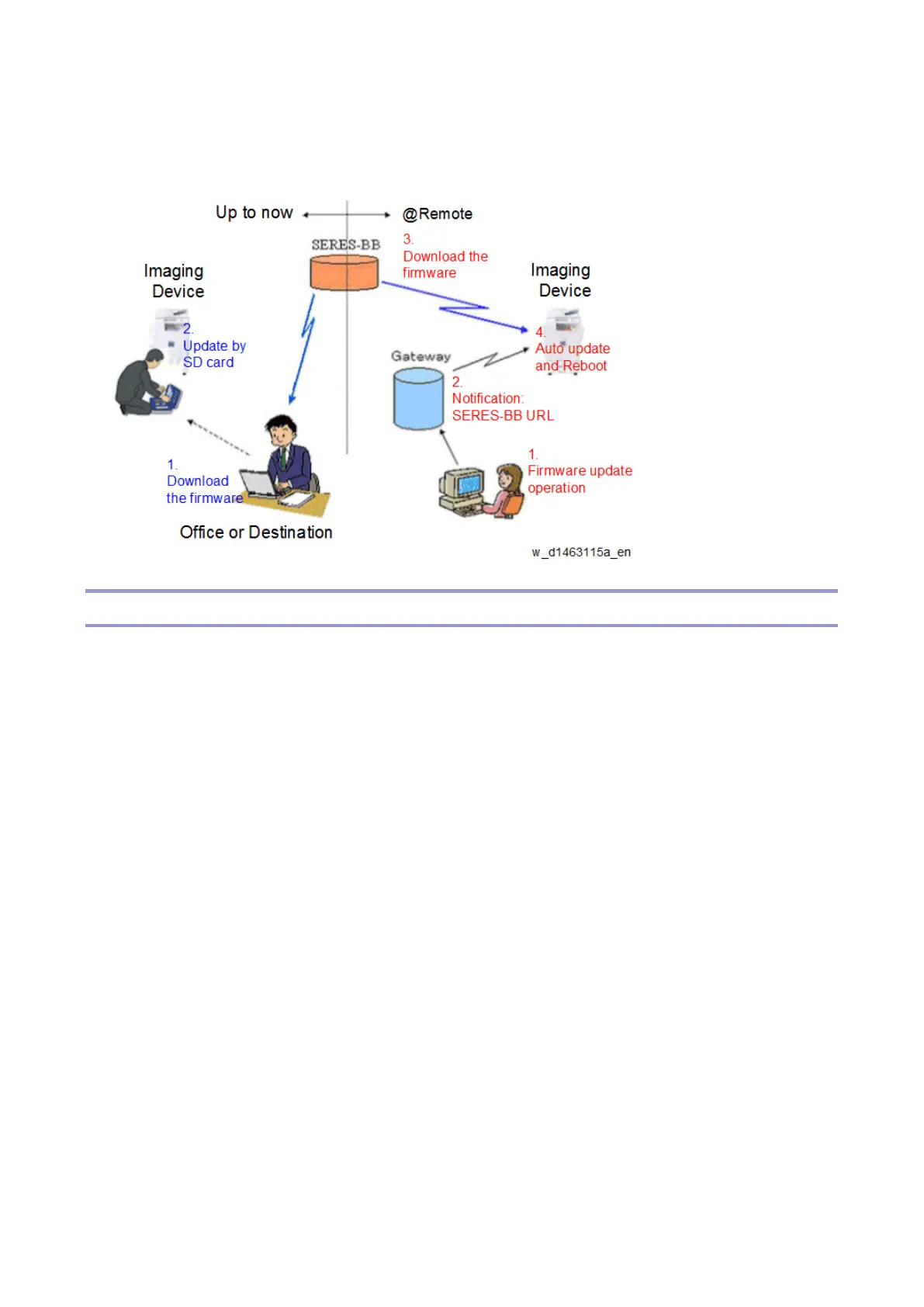

In this ma
chine, soft
ware can
be updated by
rem
ote contr
ol using @Remot
e.
RFU Performable Condition
RFU is perform
able for a de
vice which me
ets the foll
owing conditi
ons.
1.
The custom
er consents to t
he use of RF
U.
2.
The devise i
s connected t
o a net
work via T
CP/IP for @
Remote.
