Ricoh M0A0 - Paper Size Detection

1.Detailed Descriptions
3
Paper Size Detection

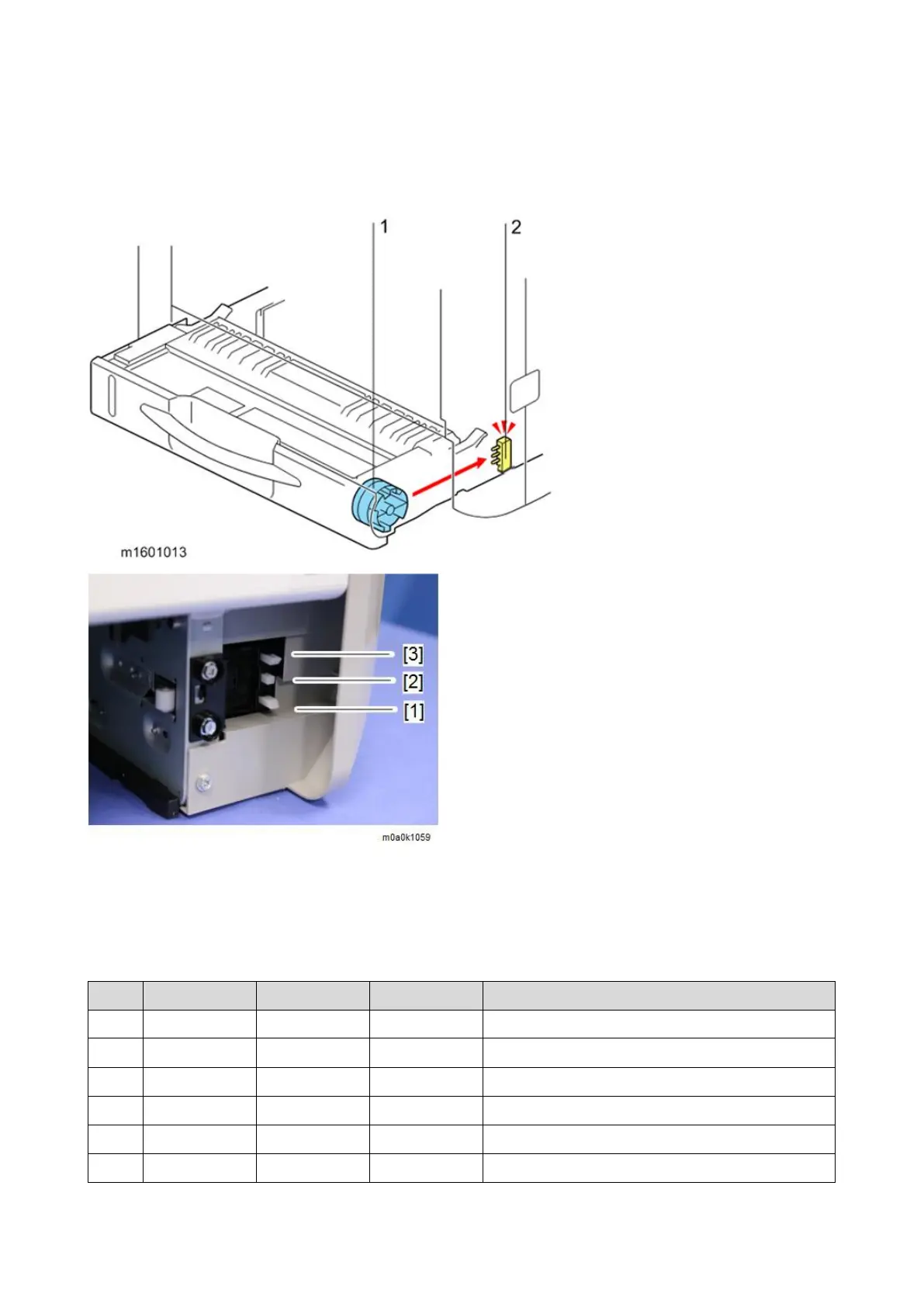

The paper size is detected by a combination of three switches built into the Paper Size Switch [2]. The switches are
operated by the Paper Size Dial [1] located on the right side of the Paper Feed Tray.
1. SW1
2. SW2
3. SW3
Paper size detection combinations (L: Switch is pressed)
SW 1
SW 2
SW 3
Paper Size
1
L
L
L
A4 SEF
2
L
H
L
A5 SEF
3
H
L
L
A6 LEF
4
H
H
L
Legal SEF
5
L
L
H
Letter SEF
6
L
H
H
-
