4.Replacement and Adjustment
141

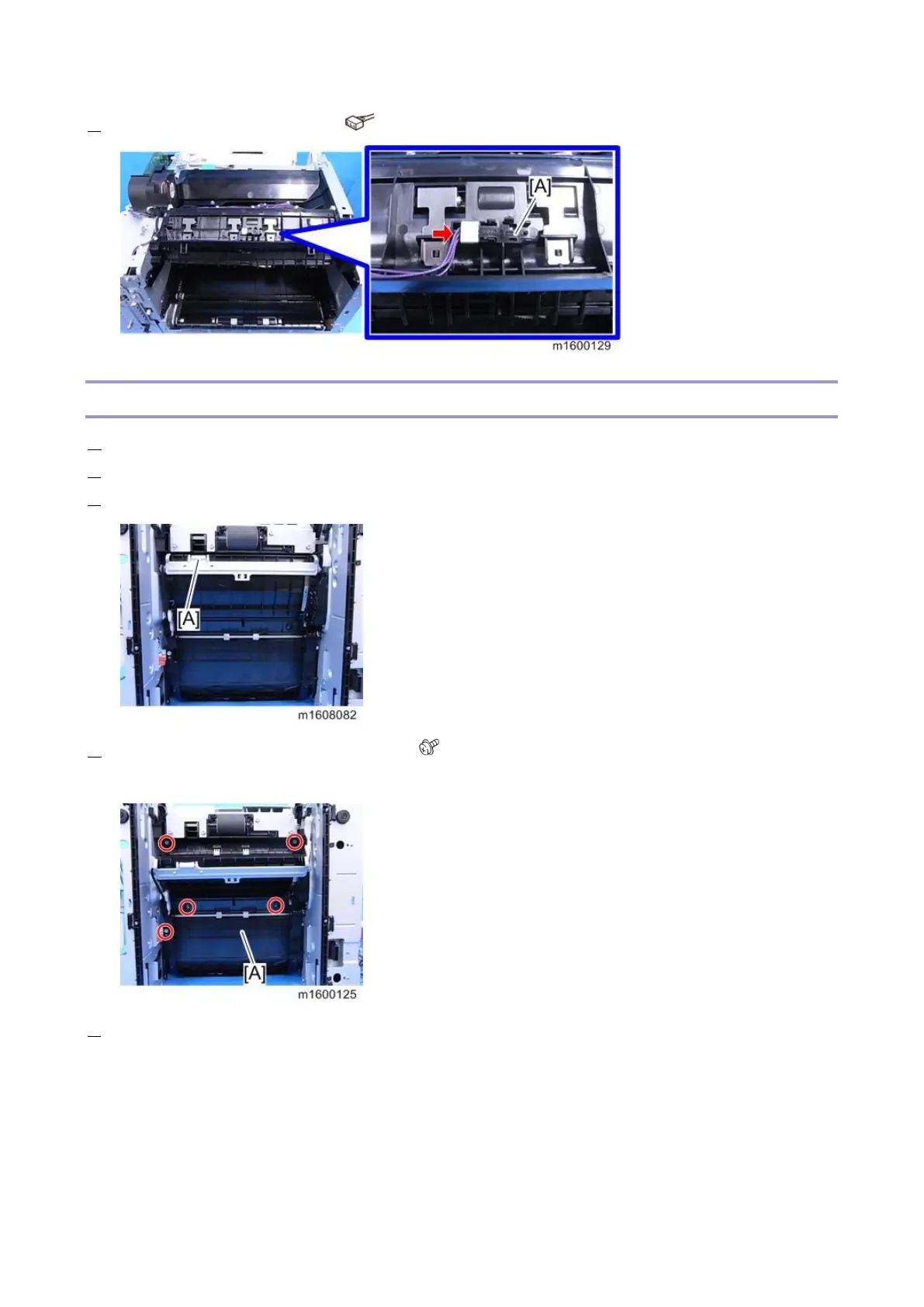

2. Remove the duplex exit sensor [A]. ( x1, Hook)
Duplex Entrance Sensor
1. Remove the PSU. (PSU)
2. Remove the duplex clutch. (Duplex Clutch)
3. Open the duplex exit guide plate [A].
4. Remove the screws circled in the picture below ( x5).
[A]: Duplex exit guide unit
5. Release the link to remove the duplex exit guide unit [A].
To Next Page
