4.Replacement and Adjustment
129

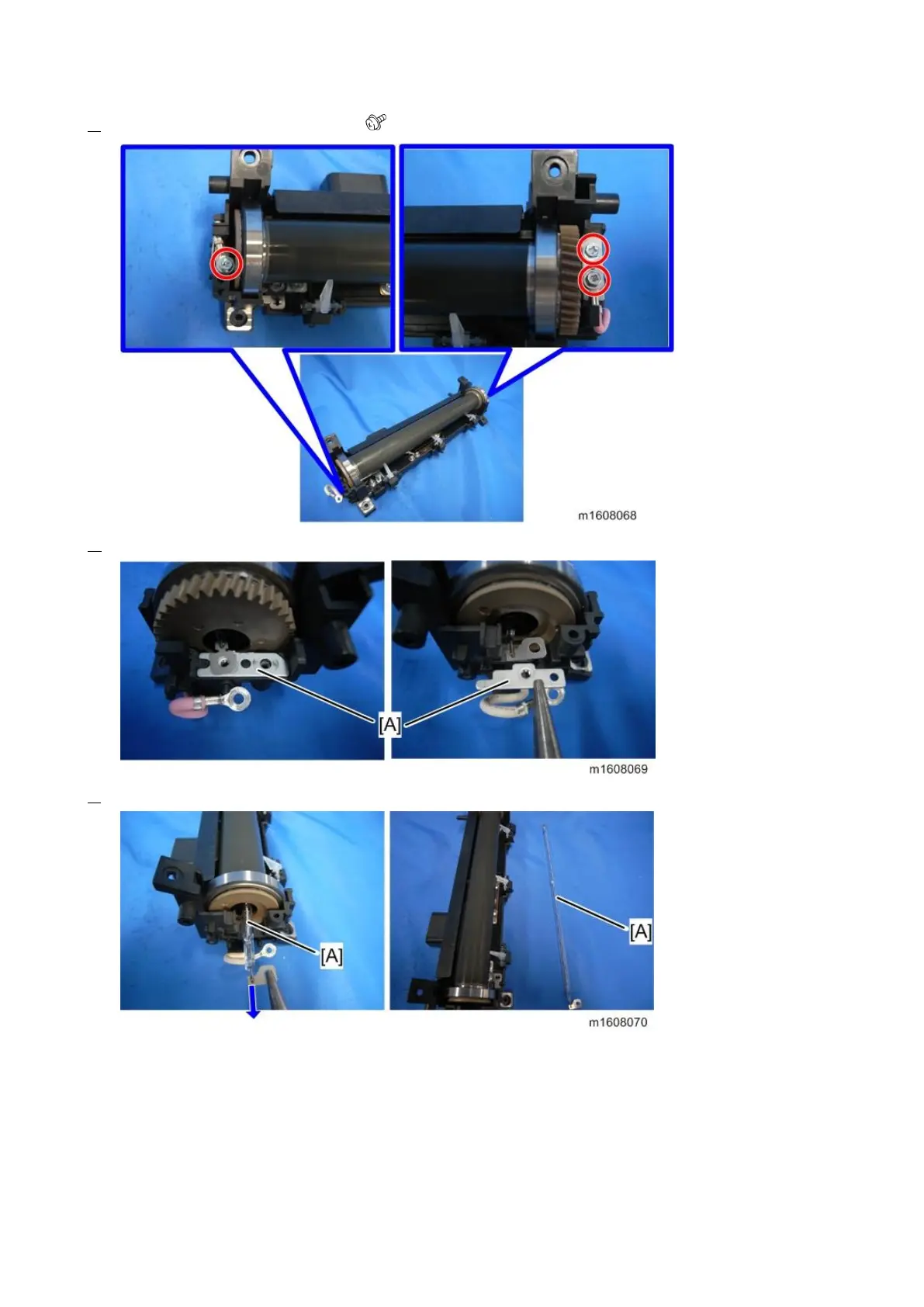

3. Remove the screws of the fusing lamp. ( x3)
4. Remove the two brackets [A].
5. Remove the fusing lamp [A].
