7.Detailed Descriptions
322
New PCDU Detection, and Set Detection

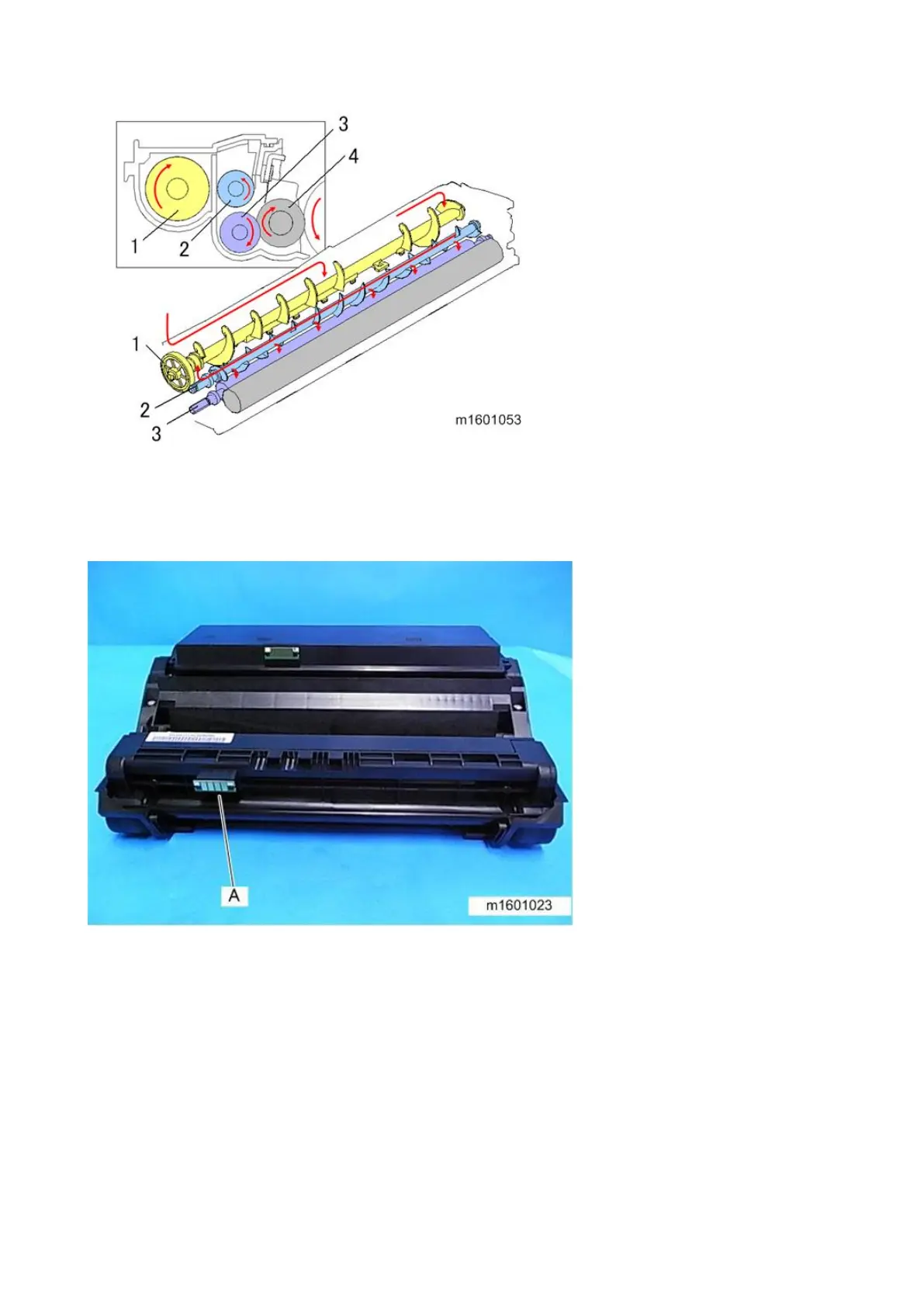

When a PCDU is placed in the machine, the ID chip [A] is read. In this way, the machine detects when a new PCDU is
inserted.
Used Toner Transport
Used toner is collected from the PCDU by the waste toner collection coil and transferred via the used toner transport
path [1] on the side of the PCDU to the toner cartridge’s used toner collection box.
