7.Detailed Descriptions
335
3. Thermistor (Edge)
4. Fusing Lamp
5. Hot roller
6. Pressure roller
7. Hot roller strippers
Thermal Control Mechanism
After machine power is turned on, the fusing lamp operates until the temperature reaches pre-rotation temperature.
Then, the hot roller rotates to heat its surface evenly and raise fusing temperature to the reload temperature.
The hot roller lamp stays on until the thermistor detects the Standby Mode [B] temperature. The lamp turns on/off to
keep this temperature. To print, the temperature is increased to the Print Mode [C] temperature.
After printing, the hot roller rotates (pre-rotation) to prevent overshooting after printing.

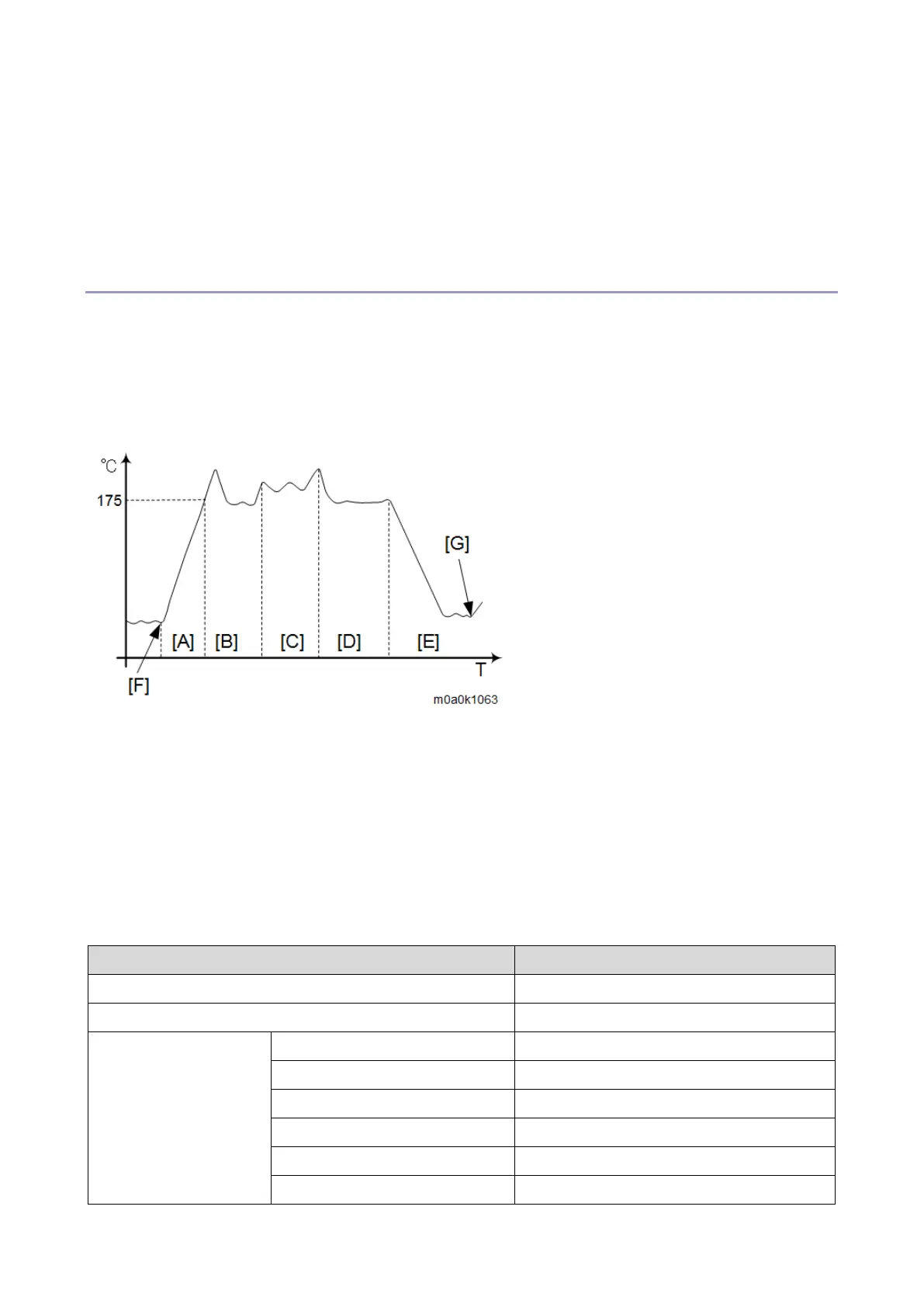

[A] : Warming Up Mode
[B] : Standby Mode
[C] : Print Mode
[D] : Standby Mode
[E] : Energy Saver Mode
[F] : Power On
[G] : Job In
The fusing temperature in each mode is as follows:
To Next Page
