Ricoh M0A0 - Page 78

2.Installation
66

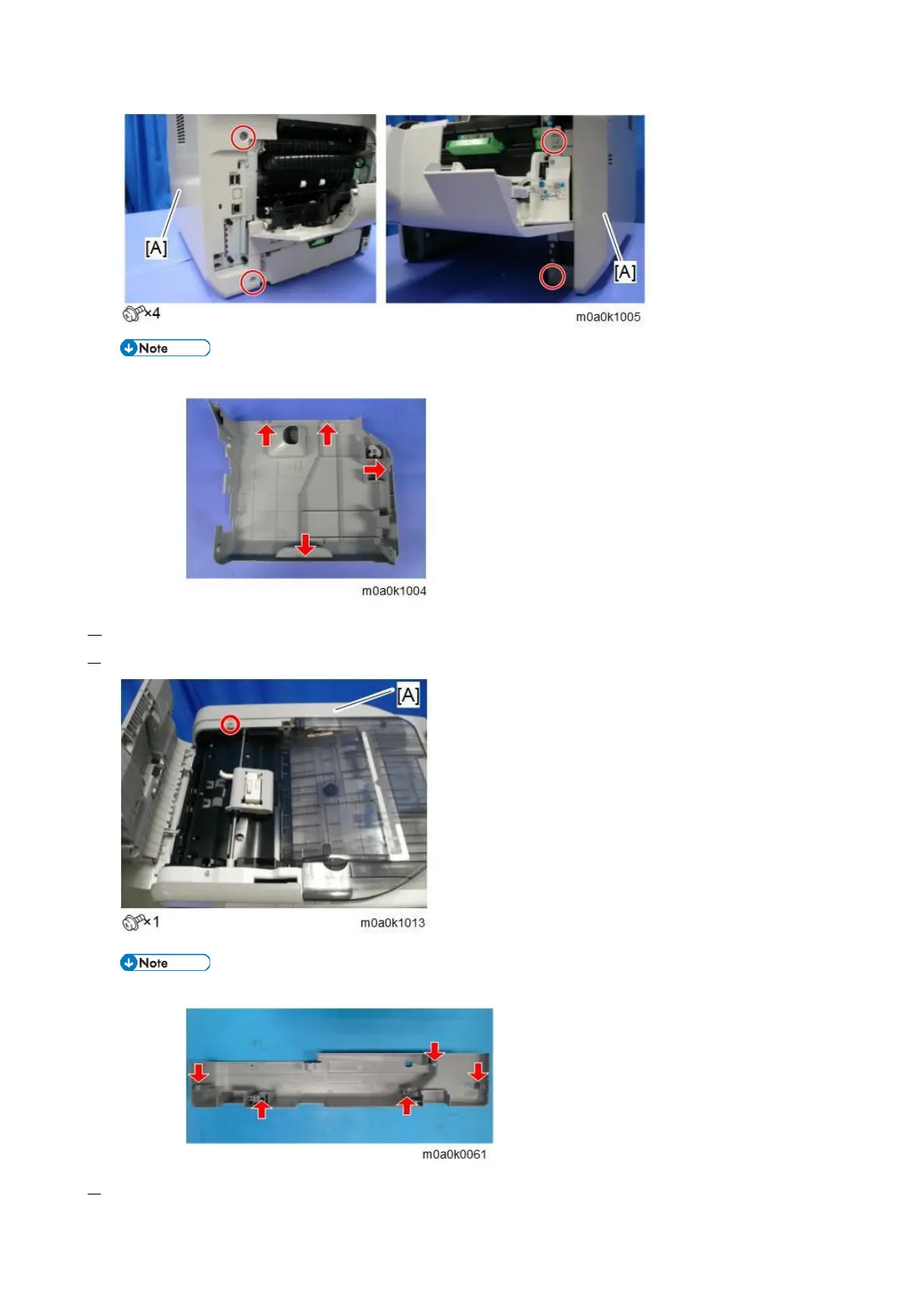

 There are four tabs on the back of the right cover.
4. Open the SPDF top cover.
5. Remove the SPDF rear cover [A].
 There are five tabs on the back of the SPDF rear cover.
6. Remove the operation panel upper cover [A] and operation panel lower cover [B].
