CMU Software Update and Version Management
1100.4903.12 1.19 E-10

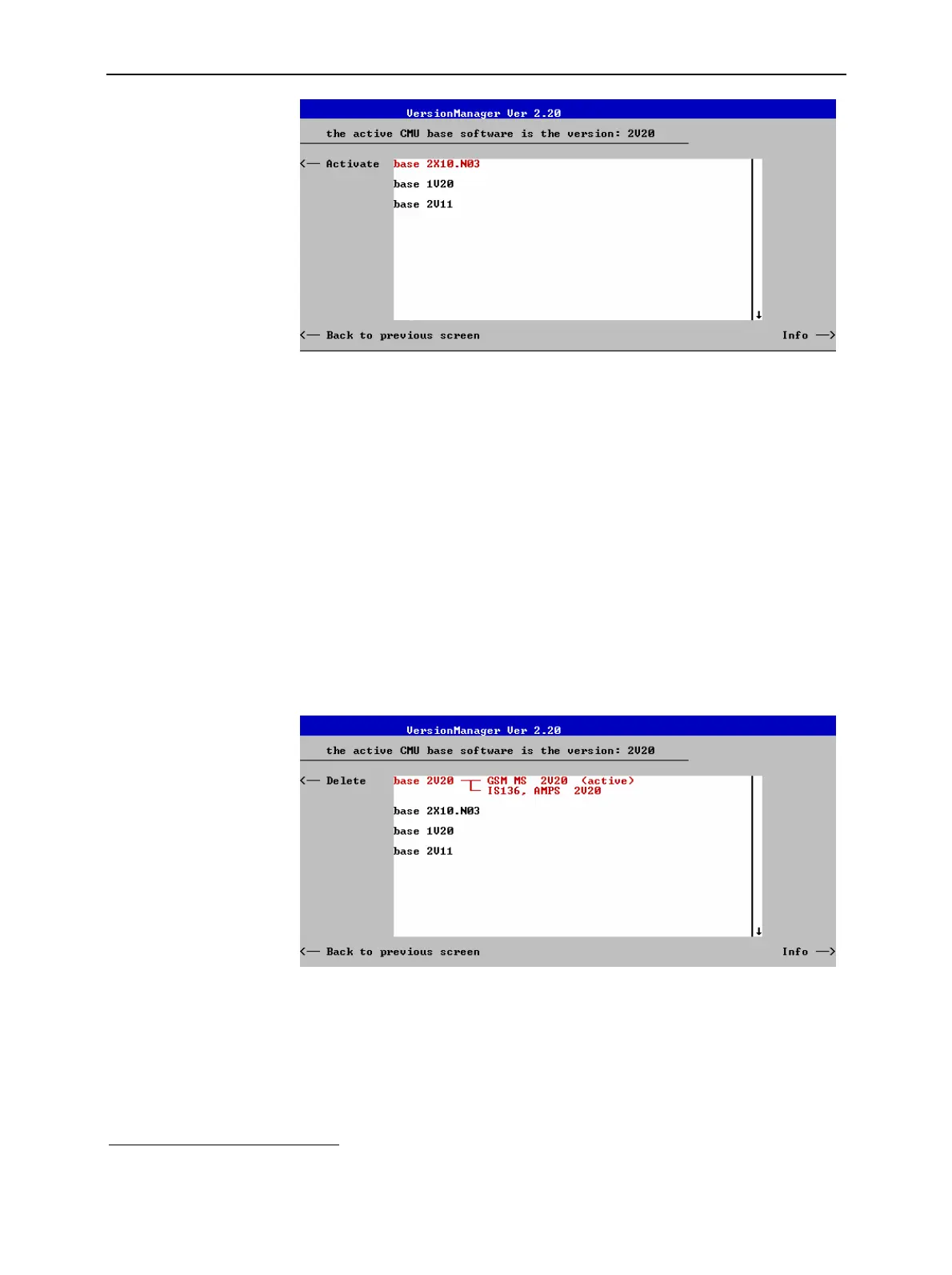

Each entry in the list corresponds to a firmware configuration consisting of
exactly one CMU base software version (top level on the left side) plus a set
of associated options
1
(network tests, second level). The version to be
activated is displayed in red color on top of the list. To select another
version, the list can be scrolled using the rotary knob or the cursor keys.
Activate Activate the current firmware configuration.
Back to previous screen Close the current screen and go back to the main
screen. This option is identical in all
VersionManager submenus.
Info Open the Info screen associated to the current
screen; see Info on p. 1.25. This option is
identical in all VersionManager submenus.
Delete software
(optional)
Delete software opens a list of all firmware configurations stored on the
CMU hard disk. The dialog can be operated as explained above; see
Activate software. The last firmware configuration can not be deleted, so this
function is not available if the hard disk contains only a single configuration.
Delete Delete the current firmware configuration.
If the active firmware configuration is deleted, the CMU asks which of the
remaining versions shall be activated:
1
Several related options may be displayed in a single line. These combinations of options can be installed together and will be simply referred to as "options" through the
remainder of this section.
