ENGINE
M6040, M7040, WSM
1-S45

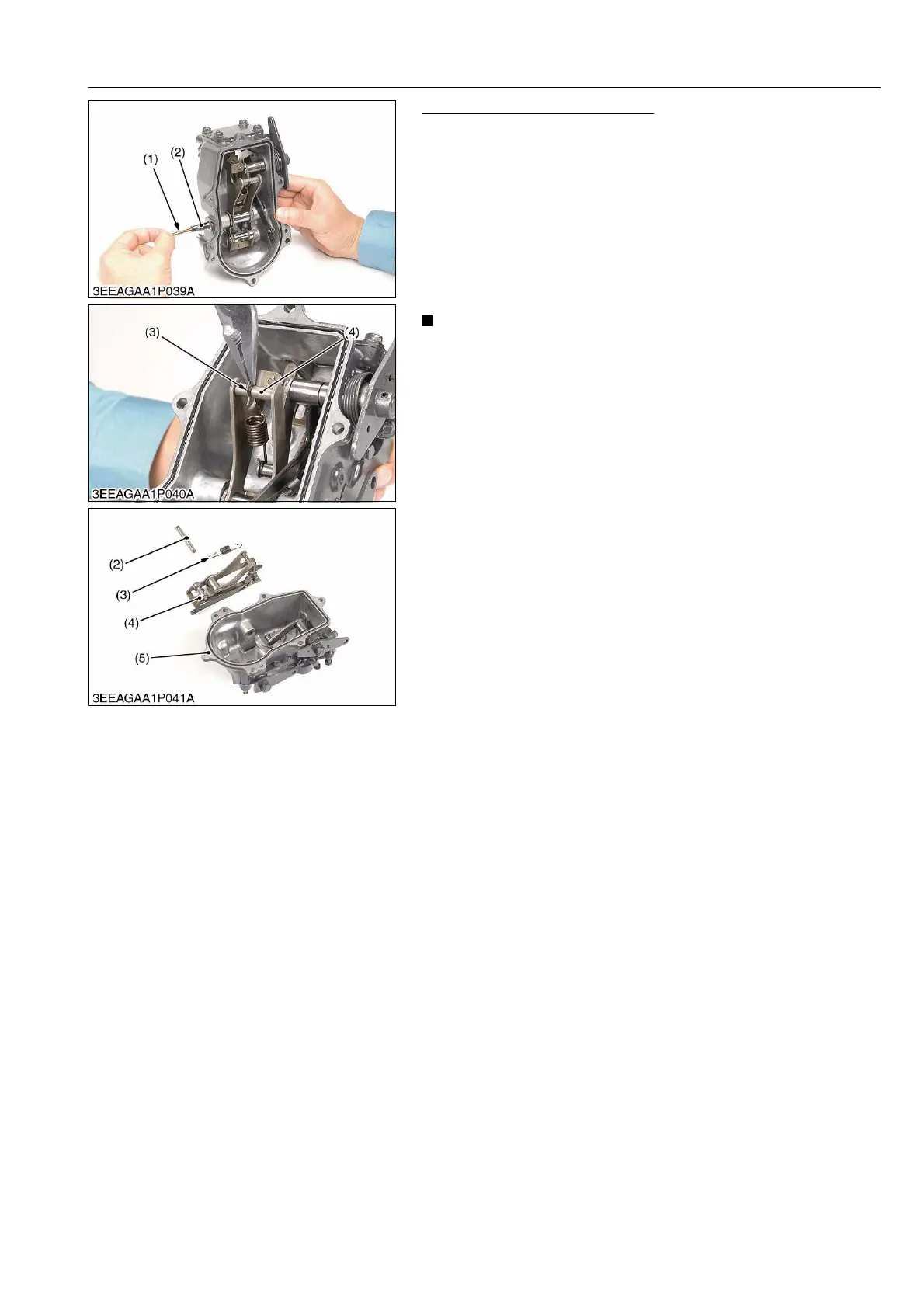

Governor Fork Lever Assembly
1. Pull off the governor fork lever shaft (2) with the extra bolt (Dia:
4 mm, Pitch: 0.7 mm, Length: more than 25 mm) (1).
2. Unhook the governor spring (3) at the governor fork lever (4)
side.
3. Remove the governor fork lever assembly from the governor
housing (5).
(When reassembling)
• After reassembling the governor housing assembly, check the
movement of the governor fork lever assembly, the speed
control lever and the stop lever.
• When assembling the inside parts, put the oil on each
inside part slightly.
• Be careful not to deform the start spring.
9Y1210143ENS0065US0
(1) Extra Bolt
(Dia: 4 mm, Pitch: 0.7 mm,
Length: more than 25 mm)
(2) Governor Fork Lever Shaft
(3) Governor Spring
(4) Governor Fork Lever
(5) Governor Housing
