ENGINE
M6040, M7040, WSM
1-S54

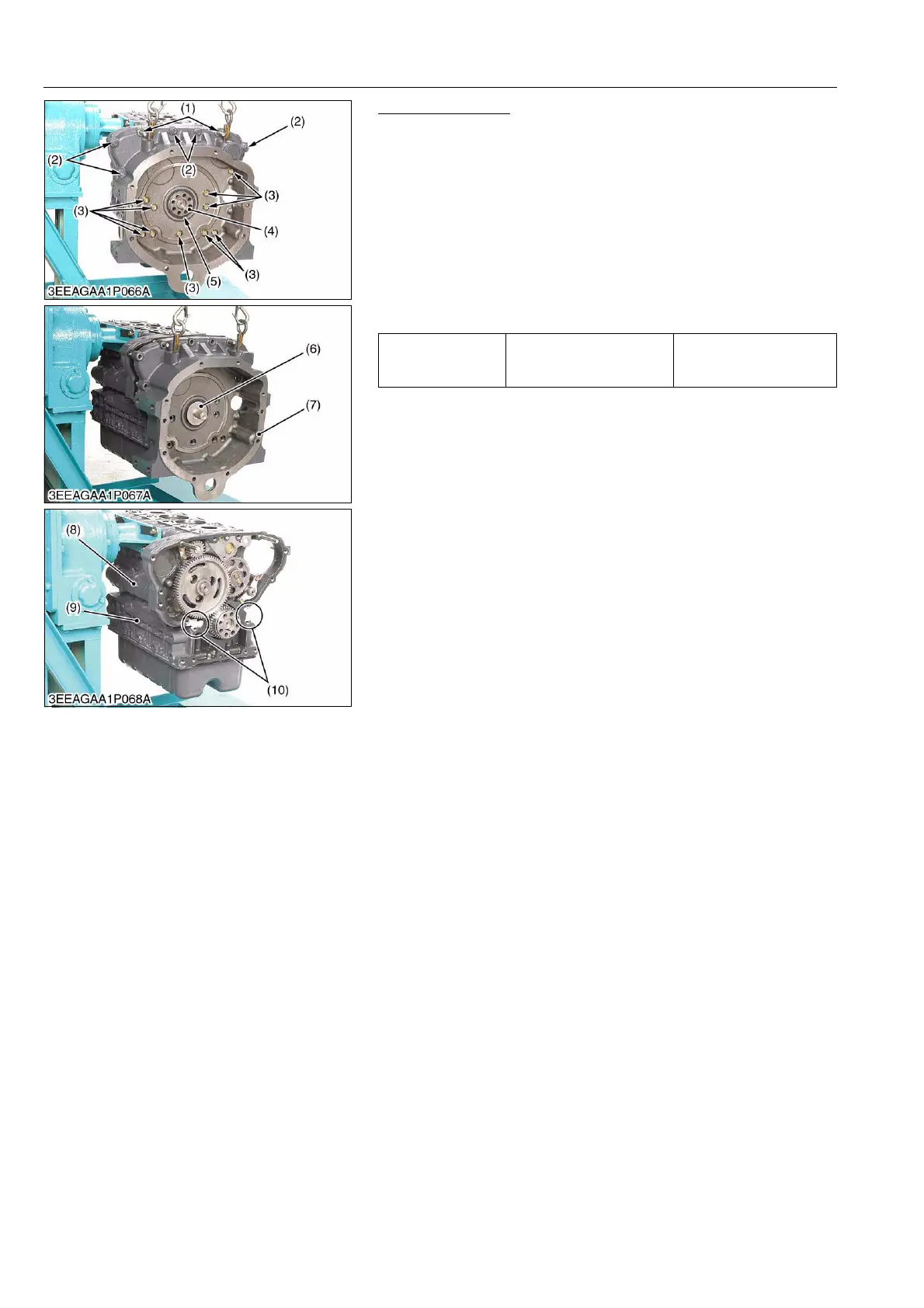

Flywheel Housing
1. Remove the outside flywheel housing mounting screws (2).
2. Set the flywheel housing guide screws (1).
3. Remove the inside flywheel housing mounting screws (3).
4. Remove the flywheel housing.
(When reassembling)
• Apply engine oil to the flywheel housing oil seal (5).
• Set the flywheel housing guide jig (6) to the crankshaft gear (4).
(See page G-47.)
• Apply a liquid gasket (Three Bond 1217D) to the seam between
crankcase 1 and crankcase 2.
• Assemble the adhesive-applied parts within ten minutes.
9Y1210143ENS0077US0
Tightening torque
Flywheel housing mounting
screw
103 to 117 N·m
10.5 to 12.0 kgf·m
76.0 to 86.7 lbf·ft
(1) Flywheel Housing Guide Screw
(2) Flywheel Housing Mounting Screw
(Outside)
(3) Flywheel Housing Mounting Screw
(Inside)
(4) Crankshaft Gear
(5) Oil Seal
(6) Jig
(7) Flywheel Housing
(8) Crankcase 1
(9) Crankcase 2
(10) Liquid Gasket
KiSC issued 07, 2012 A
