CLUTCH
M6040, M7040, WSM
2-S9

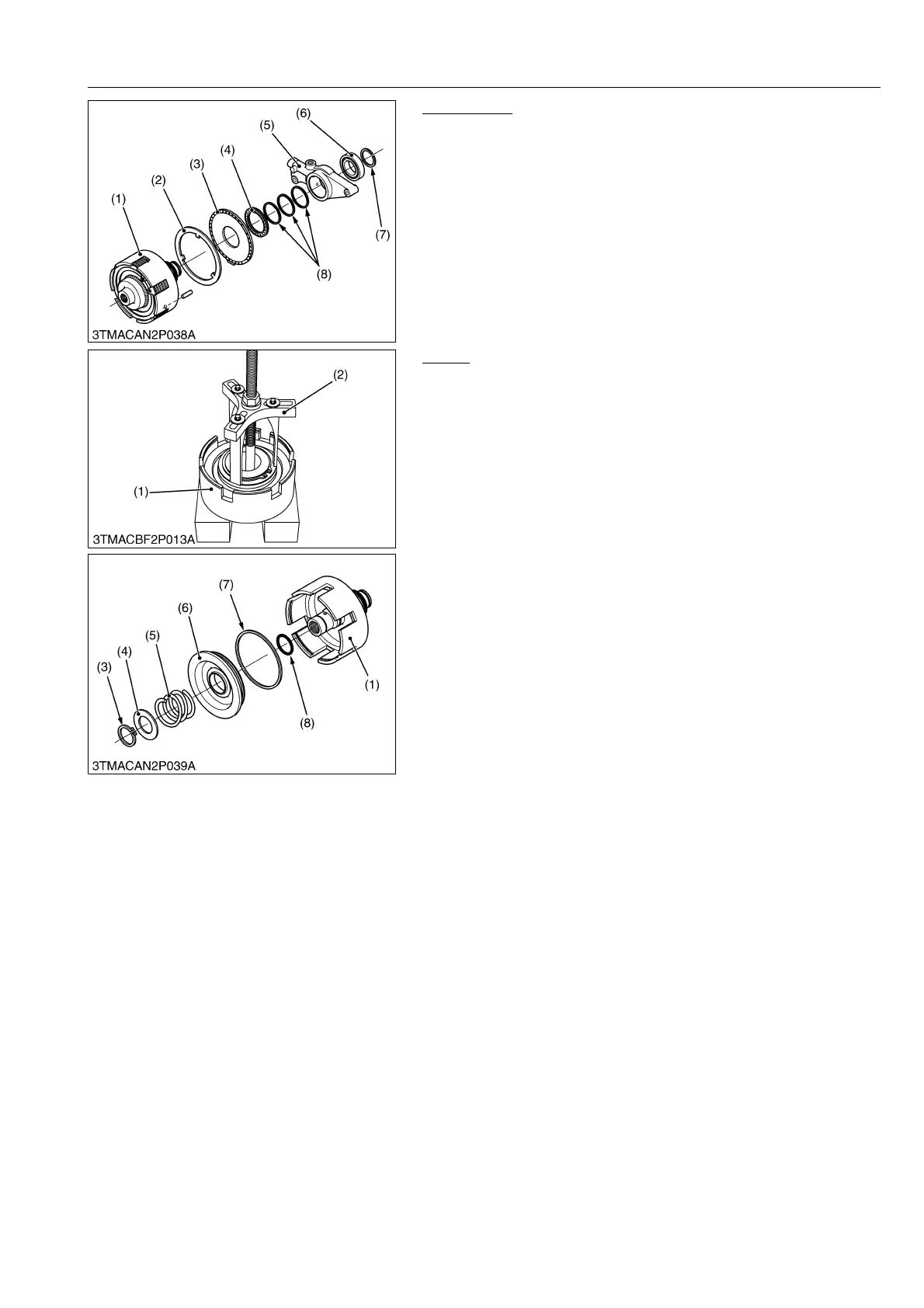

Clutch Case
1. Remove the external circlip (7).
2. Remove the clutch holder (5), brake disc (3) and brake plate (2).
(When reassembling)
• Direct the contact part of the brake disc (3) to the brake plate (2).
• Apply small amount of grease to the seal rings (8).
9Y1210143CLS0011US0
Piston
1. Press the washer (4) using the hydraulic clutch spring
compressor. (See page G-68.)
2. Remove the external circlip (3).
3. Remove the piston (6).
(When reassembling)
• Apply enough transmission fluid to seal ring (7) and (8).
9Y1210143CLS0012US0
(1) Clutch Case
(2) Brake Plate
(3) Brake Disc
(4) Needle Bearing
(5) Clutch Holder
(6) Bearing
(7) External Circlip
(8) Seal Ring
(1) Clutch Case
(2) Hydraulic Clutch Spring
Compressor
(3) External Circlip
(4) Washer
(5) Spring
(6) Piston
(7) Seal Ring
(8) Seal Ring
