TRANSMISSION
M6040, M7040, WSM
3-S25

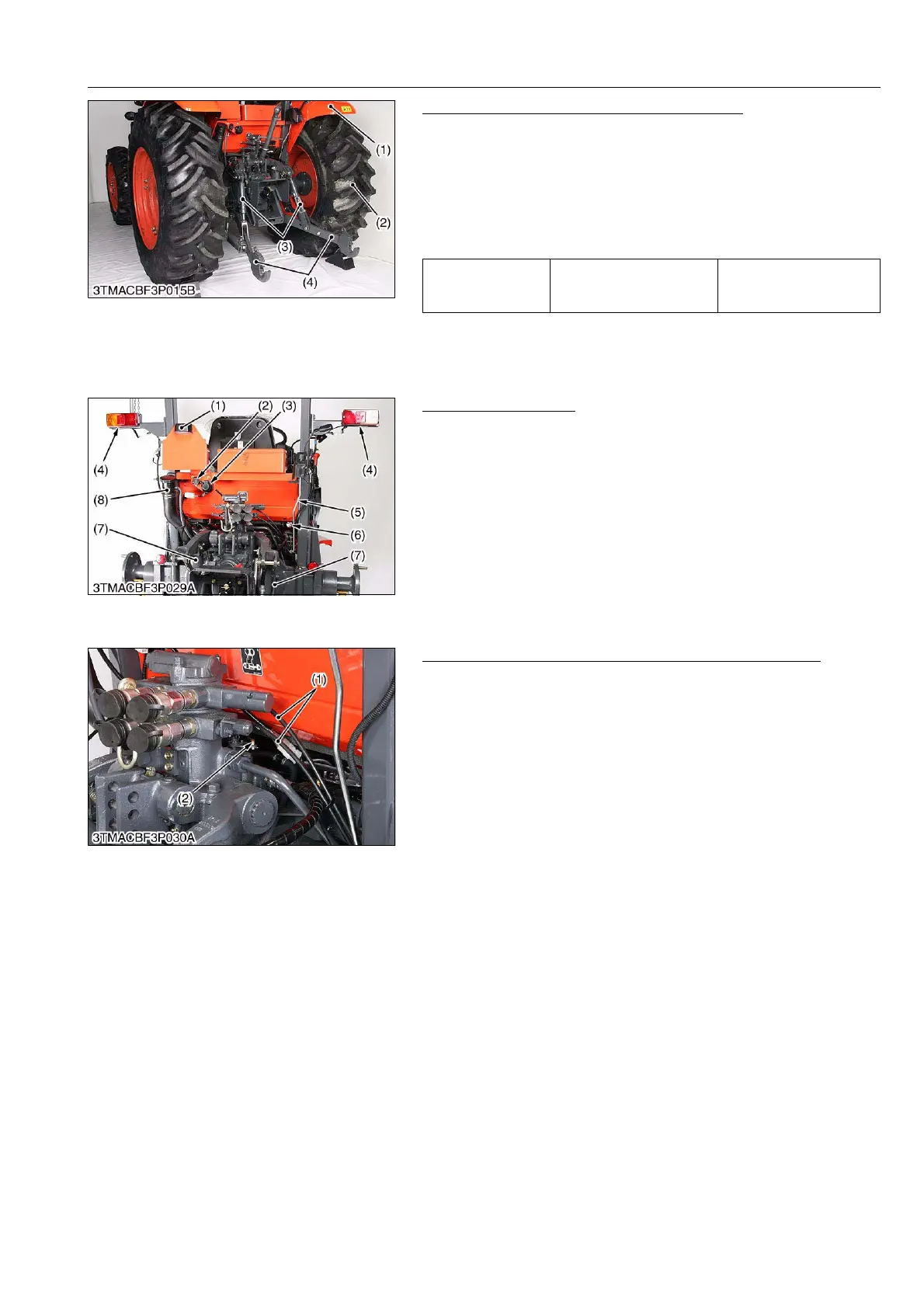

Lift Rod, Lower Link and Fender (R.H., L.H.)
1. Place the disassembling stand under the transmission case.
2. Remove the lift rod (3) and lower link (4).
3. Remove the both rear wheel (2).
4. Place the stand under the both rear axle after remove the rear
wheel (2).
5. Remove the both rear fender (1) (R.H., L.H.).
(When reassembling)
9Y1210143TRS0041US0
Connectors and Rod
1. Remove the fuel filling port (8) mounting screw.
2. Disconnect the connectors for trailer coupler (3), electric outlet
(2) and number plate licence light (1).
3. Disconnect the connectors for both rear combination lamp (4)
and connector (6) for PTO switch.
4. Remove the rod (5).
5. Remove the hydraulic cylinders (7).
9Y1210143TRS0042US0
Remote Control Valve Cable and Lowering Speed Rod
1. Remove the cables (1) for remote control valves.
2. Remove the lowering speed rod (2).
(When reassembling)
• Adjust the remote control valve cable position. (Refer to "[4]
AUXILIARY CONTROL VALVE LINKAGE" on page 8-S16.)
9Y1210143TRS0043US0
Tightening torque Rear wheel mounting nut
260 to 304 N·m
26.5 to 31.0 kgf·m
191.8 to 224.2 lbf·ft
(1) Fender
(2) Rear Wheel
(3) Lift Rod
(4) Lower Link
(5) PTO Clutch Cable
(1) Number Plate Licence Light
(2) Electric Outlet
(3) Trailer Coupler
(4) Rear Combination Lamp
(5) Rod (Outer Position Control)
(6) Connector
(7) Hydraulic Cylinder
(8) Fuel Filling Port
(1) Cable (Remote Control Valve) (2) Lowering Speed Rod
To Next Page
