BRAKES
M6040, M7040, WSM
5-S11

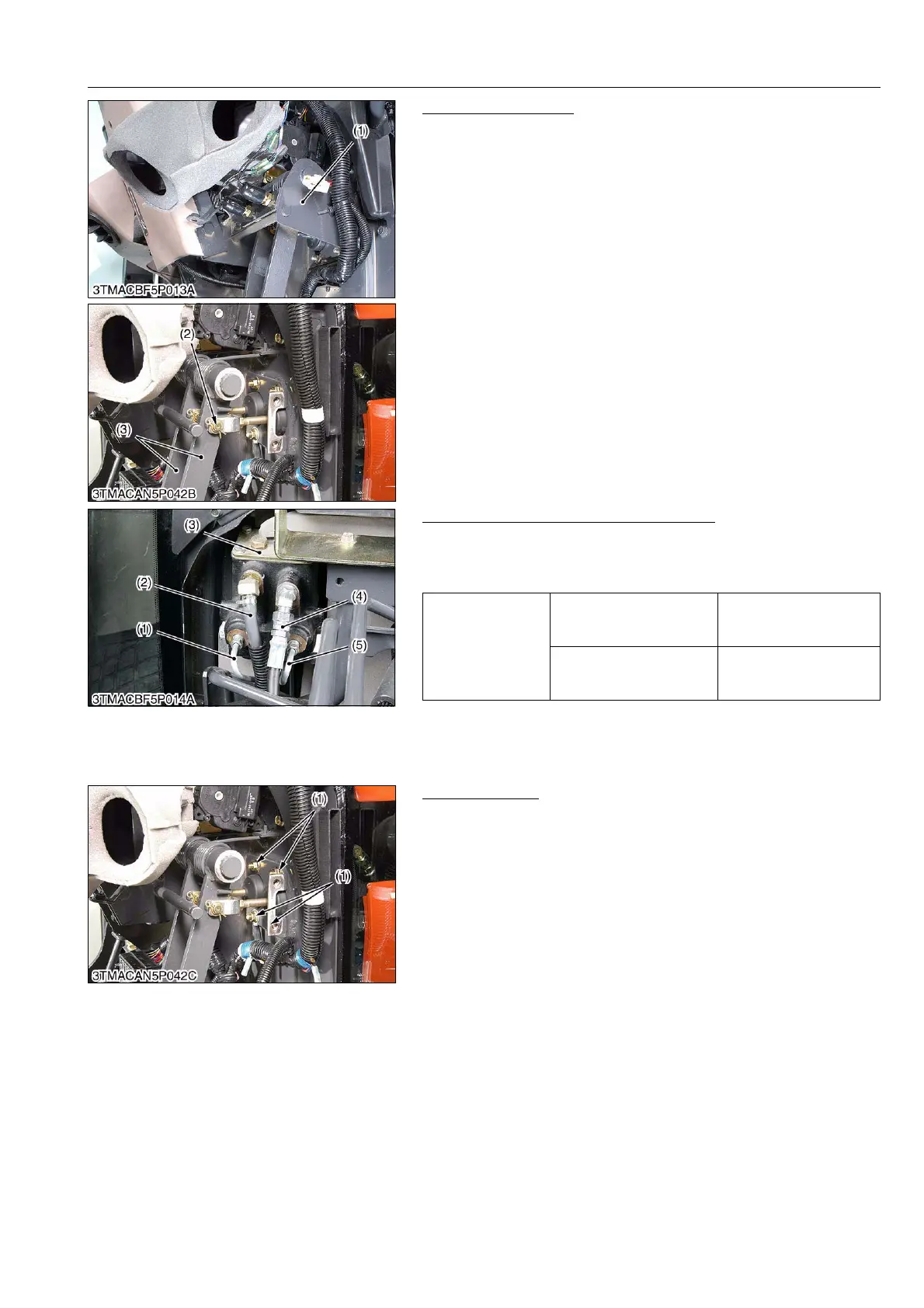

Master Cylinder Rod
1. Remove the pedal shaft support (1).
2. Remove the master cylinder rod pins (2) from brake pedals (3).
9Y1210143BRS0016US0
Brake Pipes and Master Cylinder Hoses
1. Remove the master cylinder hose (4) and cylinder return hose
(2) from the master cylinder assembly (3).
2. Remove the brake pipe R.H. (1) and L.H. (5).
9Y1210143BRS0017US0
Master Cylinder
1. Remove the master cylinder mounting nuts (1).
2. Remove the master cylinder assembly.
(When reassembling)
• After mounting the master cylinder assembly, be sure to bleed
air. (See page 5-S4.)
9Y1210143BRS0018US0
(1) Pedal Shaft Support
(2) Pin
(3) Brake Pedal
Tightening torque
Brake pipe retaining nut
16.0 to 24.0 N·m
1.6 to 2.5 kgf·m
11.8 to 17.7 lbf·ft
Master cylinder hose
retaining nut
22.6 to 27.5 N·m
2.3 to 2.8 kgf·m
16.6 to 20.3 lbf·ft
(1) Brake Pipe R.H.
(2) Master Cylinder Return Hose
(3) Master Cylinder Assembly
(4) Master Cylinder Hose
(5) Brake Pipe L.H.
(1) Cylinder Mounting Nut
KiSC issued 07, 2012 A
