FRONT AXLE
M6040, M7040, WSM
6-S20

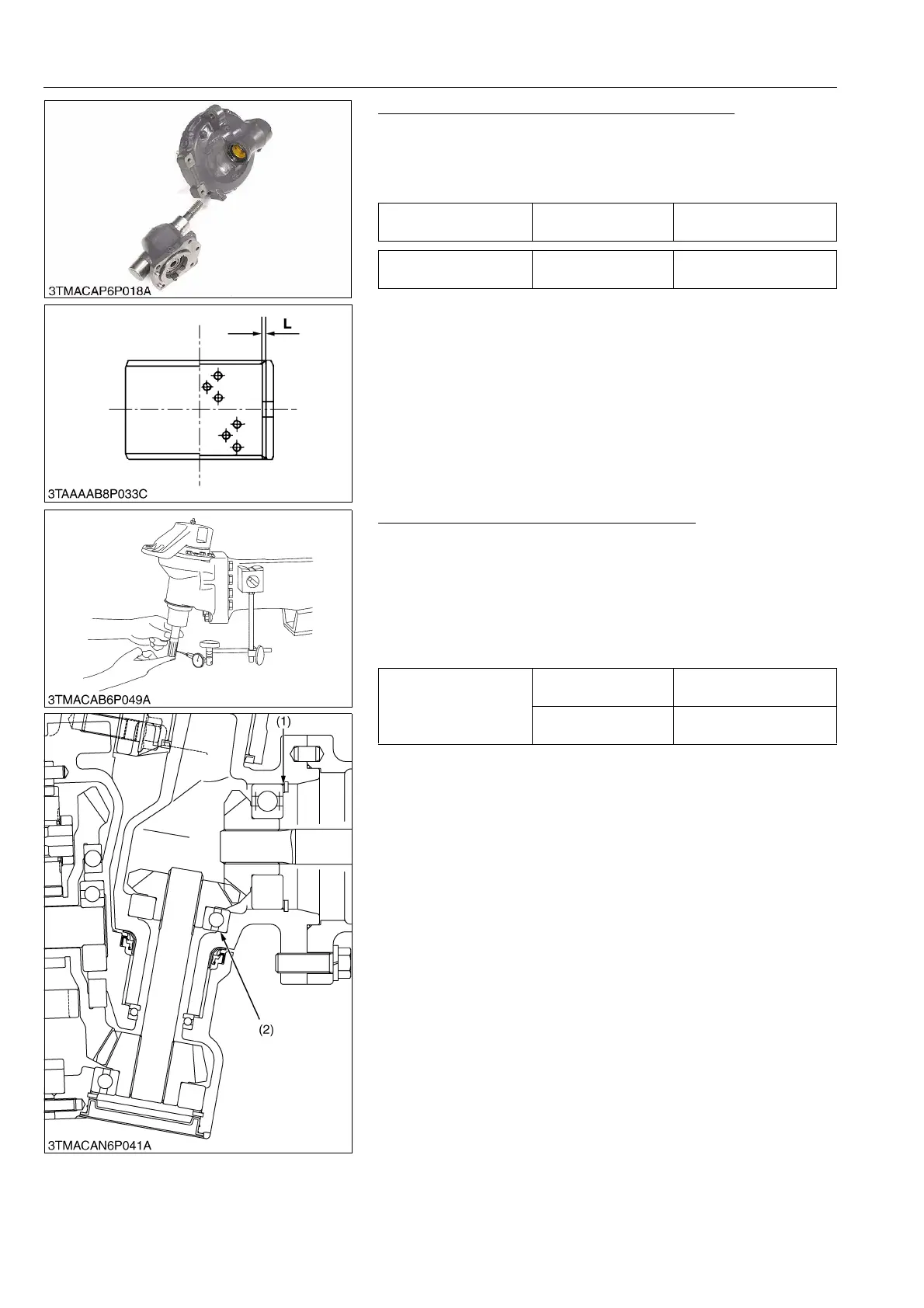

Bevel Gear Case and Front Wheel Case Bushing
1. Visually inspect the DX bushings for signs of wear or damage.
(The DX bushing tends to show concentrated wear.)
2. If the DX bushing is worn beyond the alloy portion "L" , replace
it.
9Y1210143FAS0032US0
Backlash of Bevel Gear in Bevel Gear Case
1. Set a dial indicator (lever type) on the shaft (Kingpin).
2. Move the shaft (Kingpin) by hand and measure the
circumferential play of the shaft.
3. Calculate the backlash from the ratio of the shaft diameter to the
gear diameter. (Backlash = Play × 2)
4. If the backlash exceeds the allowable limit, adjust with the shims
(1).
(Reference)
• Thickness of adjusting shims (1):
0.1 mm (0.004 in.) [Code No.: 35533-44081]
0.4 mm (0.016 in.) [Code No.: 3A021-44021]
0.6 mm (0.024 in.) [Code No.: 3A021-44031]
0.8 mm (0.032 in.) [Code No.: 3A021-44041]
1.0 mm (0.039 in.) [Code No.: 3A021-44051]
1.2 mm (0.047 in.) [Code No.: 3A021-44061]
• Thickness of adjusting shims (2):
0.1 mm (0.004 in.) [Code No.: 35533-43011]
0.2 mm (0.008 in.) [Code No.: 35533-43021]
0.4 mm (0.016 in.) [Code No.: 35533-43031]
9Y1210143FAS0033US0
Front wheel case
bushing
Alloy thickness "L"
0.57 mm
0.0224 in.
Bevel gear case O.D.. Factory specification
54.97 to 55.00 mm
2.1642 to 2.1653 in.
Backlash of bevel gear in
bevel gear case
Factory specification
0.20 to 0.30 mm
0.0079 to 0.0118 in.
Allowable limit
0.4 mm
0.016 in.
(1) Shim (2) Shim
