wsm M7040 - Page 371

FRONT AXLE
M6040, M7040, WSM
6-S19

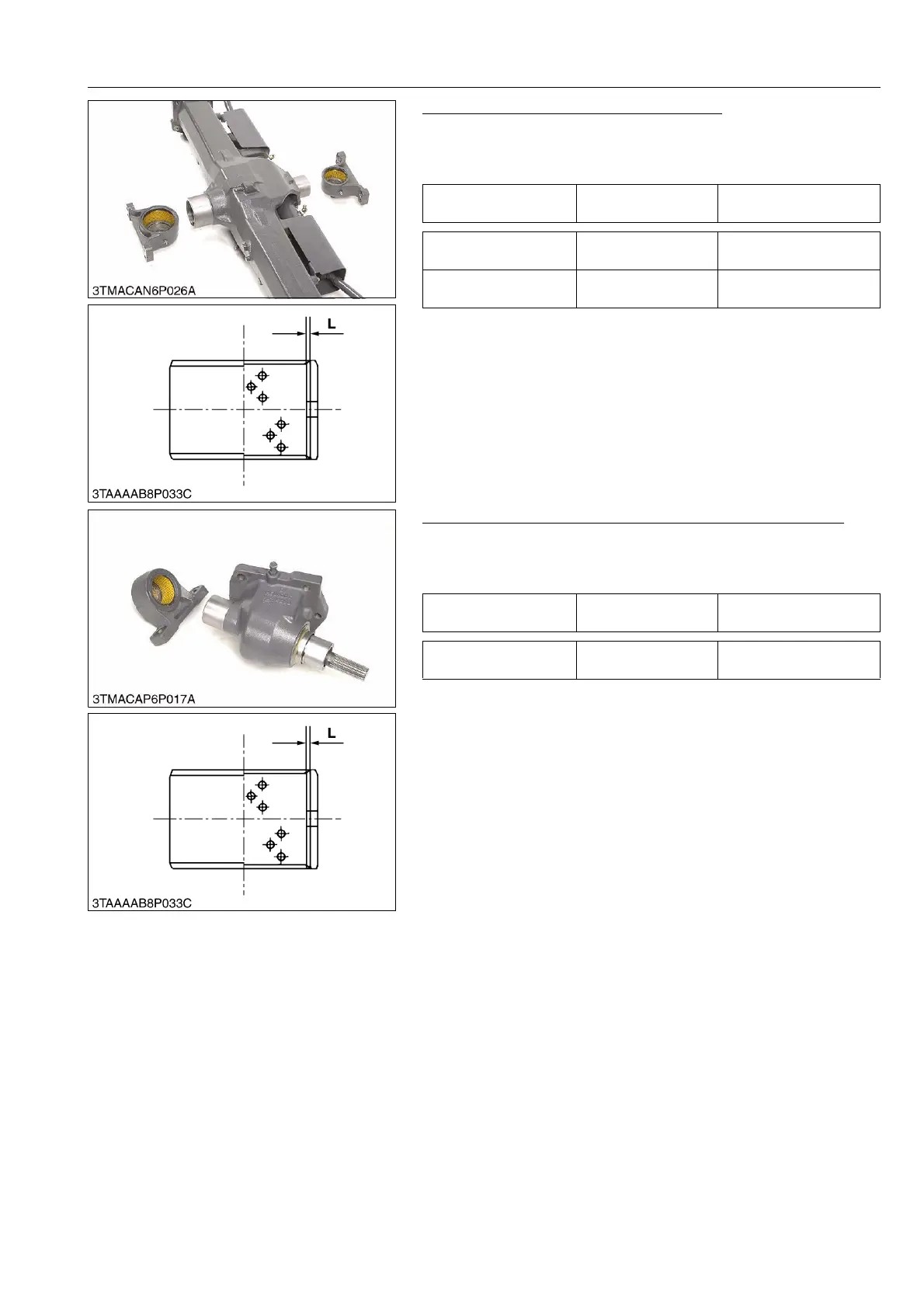

Front Bracket and Rear Bracket Bushing
1. Visually inspect the DX bushings for signs of wear or damage.
(The DX bushing tends to show concentrated wear.)
2. If the DX bushing is worn beyond the alloy portion "L" replace it.
9Y1210143FAS0030US0
Bearing Retainer and Front Wheel Case Support Bushing
1. Visually inspect the DX bushings for signs of wear or damage.
(The DX bushing tends to show concentrated wear.)
2. If the DX bushing is worn beyond the alloy portion "L" replace it.
9Y1210143FAS0031US0
Front bracket and rear
bracket bushing
Alloy thickness "L"
0.57 mm
0.0224 in.
Rear differential case
boss O.D.
Factory specification
89.965 to 90.000 mm
3.5420 to 3.5433 in.
Front differential case
boss O.D.
Factory specification
59.97 to 60.000 mm
2.3611 to 2.3622 in.
Front wheel case support
bushing
Alloy thickness "L"
0.57 mm
0.0224 in.
Bearing retainer O.D. Factory specification
59.97 to 60.00 mm
2.36101 to 2.36220 in.
KiSC issued 07, 2012 A
