HYDRAULIC SYSTEM
M6040, M7040, WSM
8-S23

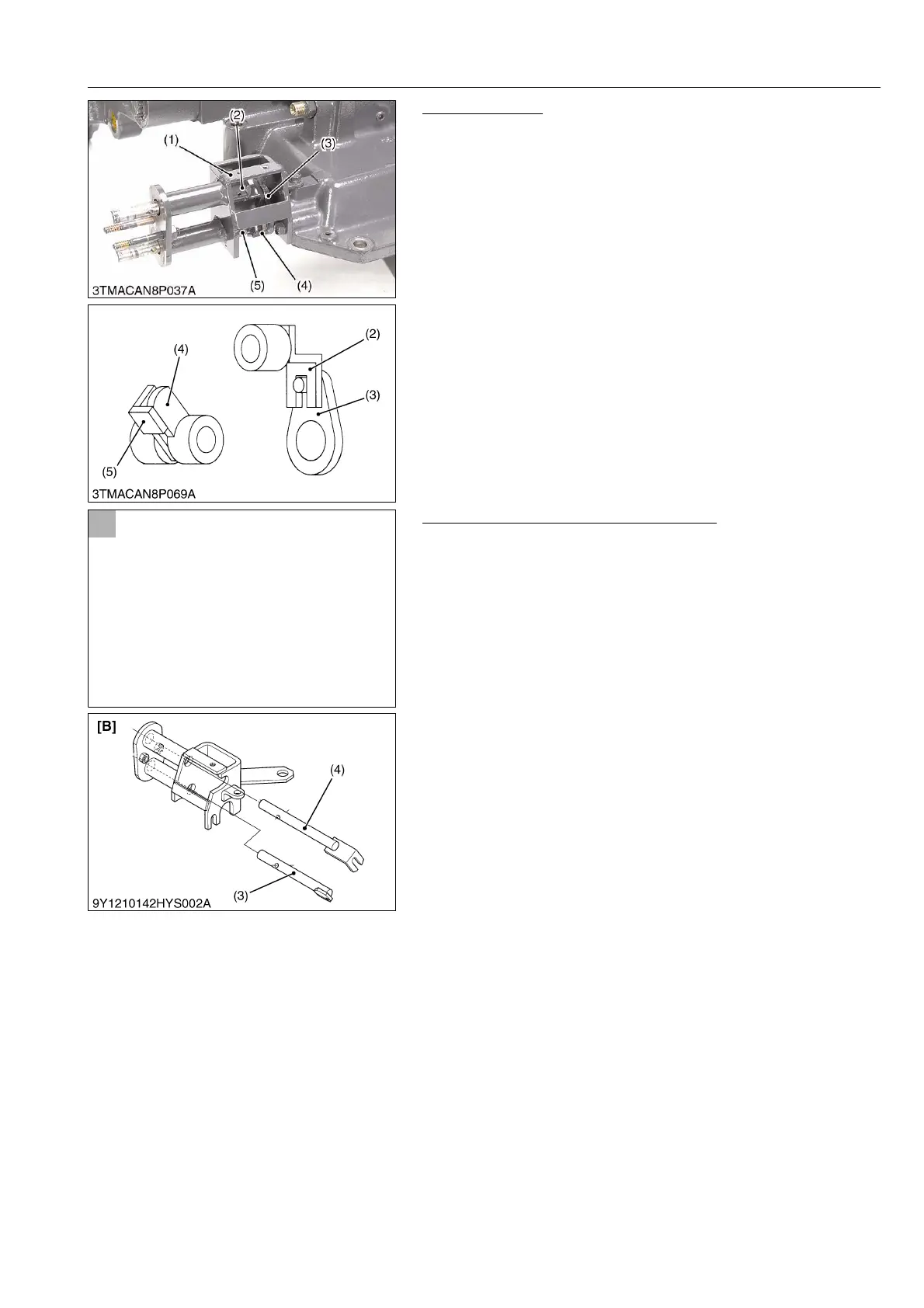

Linkage Bracket
1. Remove the bracket (1).
(When reassembling)
• Be sure to assemble the position lever 2 (5) and 3 (4) as shown
in figure.
• Be sure to assemble the draft link cam 2 (2) and draft lever 3 (3)
as shown in figure.
9Y1210143HYS0025US0
Draft Lever Rod and Position Lever Rod
1. Tap out the roll pin (1) and (2). (Old type [A])
2. Draw out the rod (3) and (4).
(When reassembling)
• Apply grease to the bushes.
9Y1210143HYS0026US0
(1) Bracket
(2) Draft Link Cam 2
(3) Draft Lever 3
(4) Position Lever 3
(5) Position Lever 2
(1) Roll Pin
(2) Roll Pin
(3) Rod
(4) Rod
[A] Old Type
[B] New Type
