HYDRAULIC SYSTEM
M6040, M7040, WSM
8-S24

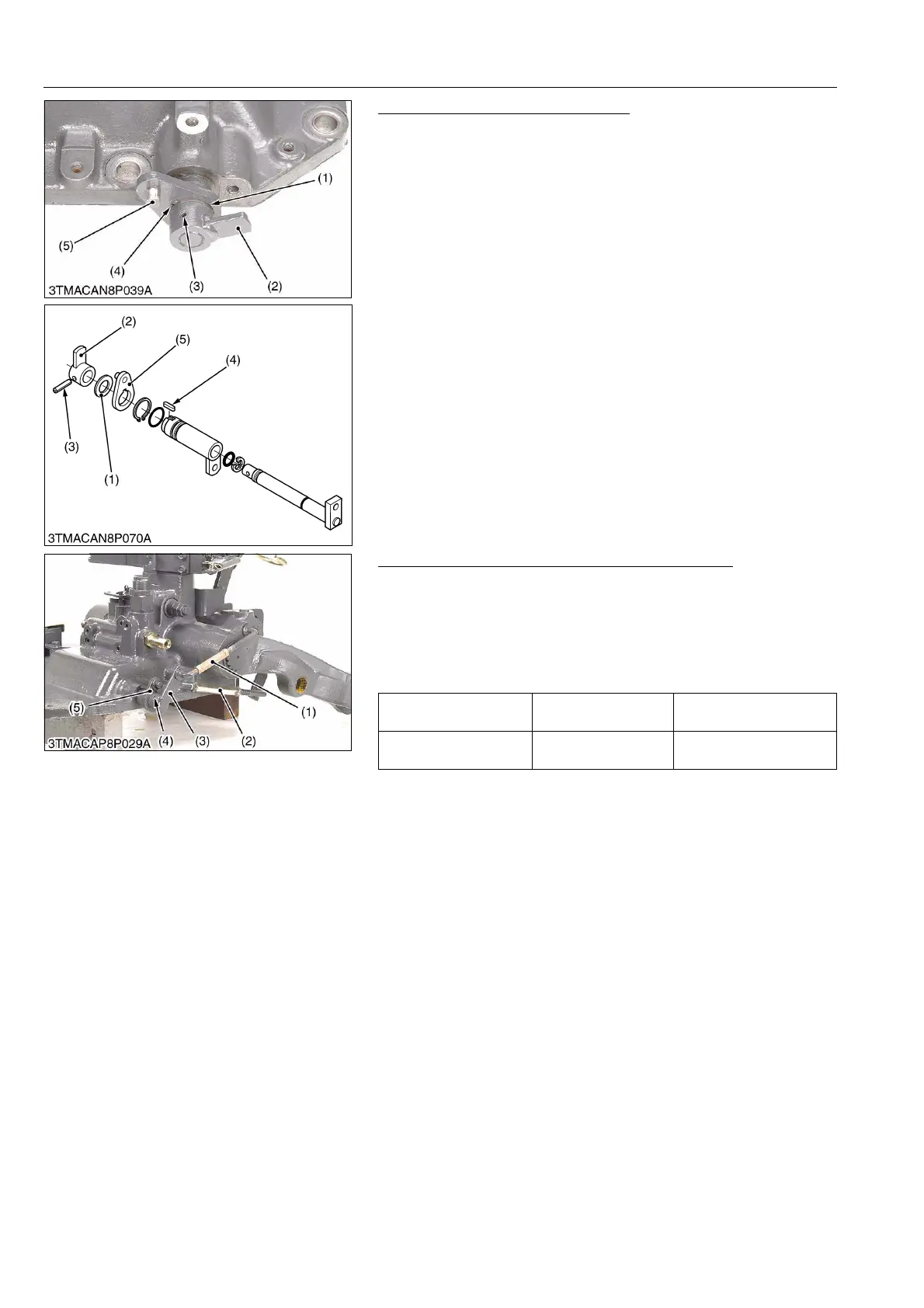

Draft Lever 3 and Position Lever 3
1. Tap out the roll pin (3).
2. Remove the position lever 3 (2), washer (1), draft lever 3 (5) and
key (4).
9Y1210143HYS0027US0
Position Feedback Rod and Draft Feedback Rod
1. Tap out the roll pin (4), remove the position feedback rod (1)
with position feedback lever (3).
2. Remove the draft feedback rod (2) with draft feedback lever (5).
(When reassembling)
• Adjust the position and feedback rod length to the factory
specifications.
9Y1210143HYS0028US0
(1) Washer
(2) Position Lever 3
(3) Roll Pin
(4) Key
(5) Draft Lever 3
Position feedback rod
length
Factory specification
156 mm
6.14 in.
Draft feedback rod length Factory specification
252 mm
9.92 in.
(1) Position Feedback Rod
(2) Draft Feedback Rod
(3) Position Feedback Lever
(4) Roll Pin
(5) Draft Feedback Lever
