ELECTRICAL SYSTEM
M6040, M7040, WSM
9-S30

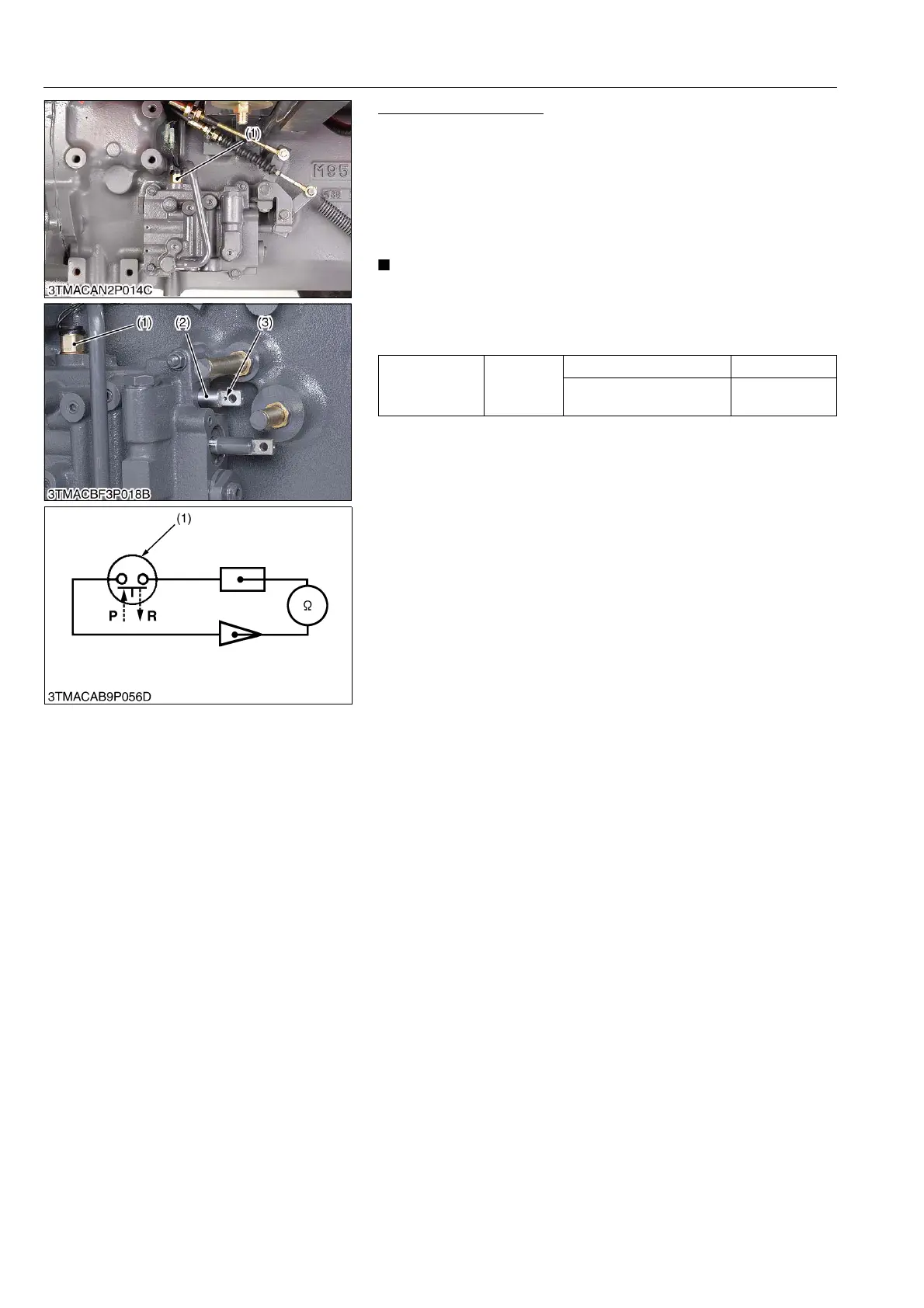

Shuttle Neutral Switch
1) Shuttle Neutral Switch Continuity
1. Check the continuity with an ohmmeter across the switch
terminals.
2. If it does not conduct or any value is indicated when the switch
is pushed, the switch is faulty.
3. If infinity is not indicated when the switch is released, the switch
is faulty.
• Be sure to check the position of shuttle spool (2), the mark
(3) toward the outside as shown photo.
If the shuttle spool (2) is not correct position, shuttle
neutral switch (1) operates improperly.
9Y1210143ELS0047US0
Resistance
(Across switch
terminals)
Reference
value
When switch is pushed "P" 0 Ω
When switch is released
"R"
Infinity
(1) Shuttle Neutral Switch
(2) Shuttle Spool
(3) Mark
P: Pushed
R: Released
