wsm M7040 - Page 503

ELECTRICAL SYSTEM
M6040, M7040, WSM
9-S34

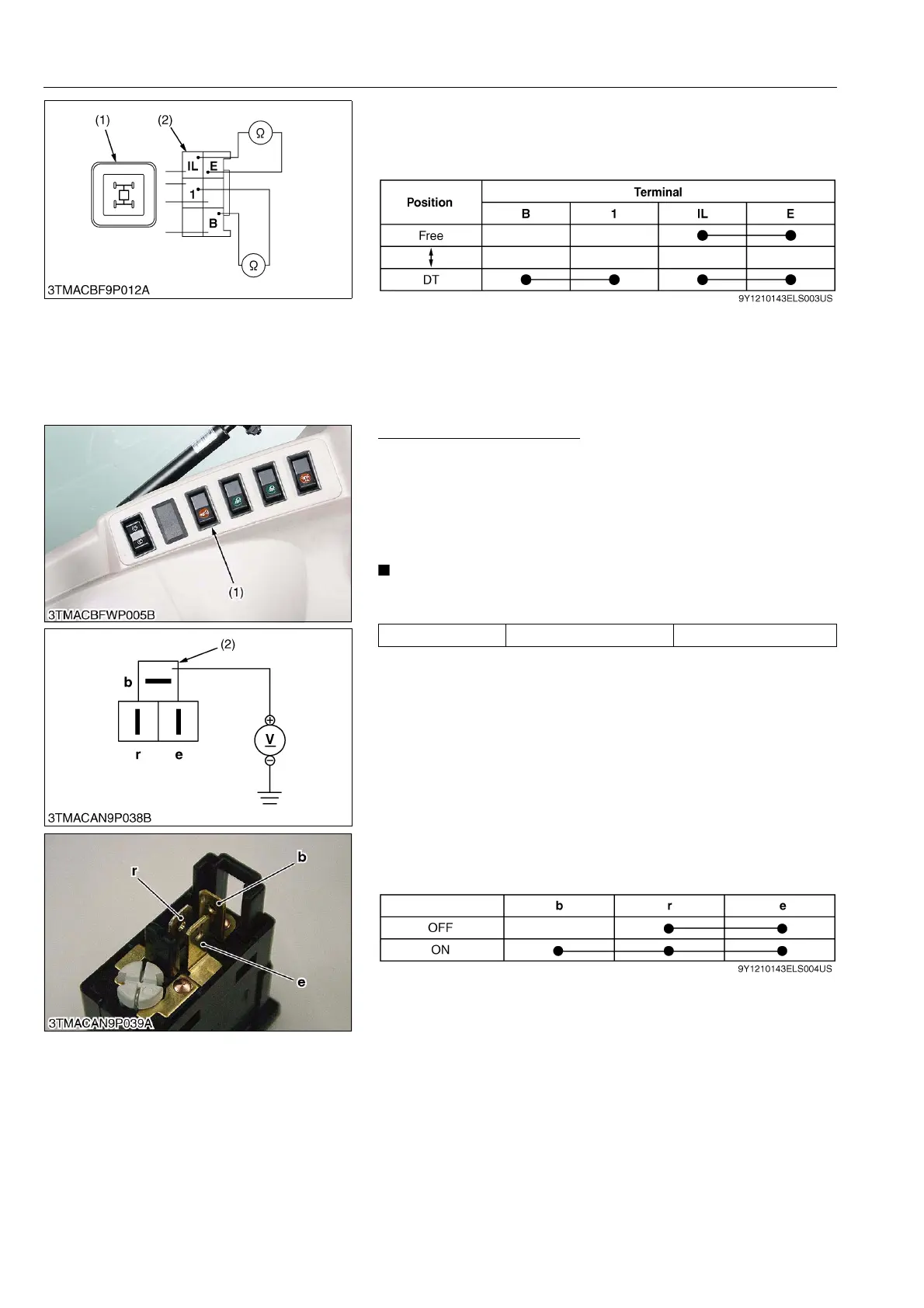

2) 4WD Switch
1. Check the continuity through switch with an ohmmeter.
2. If continuity specified below are not indicated, the switch is
faulty.
9Y1210143ELS0053US0
4WD Switch (CABIN Model)
1) Connector Voltage
1. Turn the main switch to ON position.
2. Measure the voltage with a voltmeter across the terminal b and
chassis.
3. If the voltage differ from the battery voltage, the wiring harness
or fuse is faulty.
NOTE
• The terminal b of 3P connector for 4WD switch is red/green
color wire.
9Y1210143ELS0054US0
2) 4WD Switch
1. Test the continuity through the switch with an ohmmeter.
2. If continuity specified below is not indicated, the switch is faulty.
9Y1210143ELS0055US0
(1) 4WD Switch
(2) 4WD Switch Connector
(Switch Side)
(3) 4WD / Bi-speed Turn Switch
Connector (Wiring Harness Side)
(4) Terminal W/L for Illumination
(5) Terminal W/L for 4WD
Voltage Terminal b – Chassis Approx. battery voltage
(1) 4WD Switch (2) 3P Connector (Wire Harness Side)
(1) 4WD Switch
KiSC issued 07, 2012 A
