CABIN
M6040, M7040, WSM
10-S37
Preparation 5
1. Disconnect the clutch cable (1).
2. Remove the shuttle select rod mounting nut (2) from shuttle
select rod (4) then disconnect the shuttle select rod (4).
3. Disconnect the shuttle cable (3).
(When reassembling)
• Be sure to adjust the clutch cable for the clutch pedal free travel.
(See page 2-S4.)
• Be sure to adjust the shuttle cable for the shuttle lever neutral
position. (See page 3-S6.)
9Y1210143CAS0064US0

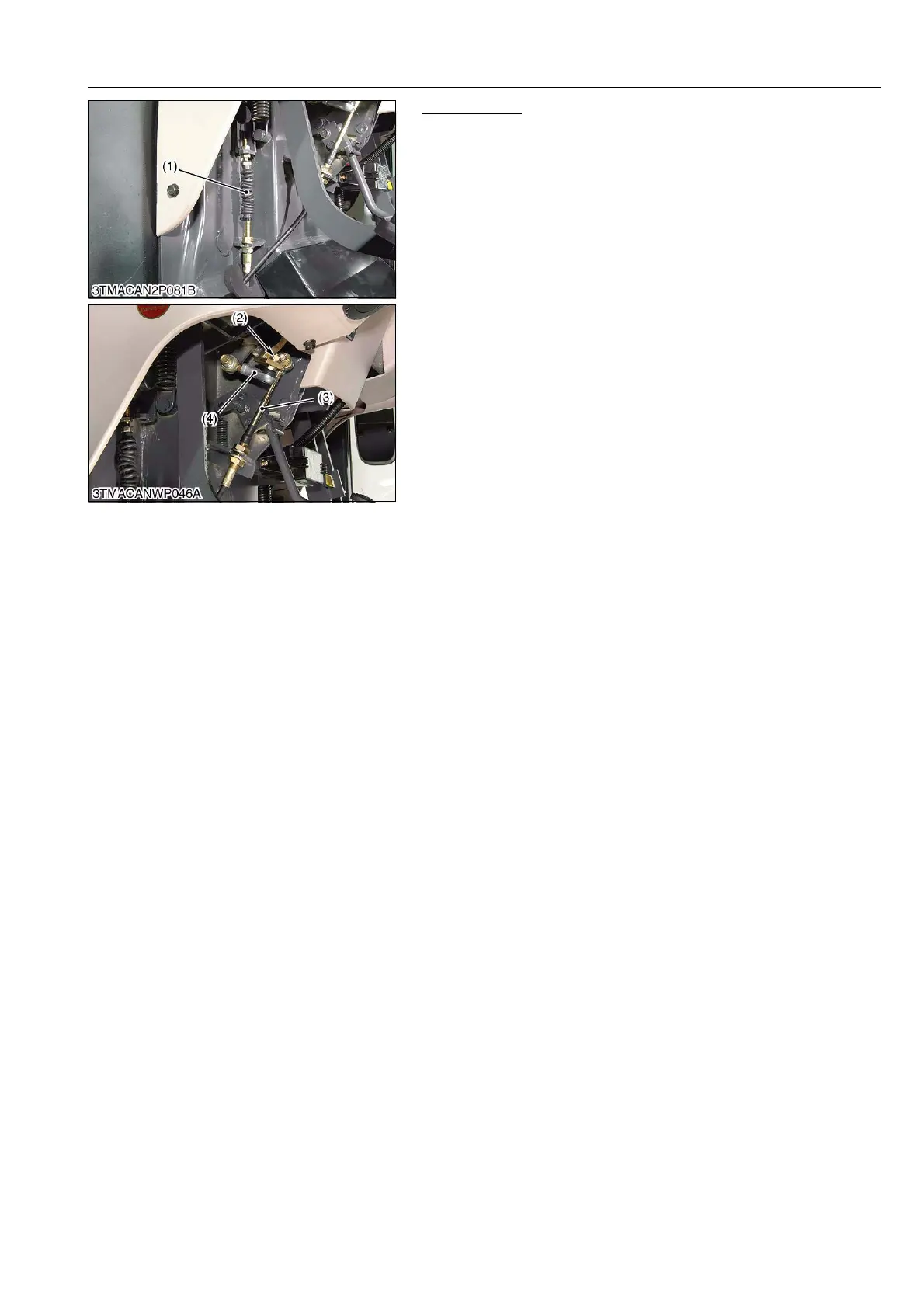

(1) Clutch Cable
(2) Nut
(3) Shuttle Cable
(4) Shuttle Select Rod
