CABIN
M6040, M7040, WSM
10-S36

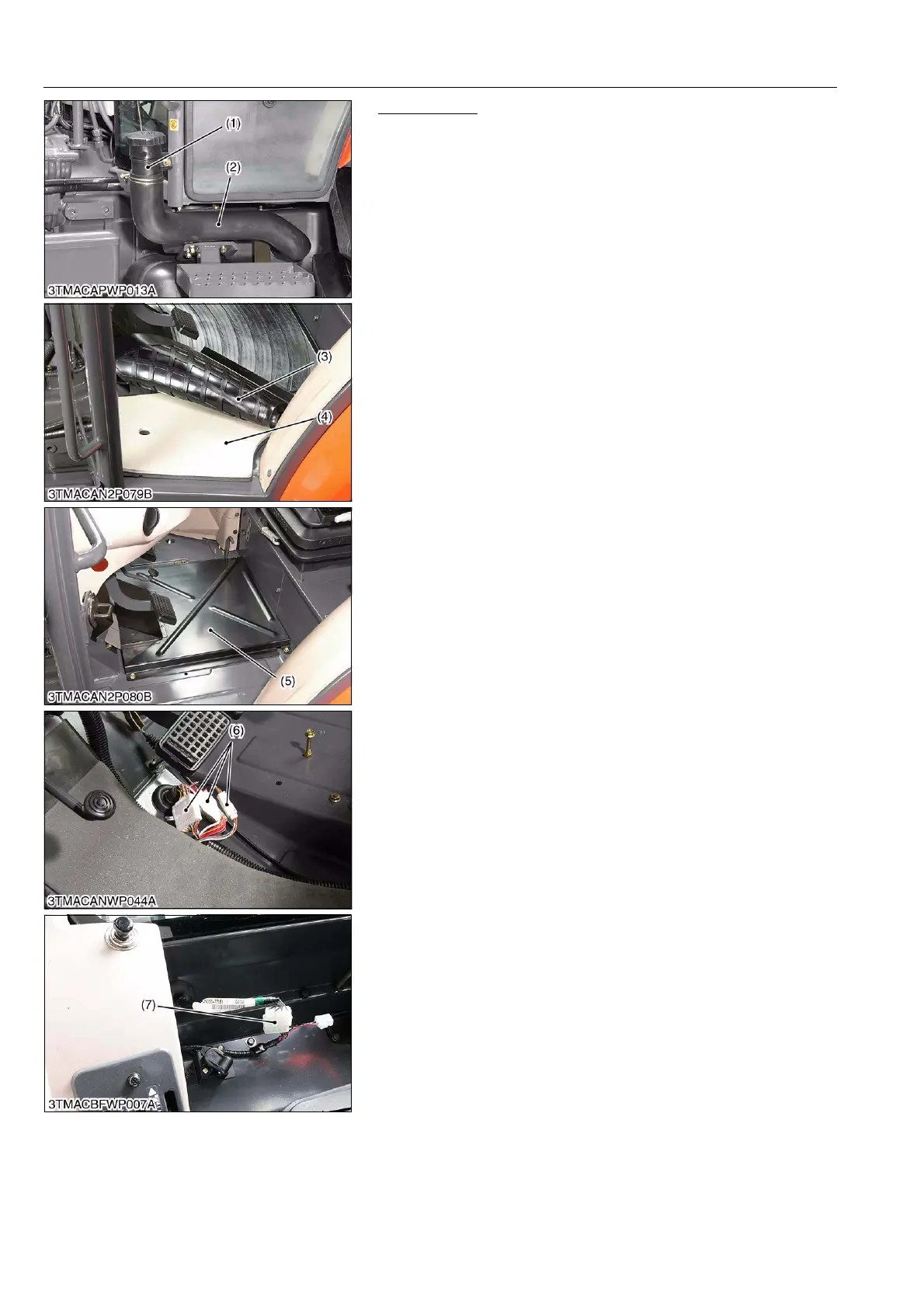

Preparation 4
1. Remove the fuel filling port (1).
2. Remove the floor mat 1 (3) and mat 2 (4).
3. Remove the floor cover (5).
4. Disconnect the connectors (6) and pull out them from cabin.
5. Disconnect the connector (7) and pull out them from cabin.
9Y1210143CAS0063US0
(1) Fuel Filling Port
(2) Fuel Filling Hose
(3) Floor Mat 1
(4) Floor Mat 2
(5) Floor Cover
(6) Connector
(7) Connector
