GENERAL
M6040, M7040, WSM
G-45

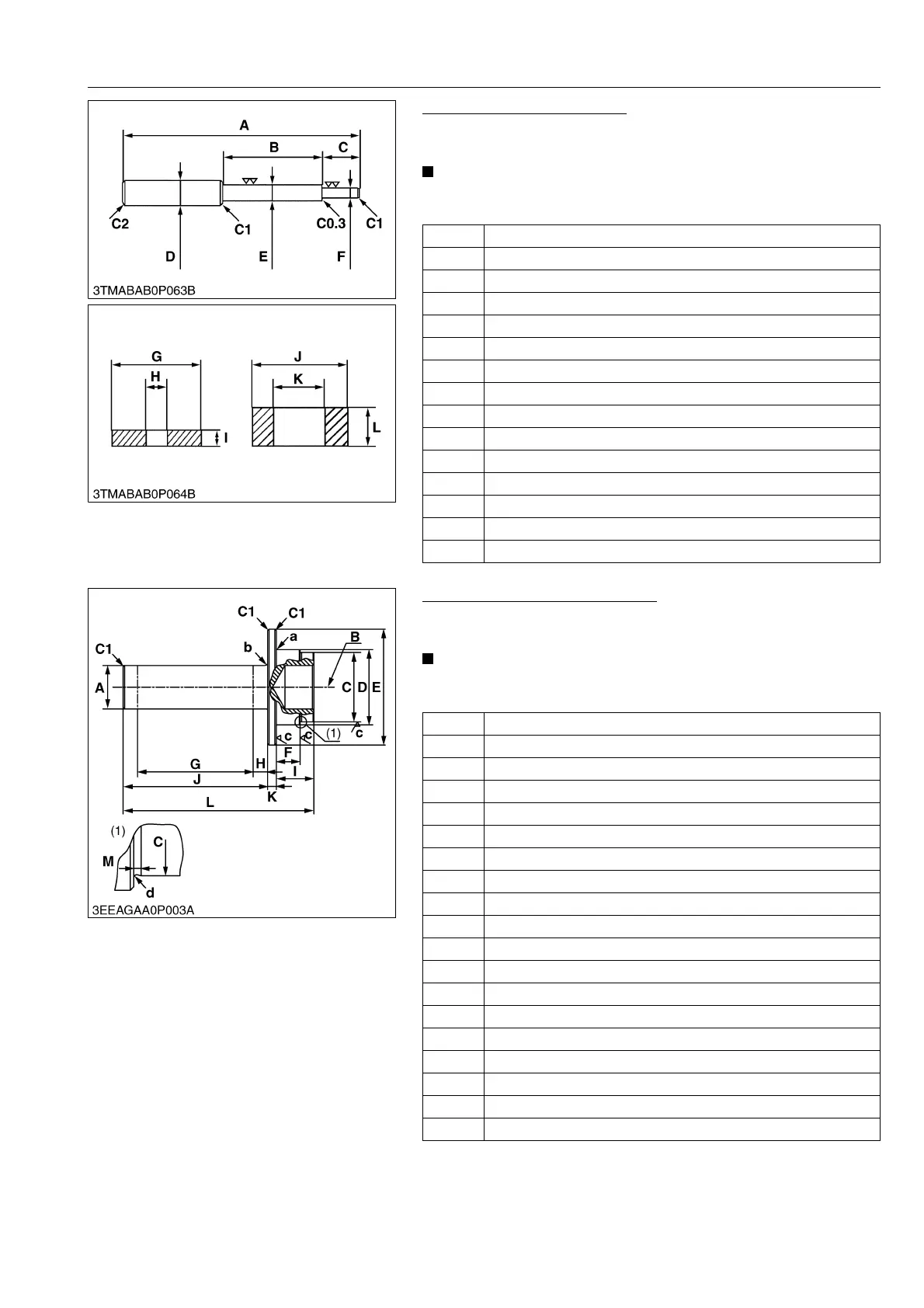

Valve Guide Replacing Tool
Application
• Use to press out and press fit the valve guide.
NOTE
• The following special tools are not provided, so make them
referring to the figure.
9Y1210143GEG0075US0
Camshaft Cover Replacing Tool
Application
• Use to press fit the camshaft cover.
NOTE
• The following special tools are not provided, so make them
referring to the figure.
9Y1210143GEG0076US0
A 225 mm (8.86 in.)
B 70 mm (2.76 in.)
C 45 mm (1.77 in.)
D 20 mm dia. (0.79 in. dia.)
E 11.7 to 11.9 mm dia. (0.460 to 0.468 in. dia.)
F 6.5 to 6.6 mm dia. (0.256 to 0.259 in. dia.)
G 25 mm dia. (0.98 in. dia.)
H 6.7 to 7.0 mm dia. (0.263 to 0.275 in. dia.)
I 5 mm (0.197 in.)
J 20 mm dia. (0.787 in. dia.)
K 12.5 to 12.8 mm dia. (0.492 to 0.504 in. dia.)
L 8.5 to 8.9 mm (0.3346 to 0.3504 in.)
C1 Chamfer 1.0 mm (0.039 in.)
C2 Chamfer 2.0 mm (0.079 in.)
C0.3 Chamfer 0.3 mm (0.012 in.)
A 30 mm (1.1811 in.)
B 30 mm dia., 20 mm depth (1.1811 in. dia., 0.7874 in. depth)
C 47.975 to 48.000 mm (1.8888 to 1.8898 in.)
D 52 mm (2.0472 in.)
E 80 mm (3.1496 in.)
F 16.5 to 16.6 mm (0.6496 to 0.6535 in.)
G 80 mm (3.1496 in.)
H 10 mm (0.3937 in.)
I 26 mm (1.0236 in.)
J 100 mm (3.9370 in.)
K 6 mm (0.2362 in.)
L 132 mm (5.1969 in.)
M 1 mm (0.0394 in.)
a 1 mm radius (0.0394 in. radius)
b 2 mm radius (0.0787 in. radius)
c Ra = 3.2a
d 0.4 mm radius (0.0157 in. radius)
C0.5 Chamfer 0.5 mm (0.0197 in.)
C1 Chamfer 1.0 mm (0.039 in.)
KiSC issued 07, 2012 A
