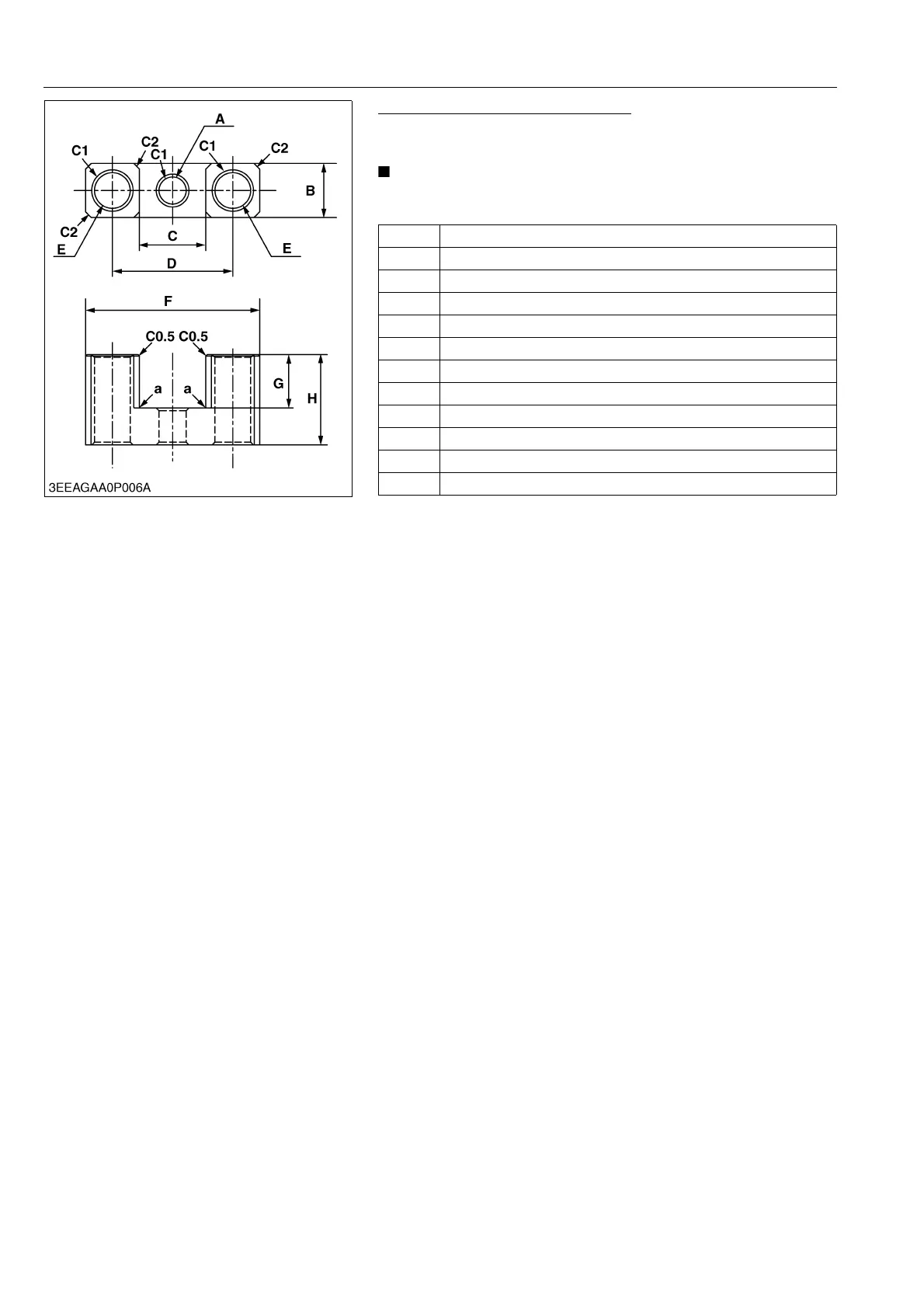

Valve Bridge Shaft Replacing Tool
Application
• Use to press fit the valve bridge shaft.
• The following special tools are not provided, so make them
referring to the figure.
9Y1210143GEG0079US0
A 9.5 mm dia. (0.3740 in. dia.) through hole
B 19 mm (0.7480 in.)
C 23.2 mm (0.9134 in.)
D 42.0 to 42.4 mm (1.6535 to 1.6693 in.)
E 12.5 mm dia. (0.4921 in. dia.) through hole
F 61 mm (2.4016 in.)
G 18.7 mm (0.7362 in.)
H 30.9 to 31.7 mm (1.2165 to 1.2480 in.)
a 0.3 mm radius (0.0118 in. radius)
C0.5 Chamfer 0.5 mm (0.0197 in.)
C1 Chamfer 1.0 mm (0.0394 in.)
C2 Chamfer 2.0 mm (0.0787 in.)
