GENERAL
M6040, M7040, WSM
G-50

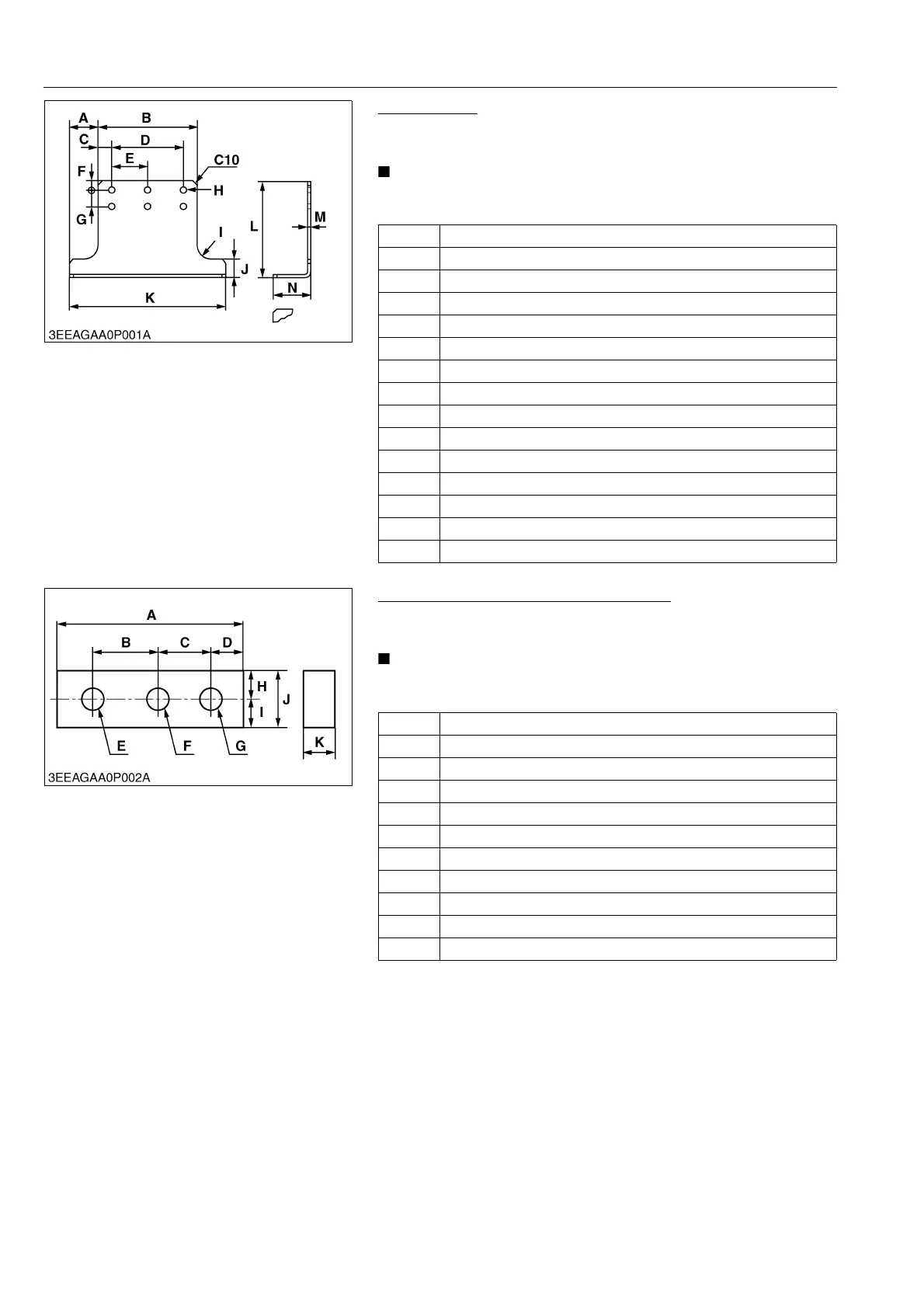

Engine Stand
Application
• Use to support engine.
• The following special tools are not provided, so make them
referring to the figure.
9Y1210143GEG0081US0
Tool for Aligning the Crankcase 1 and 2
Application
• Use for aligning the crankcase 1 and 2.
• The following special tools are not provided, so make them
referring to the figure.
9Y1210143GEG0082US0
A 107 mm (4.213 in.)
B 246 mm (9.685 in.)
C 21 mm (0.827 in.)
D 204 mm (8.032 in.)
E 102 mm (4.016 in.)
F 15 mm (0.591 in.)
G 59 mm (2.323 in.)
H 14 mm dia. (0.551 in. dia.)
I 80 mm radius (3.150 in. radius)
J 70 mm (2.756 in.)
K 460 mm (18.110 in.)
L 270 mm (10.630 in.)
M 6 mm (0.236 in.)
N 70 mm (2.756 in.)
C10 Chamfer 10 mm (0.394 in.)
A 126.6 mm (4.9843 in.)
B 49.1 mm (1.9331 in.)
C 37.5 mm (1.4764 in.)
D 20 mm (0.7874 in.)
E 14 mm dia. (0.5512 in. dia.)
F 14 mm dia. (0.5512 in. dia.)
G 14 mm dia. (0.5512 in. dia.)
H 17.5 mm (0.6890 in.)
I 17.5 mm (0.6890 in.)
J 35 mm (1.3780 in.)
K 19 mm (0.7480 in.)
To Next Page
