GENERAL
M6040, M7040, WSM
G-51

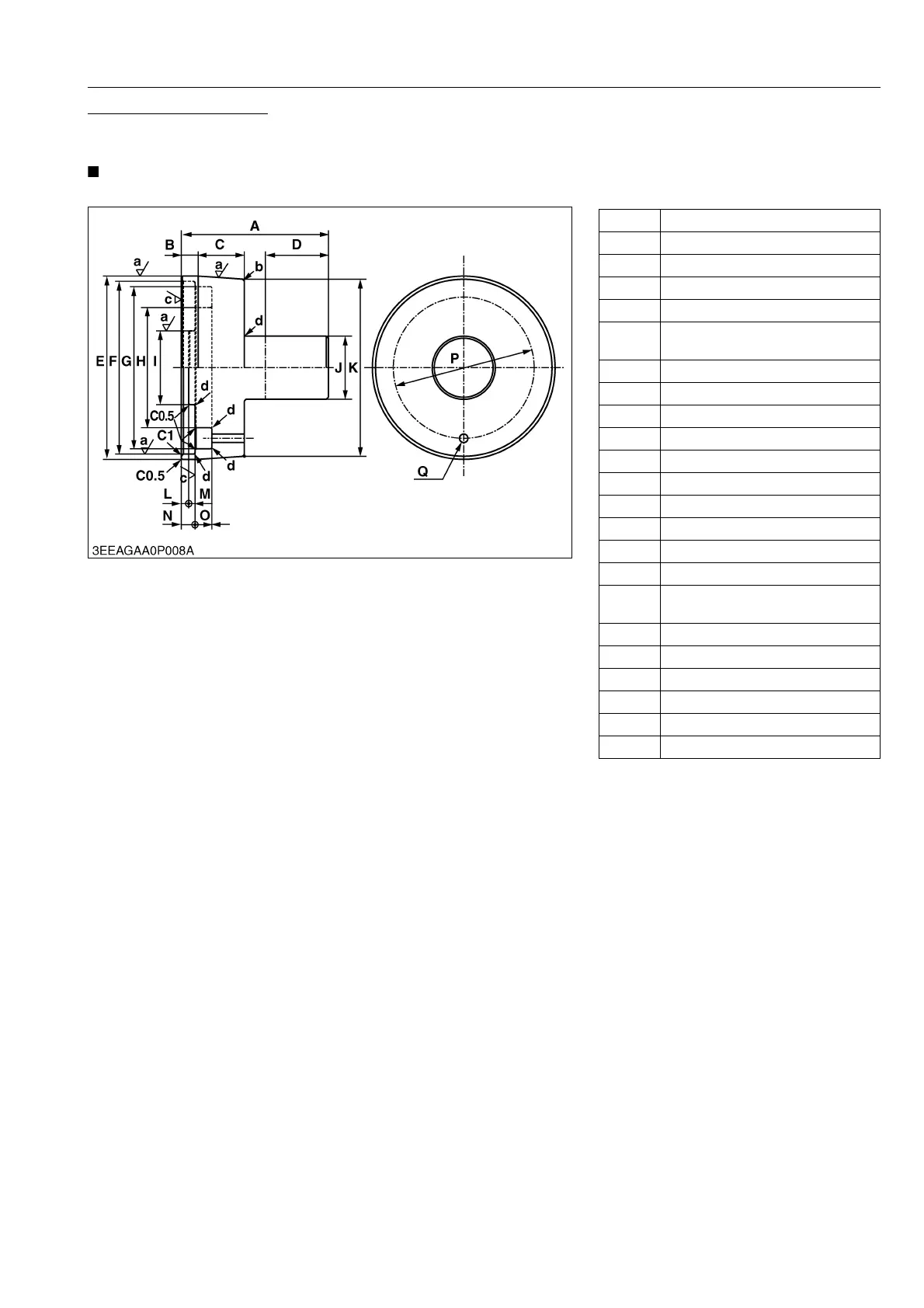

Flywheel Housing Guide
Application
• Use to install the flywheel housing to the crankcase.
NOTE
• The following special tools are not provided, so make them referring to the figure.
9Y1210143GEG0083US0
A 70 mm (2.7559 in.)
B 8 mm (0.3150 in.)
C 22 mm (0.8661 in.)
D 30 mm (1.1811 in.)
E 87 mm dia. (3.4252 in. dia.)
F
82.036 to 82.071 mm dia.
(3.2298 to 3.2311 in. dia.)
G 77 mm dia. (3.0315 in. dia.)
H 57 mm dia. (2.2441 in. dia.)
I 35 mm dia. (1.3780 in. dia.)
J 30 mm dia. (1.1811 in. dia.)
K 84 mm dia. (3.3071 in. dia.)
L 3.5 mm (0.1378 in.)
M 3 mm (0.1181 in.)
N 6.6 to 6.8 mm (0.2598 to 0.2677 in.)
O 8 mm (0.3150 in.)
P 67 mm dia. (2.6378 in. dia.)
Q
4 mm dia. (0.1575 in. dia.)
through hole
a Ra = 1.6 a
b 1.5 mm radius (0.0591 in. radius)
c Ra = 3.2 a
d 0.8 mm radius (0.0315 in. radius)
C0.3 Chamfer 0.5 mm (0.0197 in.)
C1 Chamfer 1.0 mm (0.0394 in.)
