Glow Plug Adapter
Application
• Use to check compression pressure through glow plug hole.
NOTE
• The following special tools are not provided, so make them referring to the figure.

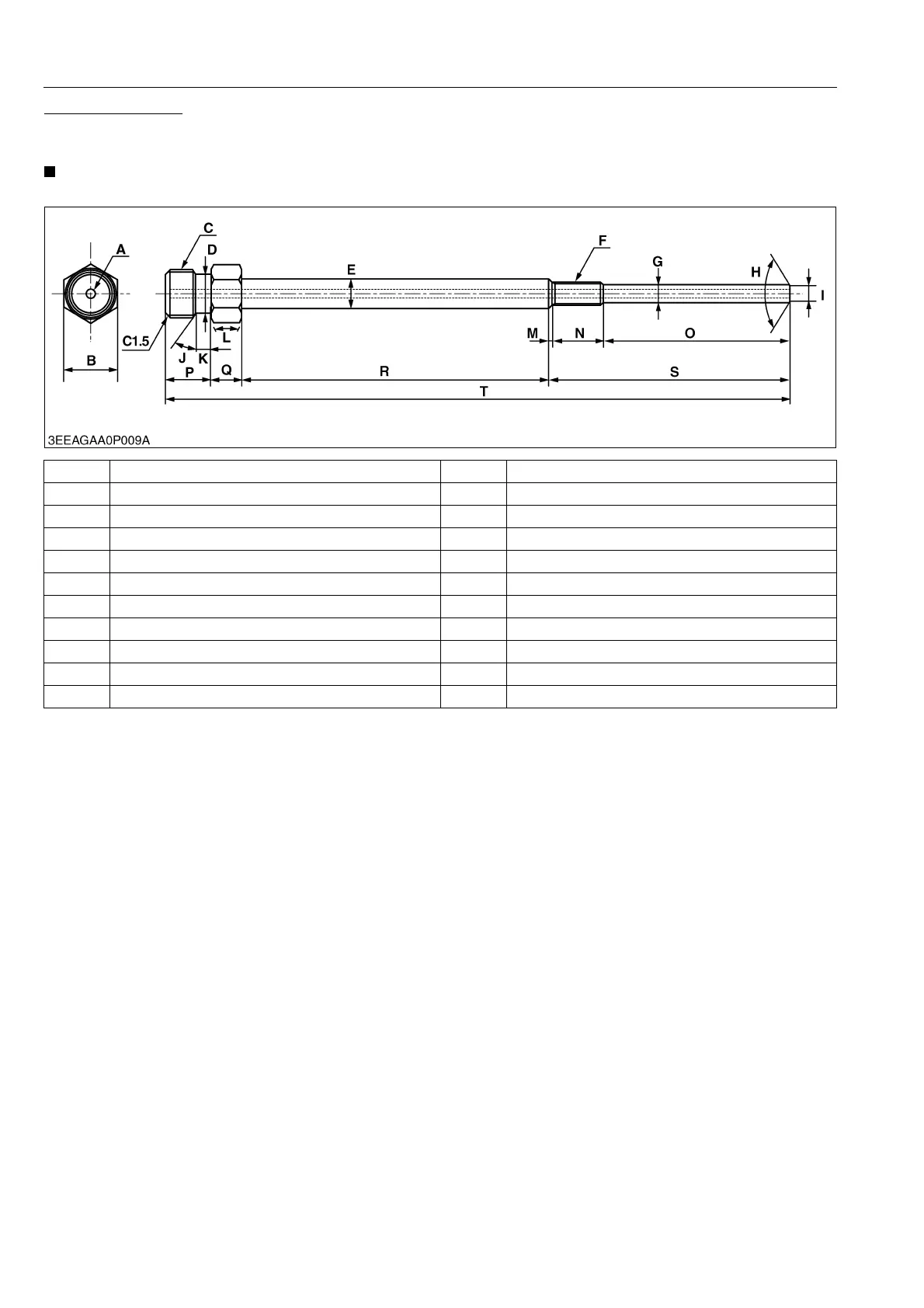

9Y1210143GEG0084US0
A 3 mm dia. (0.118 in. dia.) through hole L 1.047 rad (60 °)
B 17 mm (0.669 in.) M 1 mm (0.039 in.)
C 16 mm dia. (0.630 in. dia.) P0.5 N 17 mm (0.669 in.)
D 13 mm dia. (0.512 in. dia.) O 61.5 mm (2.421 in.)
E 9.5 mm dia. (0.374 in. dia.) P 15 mm (0.591 in.)
F M8 × 1.0 Q 10 mm (0.394 in.)
G 6.5 to 6.7 mm dia. (0.256 to 0.264 in. dia.) R 100 mm (3.937 in.)
H 2.144 to 2.147 rad (122.9 to 123.1 °) S 79.5 mm (3.130 in.)
I 4.9 to 5.5 mm dia. (0.193 to 0.217 in. dia.) T 204.5 mm (8.051 in.)
J 0.523 rad (30 °) C1.5 Chamfer 1.5 mm (0.059 in.)
K 5 mm (0.197 in.)
