Injection Pump Gear Puller
Application

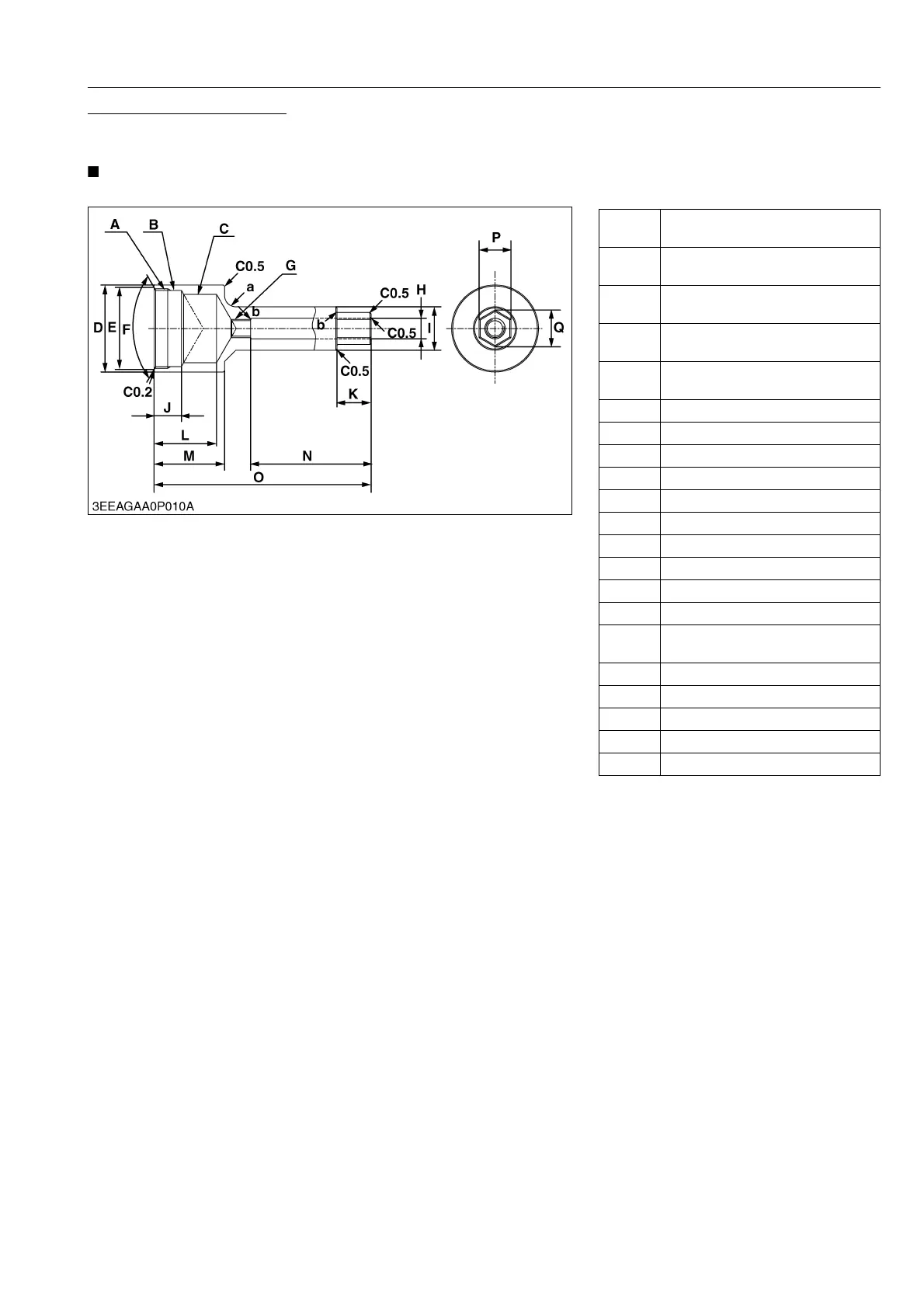

• Use for remove the injection pump gear from governor shaft.
NOTE
• The following special tools are not provided, so make them referring to the figure.
9Y1210143GEG0085US0
A
M35 × P1.5, 6 mm depth
(0.2362 in. depth)
B
35 mm dia., 12 mm depth
(1.3780 in. dia., 0.4724 in. depth)
C
30 mm dia., 27.5 mm depth
(1.1811 in. dia., 1.0827 in. depth)
D
40.0 to 40.2 mm dia.
(1.5748 to 1.5827 in. dia.)
E
35.9 to 36.1 mm dia.
(1.4134 to 1.4213 in. dia.)
F 2.256 rad (120 °)
G M8
H 9 mm dia. (0.3543 in. dia.)
I 19 mm dia. (0.7480 in. dia.)
J 12 mm (0.4724 in.)
K 15 mm (0.5906 in.)
L 27.5 mm (1.0827 in.)
M 31 mm (1.2205 in.)
N 57.5 mm (2.2638 in.)
O 100 mm (3.9370 in.)
P
3.75 to 4.00 mm
(0.1476 to 0.1575 in.)
Q 16.17 mm (0.6366 in.)
a 5 mm radius (0.1969 in. radius)
b 0.4 mm radius (0.0157 in. radius)
C0.2 Chamfer 0.2 mm (0.0079 in.)
C0.5 Chamfer 0.5 mm (0.0197 in.)
