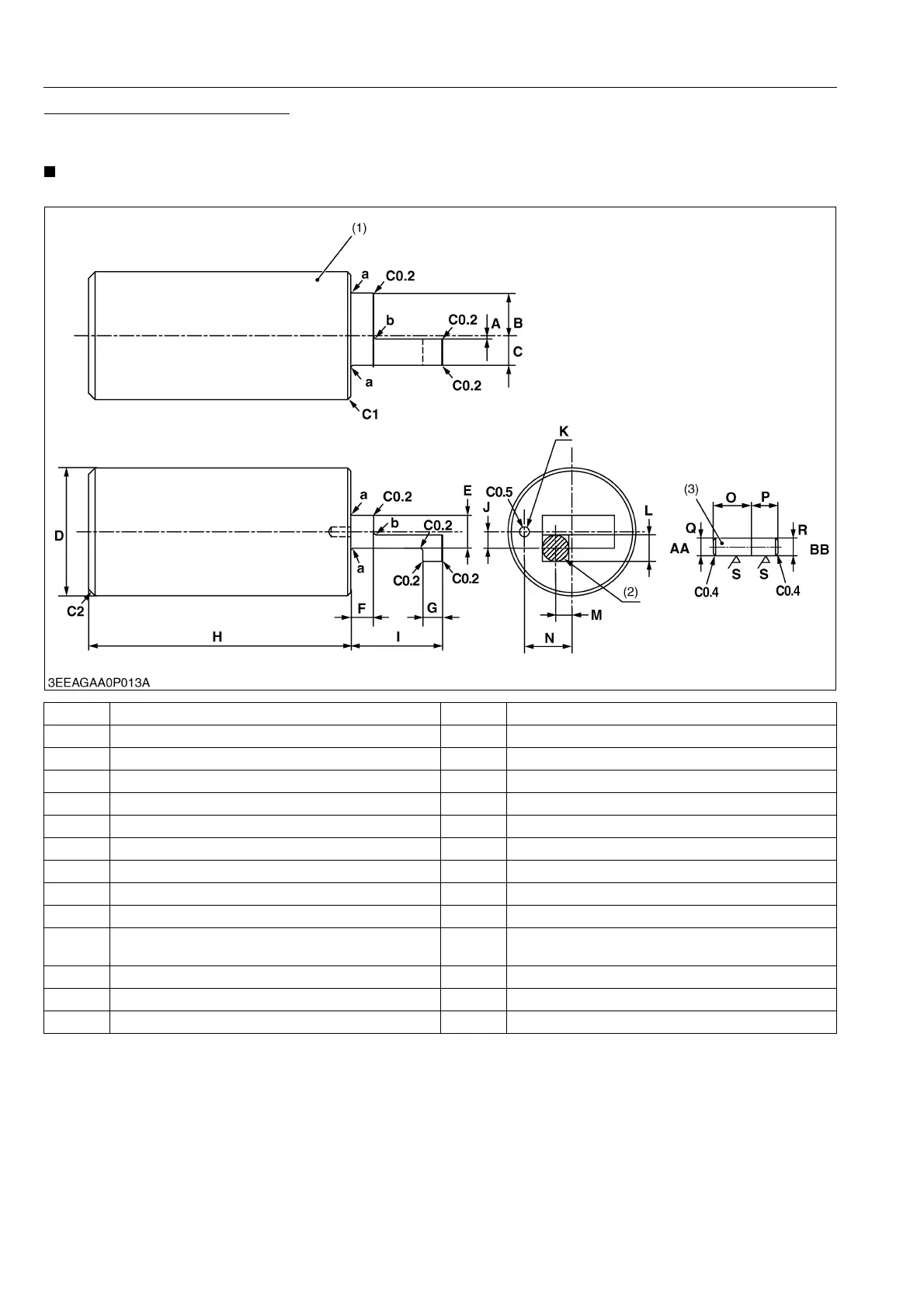

Jig for Governor Connecting Rod
Application
• Use for connecting the governor connecting rod to the rack pin of the fuel injection pump assembly.
NOTE
• The following special tools are not provided, so make them referring to the figure.
9Y1210143GEG0086US0
A 0.5 mm (0.0197 in.) O 5 mm (0.1969 in.)
B 12.7 to 13.0 mm (0.5000 to 0.5118 in.) P 4 mm (0.1575 in.)
C 8.7 to 9.0 mm (0.3425 to 0.3543 in.) Q 2.955 to 2.965 mm dia. (0.1163 to 0.1167 in. dia.)
D 39 mm (1.5354 in.) R 3.020 to 3.030 mm dia. (0.1189 to 0.1193 in. dia.)
E 10 mm (0.3937 in.) S Ra = 1.6 a
F 7 mm (0.2756 in.) AA Governor housing side
G 6 mm (0.2362 in.) BB Press in side
H 80 mm (3.1496 in.) a 0.6 mm radius (0.0236 in. radius)
I 27.95 to 28.05 mm (1.1004 to 1.1043 in.) b 1 mm radius (0.0394 in. radius)
J 5 mm (0.1969 in.) C0.2 Chamfer 0.2 mm (0.0079 in.)
K
3.00 to 3.01 mm dia., 6 mm depth
(0.1181 to 0.1185 in.dia., 0.2362 in. depth)
C0.4 Chamfer 0.4 mm (0.0157 in.)
L 9 mm (0.3543 in.) C0.5 Chamfer 0.5 mm (0.0197 in.)
M 5 mm (0.1969 in.) C1 Chamfer 1.0 mm (0.0394 in.)
N 14.45 to 14.55 mm (0.5689 to 0.5728 in.) C2 Chamfer 2.0 mm (0.0787 in.)
(1) Material: S43C-D (2) Permanent Magnet:
8 mm dia. (0.3150 in. dia.)
Thickness: 3 mm (0.1181 in.)
(3) Pin
