GENERAL
M6040, M7040, WSM
G-55

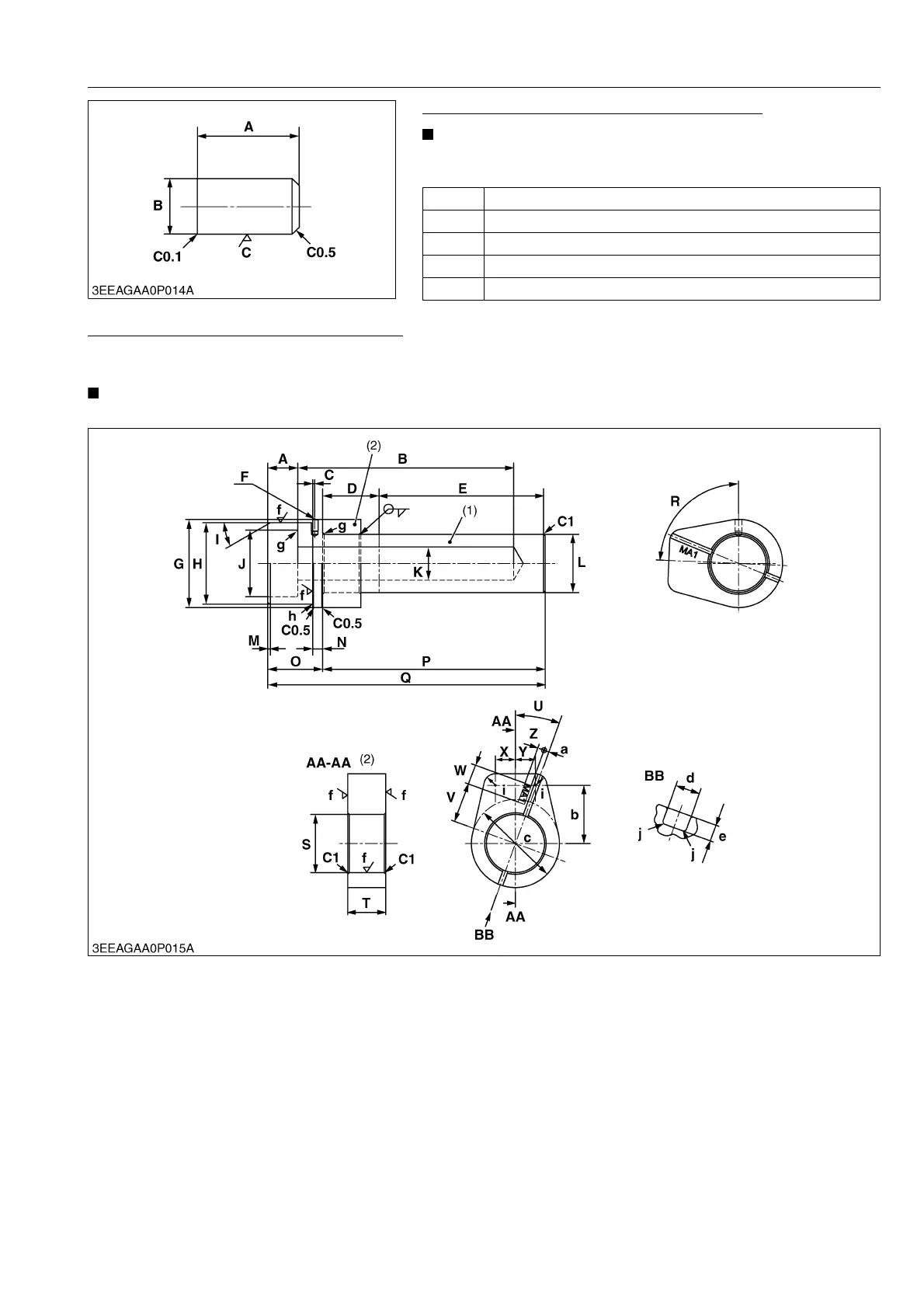

Pin for Balancer Shaft Bearing Replacing Tool
NOTE
• The following special tools are not provided, so make them
referring to the figure.
9Y1210143GEG0087US0
Balancer Shaft 1 Bearing A Replacing Tool
Application
• Use to press fit the bearing.
NOTE
• The following special tools are not provided, so make them referring to the figure.
(To be continued)
A 7.2 to 7.4 mm (0.283 to 0.291 in.)
B 4.0 mm dia. (0.158 in. dia.)
C Ra = 0.8 a
C0.1 Chamfer 0.1 mm (0.0039 in.)
C0.5 Chamfer 0.5 mm (0.0197 in.)
(1) Shaft (2) Stopper
KiSC issued 07, 2012 A
