GENERAL
M6040, M7040, WSM
G-60

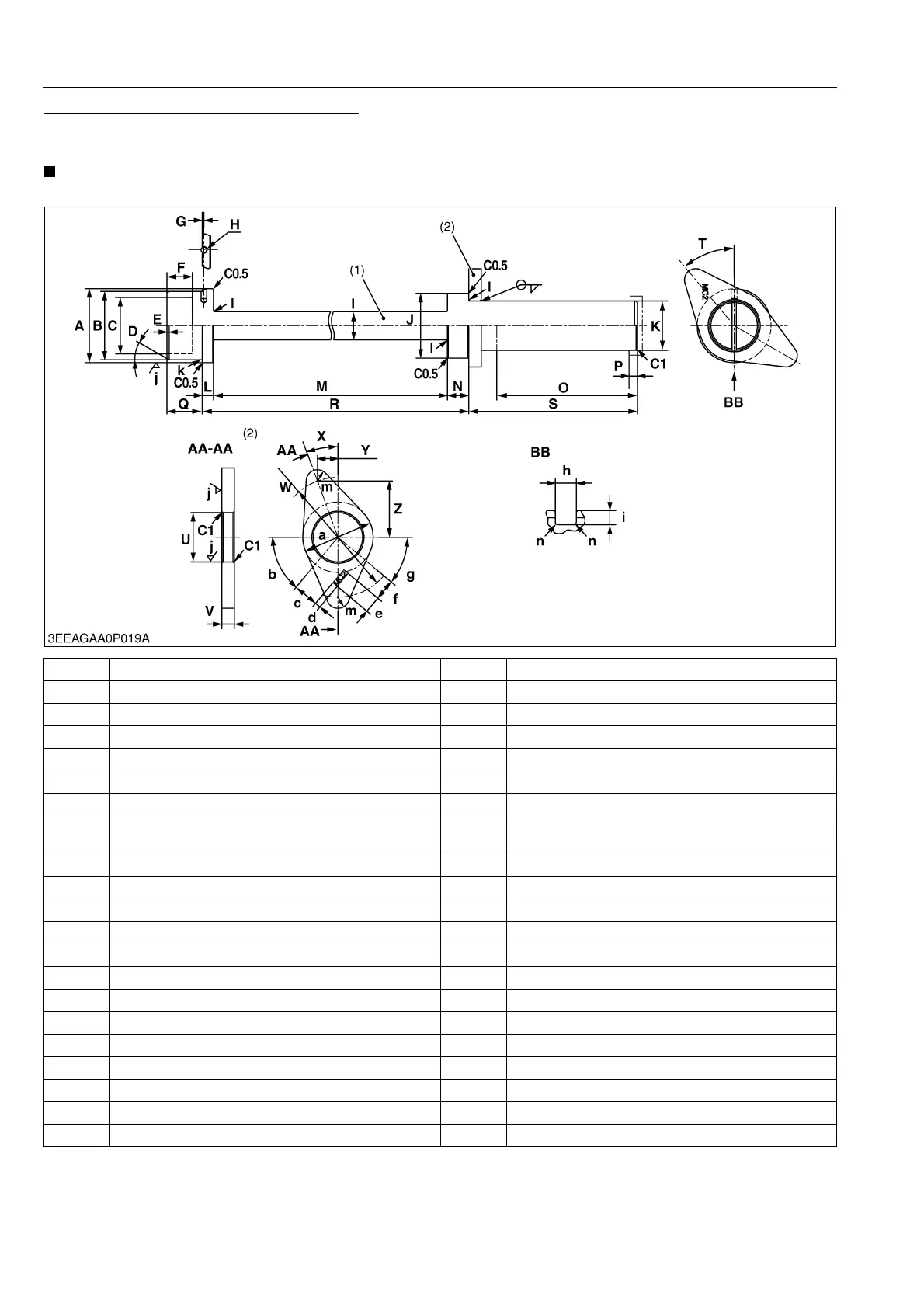

Balancer Shaft 2 Bearing C Replacing Tool
Application
• Use to press fit the bearing.
NOTE
• The following special tools are not provided, so make them referring to the figure.
9Y1210143GEG0092US0
A 52.5 mm dia. (2.0669 in. dia.) V 9 mm (0.3543 in.)
B 48.3 to 48.4 mm dia. (1.9016 to 1.9055 in.) W 84.5 to 85.5 mm (3.3268 to 3.3661 in.)
C 40 mm dia. (1.5748 in. dia.) X 0.349 rad (20 °)
D 0.523 rad (30 °) Y 14.54 mm (0.5724 in.)
E 1.5 mm (0.0591 in.) Z 39.94 mm (1.5724 in.)
F 18 mm (0.7087 in.) a 50 mm (1.9685 in.)
G 1.2 mm (0.0472 in.) b 0.872 rad (50 °)
H
4.000 to 4.018 mm dia., 7 mm depth
(0.1575 to 0.1582 in. dia., 0.2756 in. depth)
c 18 mm (0.7087 in.)
I 20 mm dia. (0.7874 in. dia.) d 4 mm (0.1575 in.)
J 46 mm dia. (1.8110 in. dia.) e 12 mm (0.4724 in.)
K 34.9 to 35.0 mm dia. (1.3740 to 1.3780 in. dia.) f 15 mm (0.5906 in.)
L 8 mm (0.3150 in.) g 0.698 rad (40 °)
M 199.5 mm (7.8543 in.) h 3 mm (0.1181 in.)
N 15 mm (0.5906 in.) i 2 mm (0.0787 in.)
O 100 mm (3.9370 in.) j Ra = 3.2 a
P 6 mm (0.2362 in.) k 0.2 mm radius (0.0079 in. radius)
Q 25 mm (0.9843 in.) l 0.8 mm radius (0.0315 in. radius)
R 222.0 to 223.0 mm (8.7402 to 8.7795 in.) m 8.0 mm radius (0.3150 in. radius)
S 120 mm (4.7244 in.) n 0.4 mm radius (0.0157 in. radius)
T 0.698 rad (40 °) C0.5 Chamfer 0.5 mm (0.0197 in.)
U 35 mm dia. (1.3780 in.) C1 Chamfer 1.0 mm (0.0394 in.)
(1) Shaft (2) Stopper
