Stopper Magnet Clutch (For A/C Compressor)
Application
• Use to loosen and tighten the magnet clutch mounting nut. (Use radius M)
NOTE

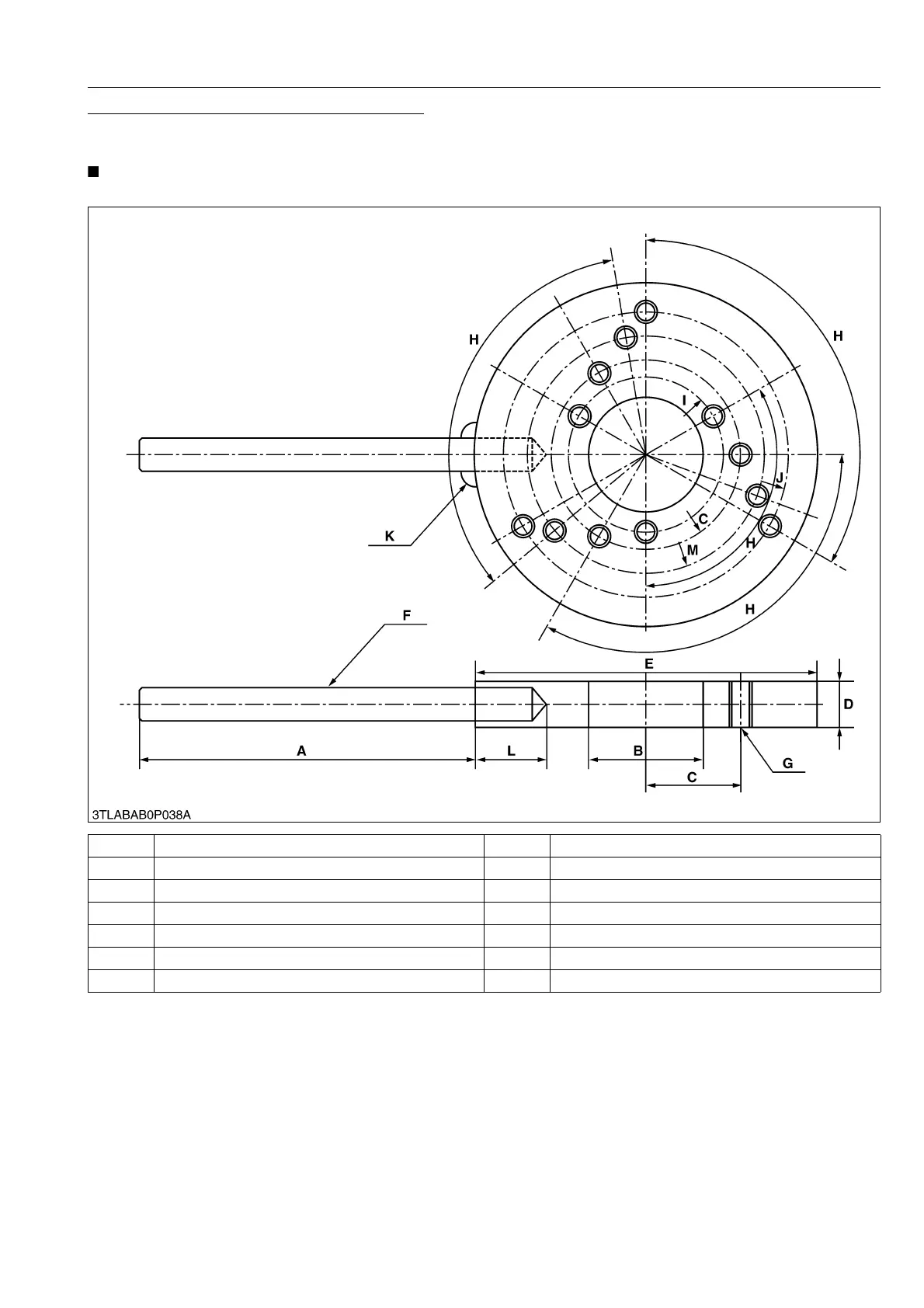

• The following special tools are not provided, make them referring to the figure.
9Y1210143GEG0111US0
A 125 mm (4.92 in.) H 4.52 rad (120 °)
B 40 mm dia. (1.57 in. dia.) I Radius 27 mm (Radius 1.06 in.)
C Radius 33 mm (Radius 1.30 in.) J Radius 50 mm (Radius 1.97 in.)
D 16 mm (0.63 in.) K Weld all around
E 120 mm dia. (4.72 in. dia.) L 20 mm (0.78 in.)
F 12 mm dia. (0.47 in. dia.) M Radius 41 mm (Radius 1.61 in.)
G 3 × M8 × 1.25 All screws
