GENERAL
M6040, M7040, WSM
G-78

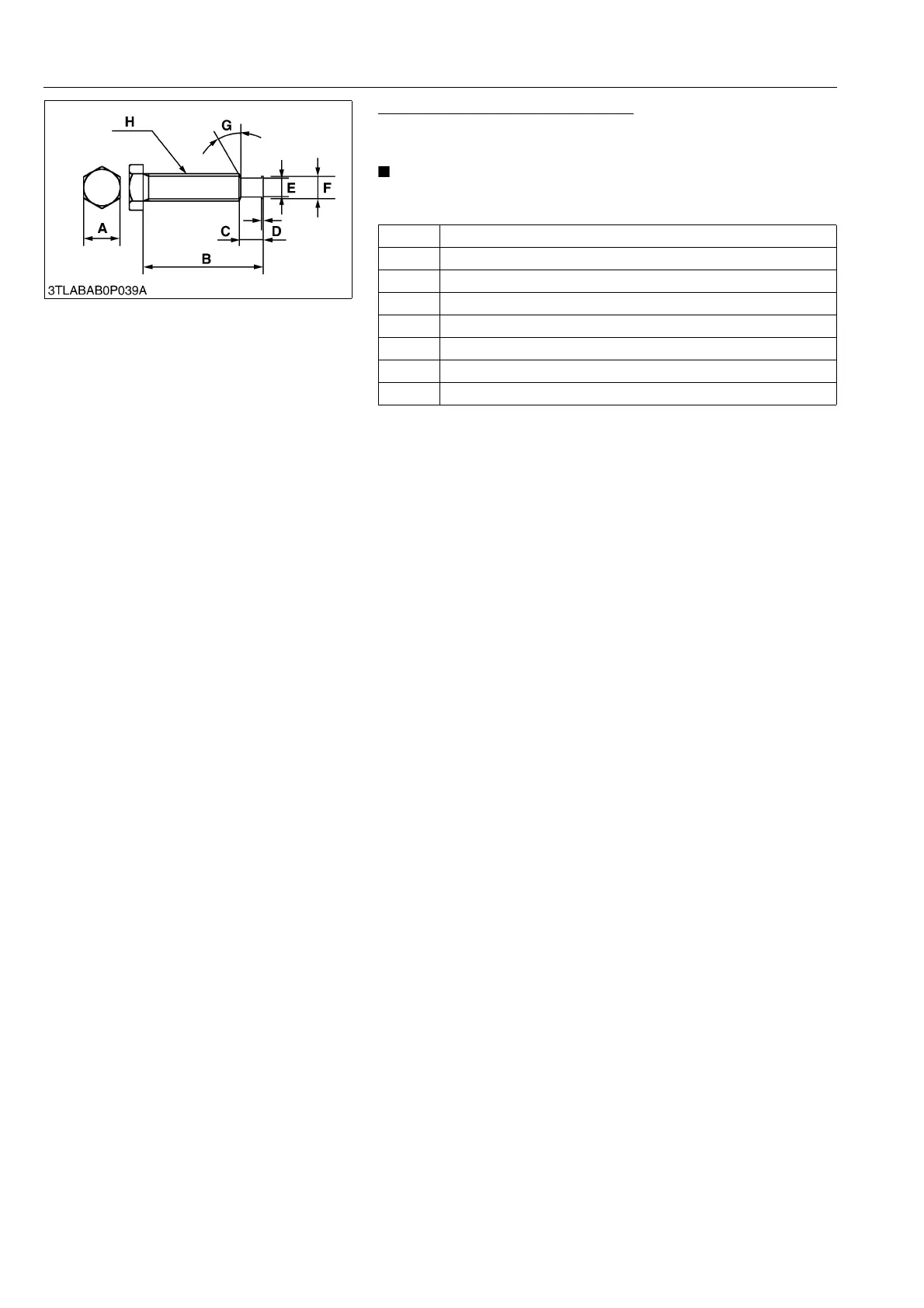

Stopper Bolt (for A/C Compressor)
Application
• Use with the stopper magnet clutch.
NOTE
• The following special tools are not provided, make them
referring to the figure.
9Y1210143GEG0112US0
A 12 mm (0.47 in.)
B 35 mm (1.38 in.)
C 7 mm (0.28 in.)
D 0.4 mm (0.016 in.)
E 5.5 mm dia. (0.22 in. dia.)
F 6.5 mm dia. (0.26 in. dia.)
G 0.52 rad (30 °)
H M8 × P1.25
