Cisco MDS 9000 Series Configuration Guide

To add or remove ports from a zone and to zone only the devices within a specific VSAN using Device
Manager on the Cisco MDS 9124 Switch, follow these steps:
Step 1 Choose FC > Quick Config or click the Zone icon in the toolbar.
You see the Quick Config Wizard (see Figure 8: Quick Config Wizard, on page 43) with all controls disabled and the
Discrepancies dialog box (see Figure 7: Discrepancies Dialog Box, on page 42), which shows all unsupported
configurations.
You will see the Discrepancies dialog box only if there are any discrepancies.
Note

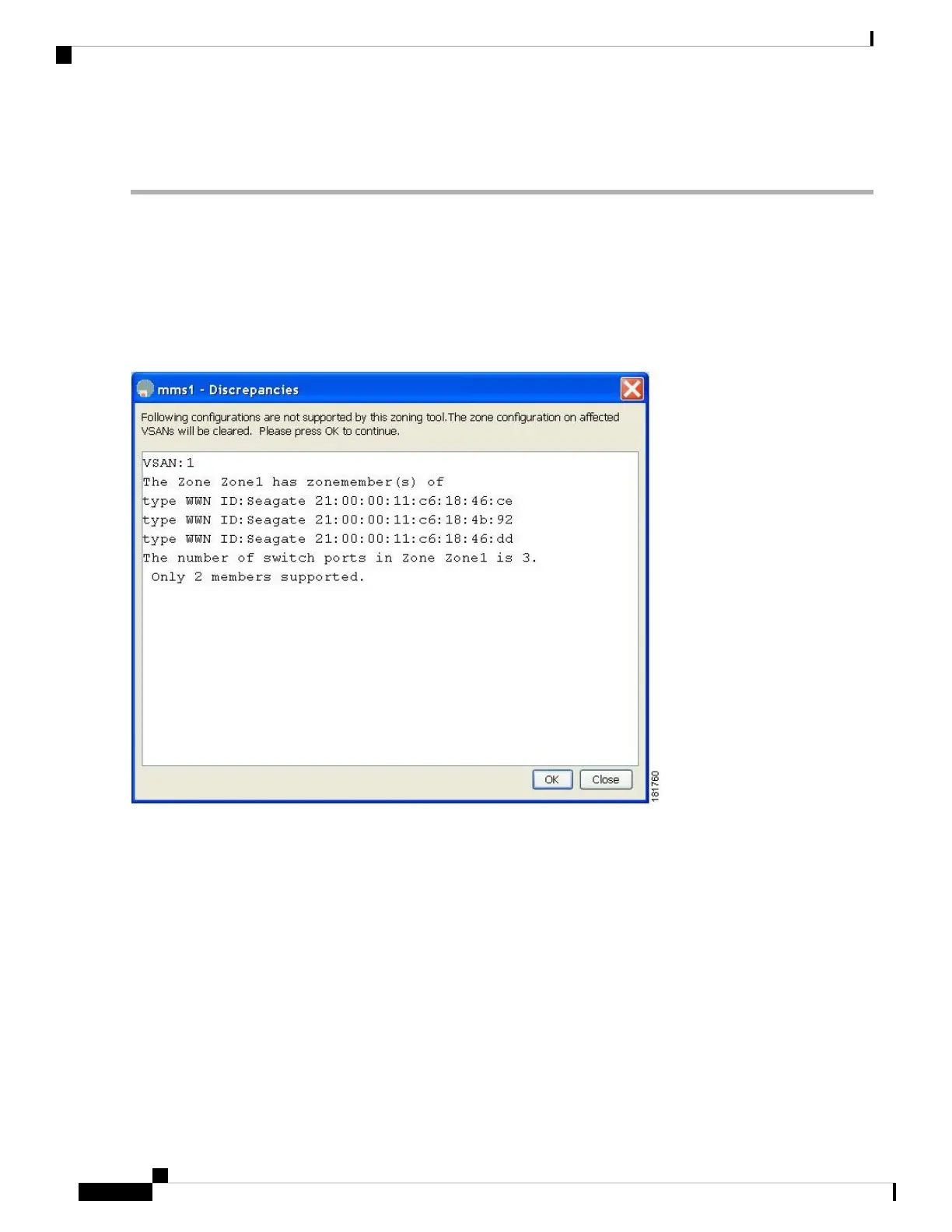

Figure 7: Discrepancies Dialog Box
Step 2 Click OK to continue.
You see the Quick Config Wizard dialog box (see Figure 8: Quick Config Wizard, on page 43).
Cisco MDS 9000 Series Fabric Configuration Guide, Release 8.x
42
Configuring and Managing Zones
Using the Quick Config Wizard

Cisco MDS 9000 Series Specifications

General

Category	Switch
Operating System	Cisco NX-OS
Ports	Varies by model
Protocols	Fibre Channel (FC), Fibre Channel over IP (FCIP), iSCSI
Redundancy	Redundant supervisors, power supplies, and fans
Management	Cisco Data Center Network Manager (DCNM), CLI, SNMP
Virtualization Support	VSANs (Virtual SANs)
Security Features	Fibre Channel Security Protocol (FC-SP)
Hot Swappable Components	power supplies, fans
Power Supply Options	AC and DC options available
