Figure 12: Zone Icon
You see the Select VSAN dialog box.
Step 2 Select the VSAN where you want to create a zone and click OK.
switch(config)# callhome
You see the Edit Local Full Zone Database dialog box (see Figure 13: Edit Local Full Zone Database Dialog Box, on
page 57).

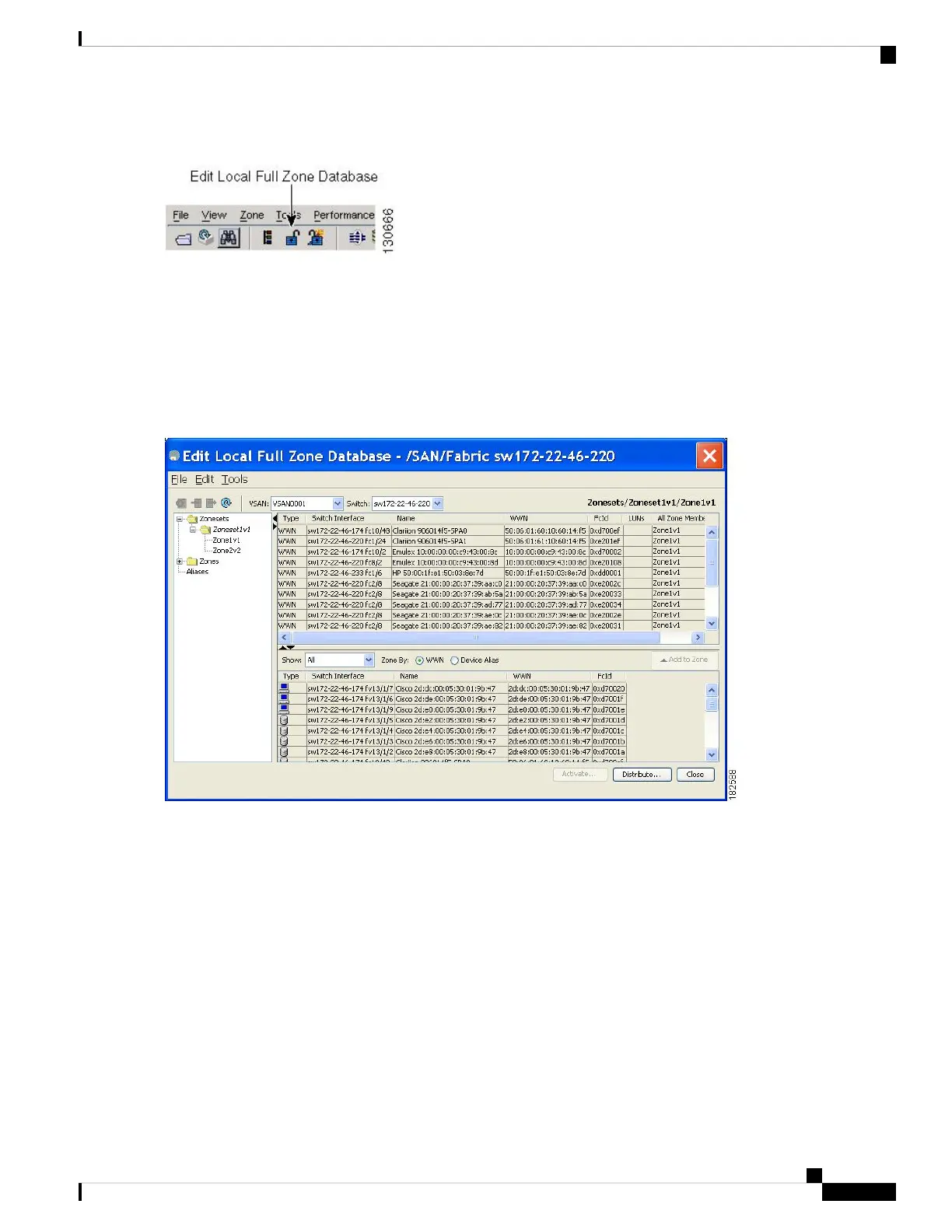

Figure 13: Edit Local Full Zone Database Dialog Box
If you want to view zone membership information, right-click in the All Zone Membership(s) column, and then click
Show Details for the current row or all rows from the pop-up menu.
Step 3 Click Zones in the left pane and click the Insert icon to create a zone.
You see the Create Zone dialog box (see Figure 14: Create Zone Dialog Box, on page 58).
Cisco MDS 9000 Series Fabric Configuration Guide, Release 8.x
57
Configuring and Managing Zones
Configuring a Zone Using the Zone Configuration Tool
