C
HAPTER
5
| Monitoring the Switch
Displaying Information About Ports
– 151 –
◆ Receive Packets – The number of management packets received.
◆ Allow Packets – The number of management packets accepted.
◆ Discard Packets – The number of management packets discarded.
WEB INTERFACE
To display the information on management packets, click Monitor, System,
Access Management Statistics.

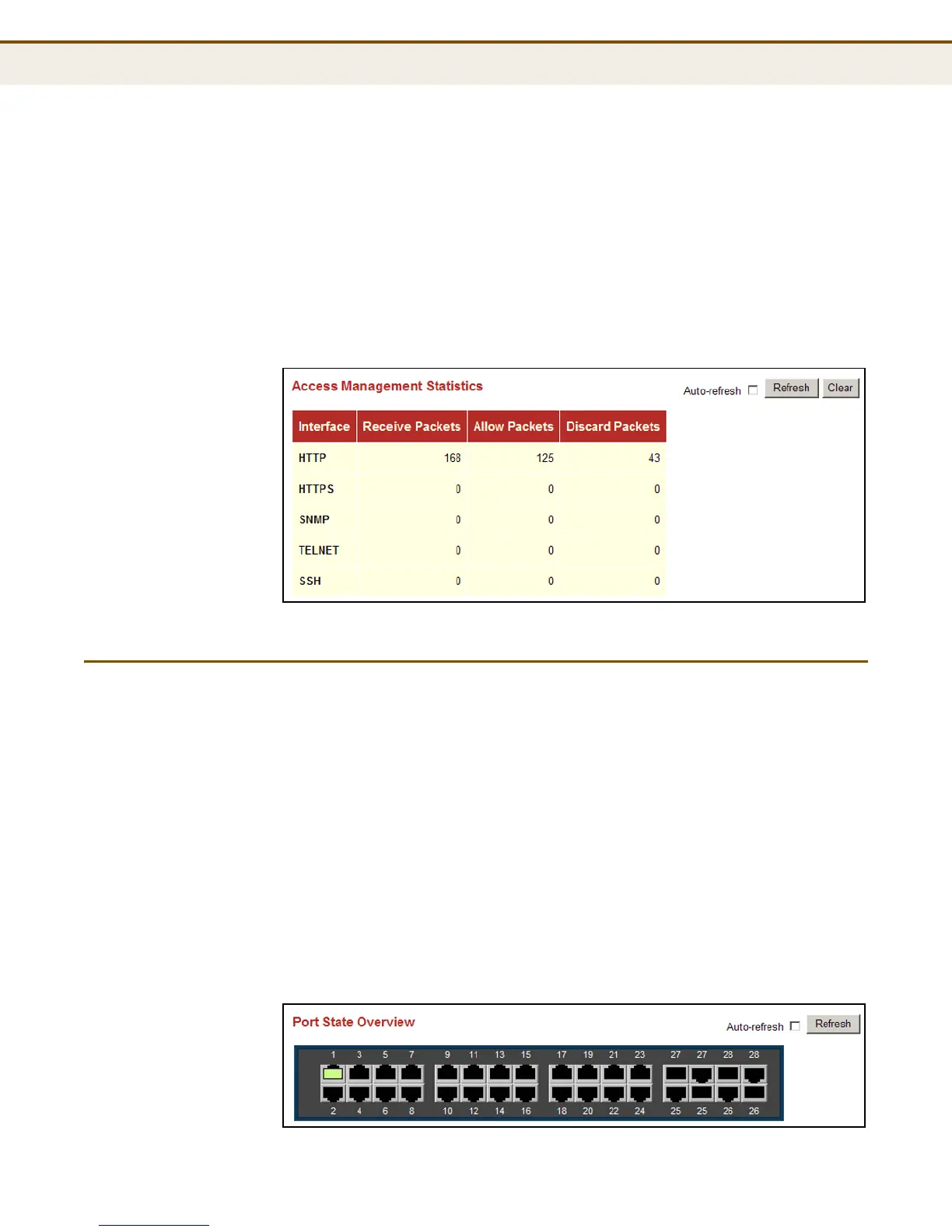

Figure 45: Access Management Statistics
DISPLAYING INFORMATION ABOUT PORTS
You can use the Monitor/Port menu to display a graphic image of the front
panel which indicates the connection status of each port, basic statistics on
the traffic crossing each port, the number of packets processed by each
service queue, or detailed statistics on port traffic.
DISPLAYING PORT
STATUS ON THE
FRONT PANEL
Use the Port State Overview page to display an image of the switch's ports.
Clicking on the image of a port opens the Detailed Port Statistics page as
described on page 154.
WEB INTERFACE
To display an image of the switch's ports, click Monitor, Ports, State.
Figure 46: Port State Overview
