C
HAPTER
5
| Monitoring the Switch
Displaying Information on LACP
– 164 –
â–
No - LACP is not enabled or the port link is down.
â–
Backup - The port could not join the aggregation group but will join
if other port leaves. Meanwhile it's LACP status is disabled.
â—† Key - Current operational value of the key for the aggregation port.
Note that only ports with the same key can aggregate together.
â—† Aggr ID - The Aggregation ID assigned to this LAG.
â—† Partner System ID - LAG partner's system ID assigned by the LACP
protocol (i.e., its MAC address).
â—† Partner Port - The partner port connected to this local port.
WEB INTERFACE
To display LACP status for local ports this switch, click Monitor, LACP, Port
Status.

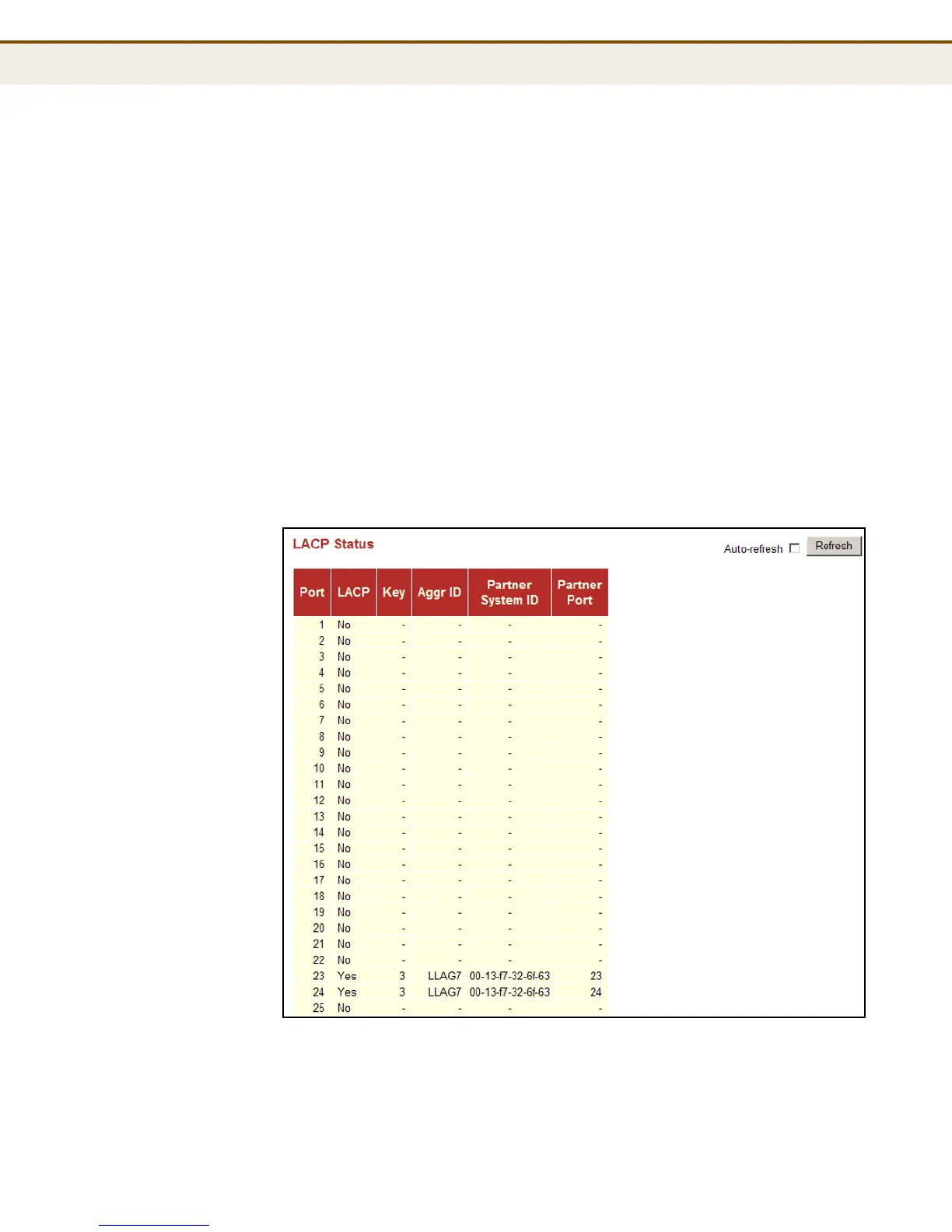

Figure 53: LACP Port Status
