ENG OUT CRZ 2/5
Press [VNAV], <ENGINE OUT> (When VNAV flight phase is Cruise and Engine Out is inactive)
Press [VNAV] (When VNAV flight phase is Cruise and Engine Out is active)
Notes:
• When the Engine Out page is accessed, while no E/O mode is active, the EXEC key illuminates and MOD is
displayed on the title page. This allows the pilot to confirm the selection of an FMS engine out mode.
• This page cannot be accessed from the CRZ page when the active mode is either Climb or
Descent/Approach.
A. E/O Driftdown is active when the flight plan is being modified
B. The Engine Out drift down is active, one engine out LRC speed target has been selected and EXEC key
has been pressed.
1R
2R
3R
4R
5R
6R
M
O

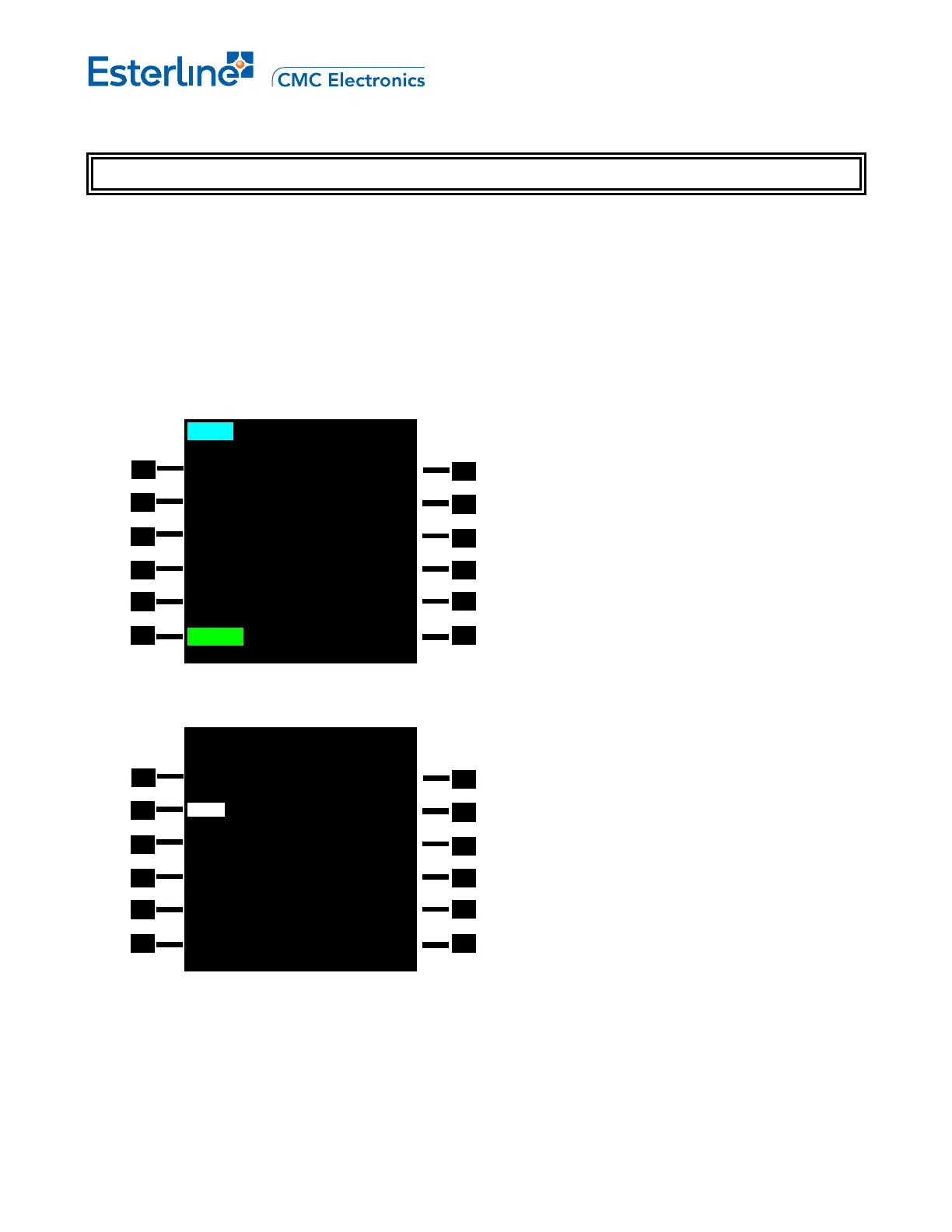

D E/O DD 2/5
CRZ ALT G-DOT CEIL
FL350 FL290
ING
G-DOT SPD LRC CEILING
240 FL270
DRIFT DOWN
1L
00+16.5/
50NM
DD FUEL
1136
KG
<SCHED
<ERASE
2L
3L
4L
5L
6L
ACT E/O DD 2/5
CRZ ALT G-DOT CEILING
FL270 FL290
LRC SPD LRC CEILING
1L
1R
2R
3R
4R
5R
6R
260 FL270
DRIFT DOWN
00+16.5/ 50
NM
DD FUEL
<CANCEL E/O 1136KG
<SCHED
PROFILE>
2L
3L
4L
5L
6L
