Section 4: Tutorial
4 - 30 Euphonix CS3000/2000 Operation Manual

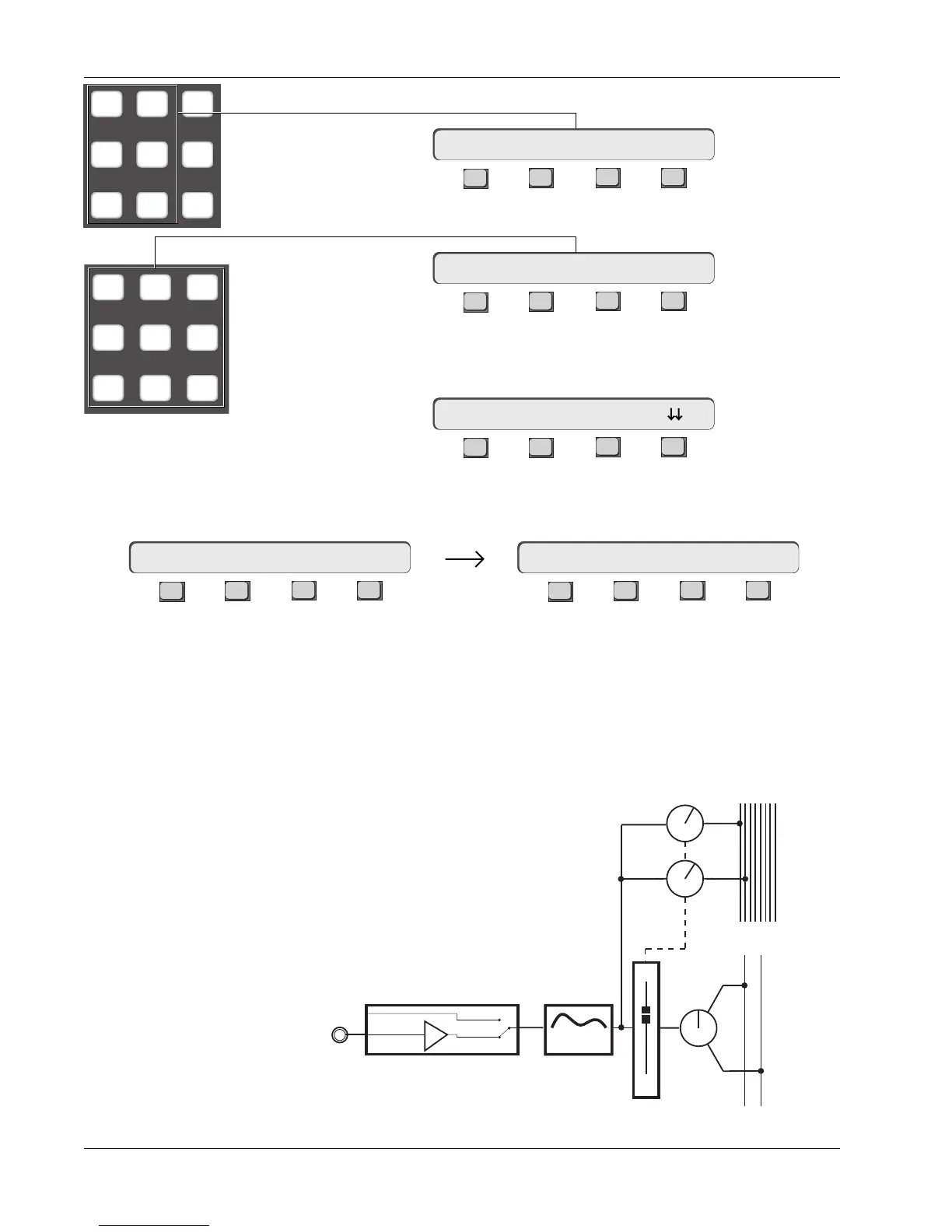

Press the DSC [L4] key to directly assign the aux source routing:
F3F1 F2 F4
Press the DSC keypad [1] key to directly assign the aux send to aux bus 1:
F3F1 F2 F4
Press the DSC [right arrow] key to direct attention to aux send B. Confirm
that B is now displayed in the SmartDisplay menu:
F3F1 F2 F4
As before, press the [L4] key to directly assign the aux source routing and then
press the DSC keypad [2] key to directly assign aux send B to aux bus 2:
16A-> BUS 1
16A-> L4<-p. .
Aux Source Menu
M1 M2 DIR
L1 L2 ST1
L3 L4 ST2
16B-> ON pre
Aux Assign Menu
789
456
123
LF
L4
4 Band EQ
STEREO 1 BUS
L R
PAN
Line Input 4
BUS
Aux B
Aux A
AUX BUS
1 - 8
Link
Mono Independent
Post Lower Fader
This concludes Exercise 5.
Press channel 16’s aux C/D block attention key to display the aux menu. As
before, confirm that C is now displayed in the SmartDisplay menu.
Repeat the previous steps for aux sends C and D. Once completed, you can
verify routing by feeding a test tone to L4 and trying the aux sends. Be sure the
aux bus master controls are turned up and unmuted. Here is a typical signal
flow diagram for Aux sends A and B:
F3F1 F2 F4
16B-> L4<-p. .
F3F1 F2 F4
16B-> BUS 2
