Euphonix CS3000 - Block Copy; Construct Signal Path; Copy One Setting

Section 4: Tutorial
Euphonix CS3000/2000 Operation Manual 4 - 23
Next we will do a block copy of channel 1’s lower fader routing and mode into
channel 2 through 24. Press channel 1’s lower fader block key and then [F1]:
Press channel 1’s lower fader block key. Select [L4] as its source, [ST1] as its
assignment and the mode to #5 (Mono Pan). The button sequence is:
1. Press Ch 1 [LF block key] and go to the Master Control Panel.
2. Press [L4] Dedicated Key (sources the fader from L4 input).
3. Press [ST1] Dedicated Key (sends the fader to Stereo bus 1).
4. Select Mode 5 (Mono Pan) using the SpinKnob or DSC keypad.

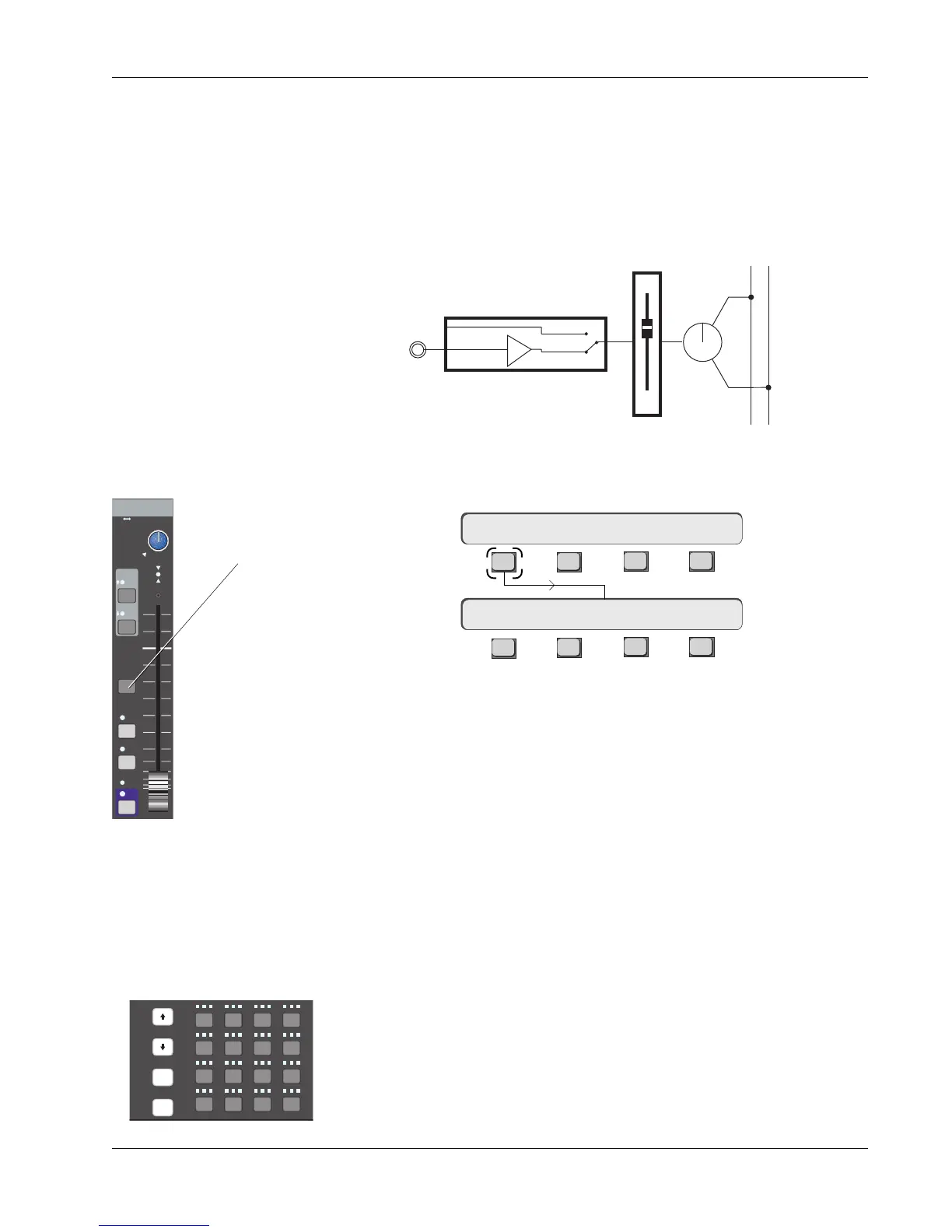

The signal flow now looks like this:
Copy One Setting
Construct Signal Path
Block Copy
LF
L4
STEREO 1 BUS
L R
PAN
Line Input 4
BUS
Press the lower fader block key on channels 2-24 successively.
Remember that the copy function will time out after 10 seconds if no block
keys are pressed, so don’t hesitate too long after you engage the copy func-
tion. If the copy function does time out before your finished copying, you will
need to press [F1] again to re-engage. After the last channel is copied, either
wait for the Copy mode to time out or press the DSC [Esc] key to cancel copy.
To copy just one setting within a block, first go to that menu in the SmartDis-
play before copying. For example, to copy just the mode setting, first press
channel 1’s lower fader block attention key. Then press [F3] to select the Mode
menu (it should be in #5, MnPan mode). Now press [F1]. The display shows
that only the mode setting will be copied. Pressing another channel’s block
attention key will copy only the mode across. Basically, whatever is shown in
the right side of the SmartDisplay in Copy mode will be copied across giving
absolute control over what is copied from one block or channel to another.
As a convenient alternative, you can use the DSC’s Channel/Route Select keys
to direct attention and carry out your copy operations.
