Euphonix CS3000 - Exercise 8; Stereo Balance Mode

Section 4: Tutorial
Euphonix CS3000/2000 Operation Manual 4 - 35

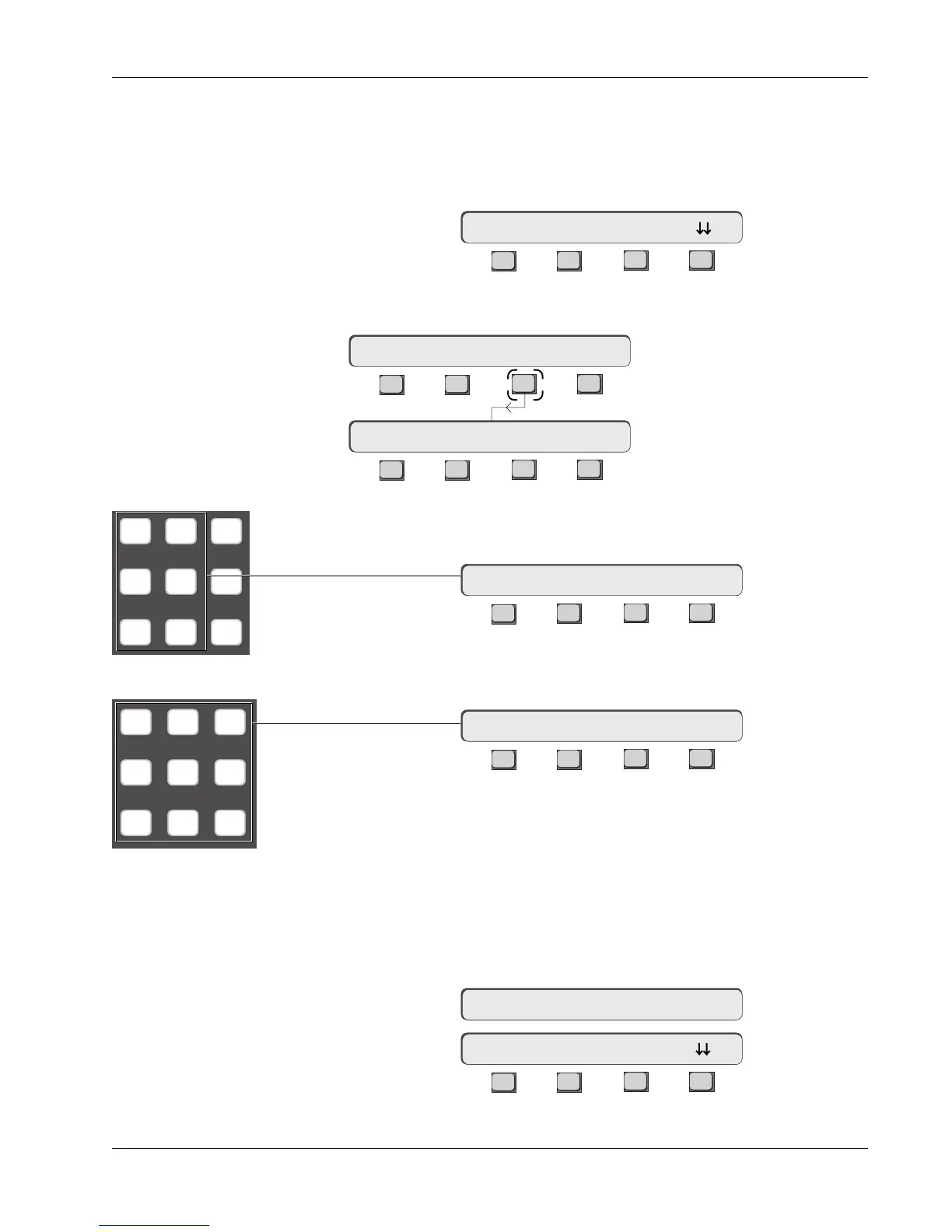

The most commonly used stereo mode is Stereo Balance mode. Press the
DSC [L3] & [L4] key to directly assign the aux source routing:
F3F1 F2 F4
Press the DSC keypad [1] & [2] keys to directly assign the aux send to aux bus
1 & 2:
F3F1 F2 F4
As with the mono in/stereo out modes, the aux A (C) pot becomes the pan
control and the aux B (D) pot becomes the level control. The aux send is now
ready for use.
Whenever a stereo-in mode has been selected, an asterisk appears in the
SmartDisplay menu to remind you that stereo mode has been selected. To
verify this, press the [Esc] key to backup to the Aux Config menu and/or press
the aux send A block attention key to view the Aux Status menu:
F3F1 F2 F4
This concludes Exercise 8.
In this exercise, we will setup channel 16’s aux send A & B as a stereo in/
stereo out level and pan feed.
Press channel 16’s aux A/B block attention key to display the Aux Status menu
and confirm that console attention is directed to aux send A:
F3F1 F2 F4
Press the [*ST] key and then [F3] (Yes) to change to stereo linked mode:
Exercise 8
Stereo Balance mode
16A-> ON pre
F3F1 F2 F4
F3F1 F2 F4
16AB->
*
Stereo Bal Ind?
AB Stereo Aux ? Yes [No]
16AB-> L3 L4<-p. .
16AB-> * SRC MODE ASGN
Aux Config Menu
Aux Status menu
16AB-> BUS 1 2
16AB-> * ON pre
789
456
123
M1 M2 DIR
L1 L2 ST1
L3 L4 ST2
